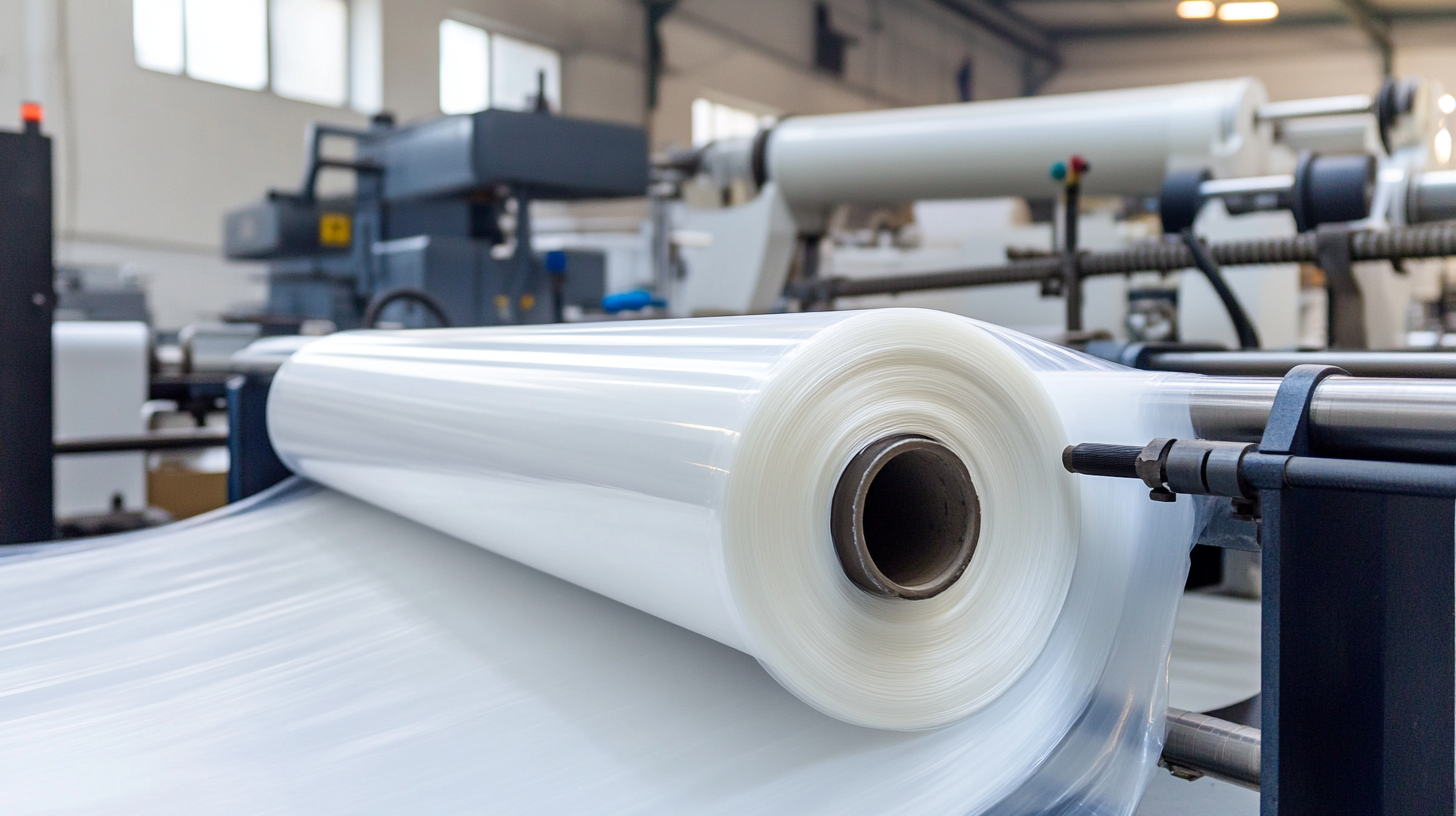

Film manufacturing is a continuous production process in which materials move through multiple stages at high speed. Plastic films, packaging films, optical films, protective films, battery separator films, and other web materials may need to be inspected continuously to maintain consistent quality throughout the production process.

Unlike discrete products that can be positioned in front of a camera and captured as individual images, film is usually produced and transported as a continuous web. This creates a different machine vision challenge. The inspection system must continuously capture the material surface while keeping up with production speed, maintaining consistent image quality across the entire film width, and detecting small defects that may affect downstream processing or final product quality.

Common film defects include scratches, pinholes, particles, wrinkles, coating irregularities, streaks, contamination, bubbles, tears, and other surface abnormalities. Depending on the film type and manufacturing process, some defects may be extremely small or may have only a subtle contrast difference from the surrounding material.

For these applications, line scan cameras provide a practical imaging solution. Instead of capturing complete two-dimensional frames, a line scan camera captures one line of image data at a time. As the film moves through the inspection area, consecutive lines are combined to reconstruct a continuous two-dimensional image of the material. This operating principle makes line scan cameras particularly suitable for continuous film inspection, roll-to-roll manufacturing, web inspection, and high-speed surface defect detection.

MindVision provides a range of line scan camera solutions for continuous industrial inspection, including high-resolution, high-line-rate, GigE, and TDI line scan options. Current MindVision line scan products are designed for applications including web inspection, battery foil inspection, printing inspection, surface defect detection, sorting, and precision measurement.

1. Why Is Film Inspection Challenging?

Film inspection may appear straightforward because the inspection target is usually a relatively flat surface. In actual production environments, however, several factors make automated inspection difficult.

1.1 Continuous High-Speed Movement

Film production lines can operate continuously for long periods. The material does not stop for individual inspections. The camera therefore needs to acquire image data continuously and synchronously with material movement. If the image acquisition speed is too low, the inspection system may experience missing image information. If the synchronization between camera and material movement is incorrect, the reconstructed image may appear stretched or compressed. For this reason, line rate is one of the most important parameters in film inspection.

1.2 Large Inspection Width

Film can be produced in relatively wide rolls. A single inspection system may therefore need to cover a large width while still maintaining sufficient spatial resolution. Increasing the field of view generally reduces the object-side pixel resolution if the camera resolution remains unchanged. Therefore, film inspection systems need to balance: film width, minimum defect size, camera resolution, lens selection, working distance, line rate, and lighting uniformity.

1.3 Small and Low-Contrast Defects

Not every defect creates a strong visual difference. A large tear may be easy to detect, while a small scratch, coating variation, particle, or pinhole may produce only a subtle change in image intensity. This means that simply increasing camera resolution does not always solve the inspection problem. The complete imaging system must be considered, including the camera, lens, lighting, motion synchronization, exposure, and image-processing algorithm.

2. Why Are Line Scan Cameras Suitable for Film Inspection?

The fundamental advantage of line scan imaging is that it matches the physical characteristics of continuous web materials. A line scan camera observes the film one line at a time. When the material moves, each line corresponds to a different position on the film. The system can therefore build a continuous image of the entire film surface.

This approach offers several advantages:

• Continuous Surface Inspection – Unlike a conventional area scan system, which captures a fixed field of view frame by frame, a line scan system can continuously inspect an extended material surface. This makes it suitable for plastic film, packaging film, optical film, protective film, battery separator film, printed film, and coated film.
• High-Speed Production – Line scan cameras measure image acquisition speed using line frequency rather than conventional frame rate. For a moving material, the required line rate depends on: Line Rate = Material Speed ÷ Object-Side Pixel Size. For example, if a film moves at 2,000 mm/s and the required object-side resolution is 0.05 mm/pixel: 2,000 ÷ 0.05 = 40,000 lines/s. The required line rate would therefore be approximately 40 kHz. In practical applications, an additional margin should be considered because production speed may fluctuate and system synchronization is not always ideal.

MindVision's current line scan portfolio includes models ranging from conventional industrial line scan cameras to high-speed and TDI solutions. The product range reaches up to 250K line frequency and up to 16K resolution for demanding industrial inspection applications.

3. What Film Defects Can Line Scan Cameras Detect?

The exact defects that can be detected depend on the film material, defect characteristics, optical contrast, lighting configuration, camera resolution, and image-processing method. However, line scan machine vision systems can commonly be used to inspect several categories of film defects.

• Scratches – May occur during film transportation, coating, winding, slitting, or contact with mechanical components. Depending on the scratch direction and surface properties, dark-field or directional lighting can help increase contrast.
• Pinholes – Small openings or discontinuities in a film. For transparent or semi-transparent films, transmitted lighting can sometimes create stronger contrast between the defect and the surrounding material.
• Particles and Contamination – Foreign particles can appear on or inside the film and may affect appearance or downstream processing. The inspection system can identify abnormal bright or dark regions depending on the lighting configuration.
• Wrinkles – Wrinkles can change the local geometry of the film surface. Low-angle or grazing illumination can sometimes emphasize the shadow and reflection differences caused by wrinkles.
• Coating Defects – Coated films may require inspection for uneven coating, coating gaps, streaks, local contamination, and surface irregularities. For these applications, uniform lighting is particularly important.
• Bubbles and Voids – In laminated or coated films, bubbles and voids can produce local differences in transmission or reflection. The imaging configuration should be selected according to the structure and optical properties of the material.
• Printing Defects – For printed films, machine vision can also be used for missing print, printing defects, registration errors, color differences, streaks, and smudges. Color line scan cameras can be considered when color information is important. MindVision currently offers color and monochrome line scan options, including the MV-GELM44C color line scan model.

4. Film Inspection Applications for Different Types of Film

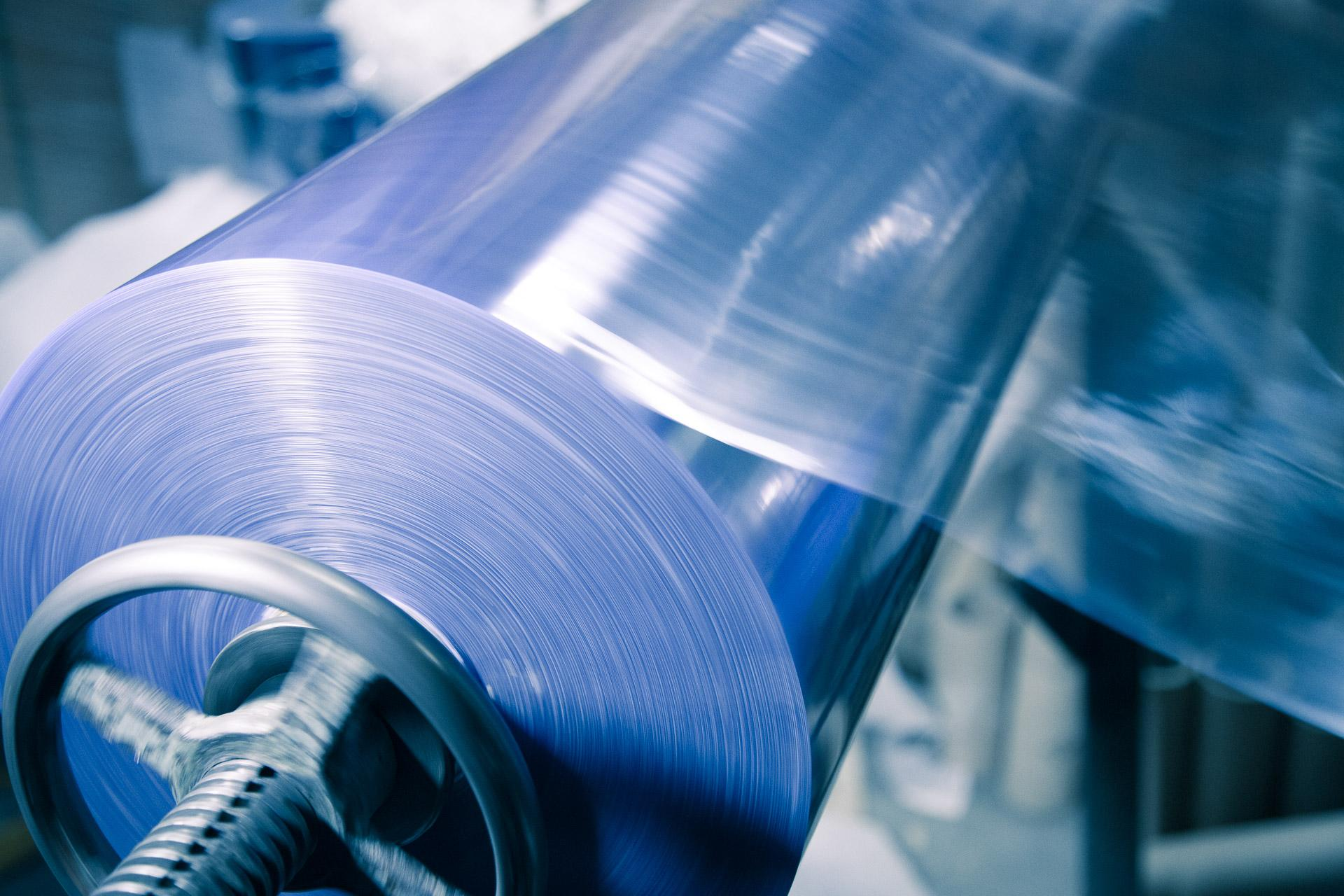

4.1 Plastic Film Inspection

Plastic film is one of the most common applications for continuous web inspection. Depending on the manufacturing process, manufacturers may need to detect surface contamination, scratches, bubbles, thickness-related appearance variations, coating defects, or foreign materials. For transparent plastic films, the optical configuration becomes particularly important. A defect that is almost invisible under ordinary illumination may become much more visible when the system uses transmitted or low-angle illumination. MindVision's line scan solutions are designed for continuous material inspection and can be integrated with suitable lenses, lighting, encoders, and image-processing systems according to the application.

4.2 Packaging Film Inspection

Packaging films often combine multiple requirements, including appearance inspection, printing inspection, coating inspection, and dimensional quality control. A single production line may therefore need to inspect both the material surface and printed information. For printed packaging films, color line scan imaging can be useful when the inspection task depends on color differences or registration accuracy. For surface defects, monochrome line scan cameras may provide sufficient contrast when combined with appropriate lighting. The final configuration should be selected according to the material and defect characteristics rather than simply choosing the highest-resolution camera.

4.3 Optical Film and Protective Film Inspection

Optical films and protective films often have demanding surface-quality requirements. Small scratches, particles, coating variations, or non-uniform regions may affect the optical performance or appearance of the final product. Because these films are often produced continuously, line scan imaging provides a natural way to inspect the entire web. In low-contrast applications, TDI line scan technology may also be considered. TDI, or Time Delay Integration, accumulates image information across multiple stages while the material moves. This can improve the usable signal level in applications where the defect is difficult to capture because of limited illumination or high production speed. MindVision provides TDI line scan options for demanding inspection scenarios.

5. Battery Separator Film: A Specialized Line Scan Application

Battery separator film is another important continuous-web inspection application. Separator materials are manufactured as thin, continuous films and may require inspection for surface defects, contamination, coating irregularities, edge defects, and other abnormalities. Because the material moves continuously through the production line, missing a small section of image can potentially mean missing a defect. This makes several factors particularly important: high line rate, stable image acquisition, accurate encoder synchronization, sufficient spatial resolution, uniform illumination, and reliable data transmission. MindVision's line scan product portfolio specifically includes battery foil inspection among its target applications, and line scan systems can also be applied to moving electrode sheets, separator films, and other battery production materials.

6. How to Design a Line Scan Camera System for Film Inspection

A line scan camera alone does not constitute a complete film inspection system. A reliable solution normally includes: Film → Lighting → Lens → Line Scan Camera → Encoder → Image Acquisition → Processing → Defect Classification → Quality Decision. Each component affects the final inspection result.

• Camera – Determines horizontal resolution, pixel size, line rate, dynamic range, sensitivity, and interface.
• Lens – Determines field of view, working distance, image sharpness, distortion, and edge performance. The lens must provide sufficient image quality across the complete sensor width.
• Lighting – Determines whether the defect is visible. Typical options include bright-field lighting, dark-field lighting, backlighting, diffuse lighting, low-angle lighting, and polarized lighting. There is no universal lighting method for every film.
• Encoder – Encoder synchronization is particularly important for continuous web inspection. The encoder provides information about material movement, allowing the camera to acquire image lines at a rate that corresponds to actual web speed.
• Image Processing – The final system may use algorithms for defect detection, threshold segmentation, blob analysis, pattern comparison, surface uniformity analysis, defect classification, position tracking, and statistical quality analysis.

7. How to Choose a Line Scan Camera for Film Inspection

Camera selection should begin with the inspection requirement rather than the camera model. The following parameters should be defined first.

7.1 Minimum Defect Size

The minimum defect size determines the required object-side pixel resolution. A practical engineering guideline is that a critical defect should occupy multiple pixels rather than only one pixel. A common starting point is approximately three pixels across the smallest critical defect, although low-contrast or irregular defects may require more.

Example: Minimum defect = 0.15 mm, Required coverage = 3 pixels → Object-side pixel size = 0.15 ÷ 3 = 0.05 mm/pixel. If the film width is 1000 mm: 1000 ÷ 0.05 = 20,000 pixels. This means that a single 20K sensor would theoretically be required to cover the entire width at that pixel resolution, or the system could use alternative optical or mechanical configurations. In real projects, additional margin is required.

7.2 Film Speed

The material speed determines the required line rate. The basic relationship is: Line Rate = Material Speed ÷ Object-Side Pixel Size. Higher production speed requires higher line frequency.

7.3 Camera Resolution

Higher resolution is not always better. If the resolution is too low, small defects may not be adequately represented. If the resolution is unnecessarily high, data volume and processing requirements increase. The goal is to select sufficient resolution for the actual inspection task.

7.4 Interface

Interface selection should consider cable distance, data volume, industrial environment, PC architecture, multi-camera configuration, and system integration requirements. MindVision line scan cameras are available with industrial interfaces including GigE, while the broader product portfolio also supports USB, GigE, 10GigE, Fiber, and CoaXPress solutions depending on product series.

8. GigE Line Scan Cameras for Film Inspection

For many industrial film inspection systems, the camera interface is an important part of the overall architecture. GigE line scan cameras can be attractive when the inspection system requires industrial Ethernet connectivity, flexible cabling, or integration into a production network. MindVision's GigE line scan camera series supports multiple triggering methods, including encoder-synchronous triggering and combined photoelectric sensor and encoder synchronization. This can be particularly useful for continuous film inspection because the image acquisition process needs to follow actual material movement. A typical system can be structured as: Film Roll → Inspection Station → GigE Line Scan Camera → Industrial PC → Image Processing → Defect Database → Quality Decision. For production environments, the Ethernet-based architecture can also make it easier to integrate the camera into a broader industrial automation system.

9. When Should TDI Line Scan Be Considered?

Standard line scan cameras are suitable for many film inspection applications. However, some applications face a different problem: the defect exists, but the available optical signal is too weak. This can occur when production speed is high, exposure time must be short, lighting cannot be increased indefinitely, the defect has low contrast, the film surface is highly reflective, or the inspection requires high sensitivity. TDI can become useful in these conditions. Time Delay Integration accumulates signal across multiple stages while maintaining synchronization with object motion. The goal is not simply to increase resolution, but to improve the usable signal captured from weak features. MindVision offers TDI line scan products for applications where high speed and image sensitivity are both important. For film inspection, TDI may be considered for demanding applications such as optical film, protective film, high-speed web inspection, and other low-contrast continuous materials. The actual benefit should always be validated with representative samples.

10. MindVision Line Scan Camera Solutions for Film Inspection

MindVision's line scan camera portfolio is designed around different industrial inspection requirements rather than a single fixed specification. The current product range includes conventional line scan, high-resolution line scan, high-speed line scan, color line scan, and TDI solutions.

• MV-GEL41M – A 4096-pixel line scan camera with 7 μm pixel size and up to 28K line frequency. Suitable for general high-speed surface inspection where 4K-class resolution is sufficient.
• MV-GEL83BM – An 8192-pixel line scan model with 7 μm pixel size and TDI4 capability. Suitable when a wider inspection width and higher sensitivity are required.
• MV-GELM44C – A color line scan camera designed for applications where color information is part of the inspection requirement. Suitable for printed films, packaging materials, and other applications where color difference or registration quality needs to be analyzed.
• MV-H2FL84M / MV-H2FL84U – High-speed line scan models with 8208 horizontal pixels and line frequencies up to 440K. Designed for demanding high-speed inspection applications where standard line rates may not be sufficient.
• MV-PEL83DM – An 8192-pixel line scan model with a line frequency up to 200K, suitable for high-speed continuous inspection scenarios.

These examples illustrate why line scan camera selection should be based on the actual film application. A packaging film inspection project may prioritize color information. A transparent film project may prioritize optical contrast and lighting. A wide film web may require more horizontal pixels. A high-speed production line may require higher line frequency. A low-contrast defect may benefit from TDI technology. MindVision's product portfolio allows these requirements to be matched to different line scan architectures.

11. A Practical Workflow for Film Inspection Camera Selection

A reliable camera selection process should follow the application rather than the product catalog.

1. Define the Film – Identify film type, material, transparency, surface reflectivity, coating, color, and thickness.
2. Define the Defect – Identify defect type, minimum defect size, defect contrast, defect position, and expected defect frequency.
3. Define the Production Speed – Measure the actual web speed, speed variation, acceleration, and deceleration.
4. Define the Inspection Width – Determine whether one camera can cover the entire width or whether multiple cameras are required.
5. Calculate Object-Side Resolution – Use the minimum defect size to determine the required pixel size.
6. Calculate Line Rate – Match the line rate to material velocity.
7. Design Lighting – Test multiple lighting configurations rather than assuming that the brightest light is the best.
8. Select Interface – Consider GigE, USB, CoaXPress, 10GigE, or Fiber according to the system architecture.
9. Perform Sample Testing – Test normal samples, known defects, borderline defects, material variations, and different production speeds.
10. Validate the Complete System – Include camera, lens, lighting, encoder, trigger, acquisition software, image-processing algorithm, and mechanical installation.

12. Why Sample Testing Matters in Film Inspection

Film inspection is highly dependent on material and optical characteristics. Two films may look similar to the human eye but produce very different machine vision images. Transparent films can create strong reflections. Glossy films may generate highlights. Coated films may have uneven optical response. Printed films may require color information. Low-contrast defects may require more sensitive imaging.

Therefore, a camera specification sheet alone cannot determine whether an inspection system will work. The most reliable approach is to test representative samples under conditions that approximate the real production environment. The test should include not only obvious defects, but also difficult borderline samples. The objective is to determine: Can the defect be captured consistently? rather than simply: Can the defect be seen once? This distinction is extremely important for industrial machine vision.

13. Building a Complete Film Inspection Solution

A successful film inspection project is not simply a matter of purchasing a line scan camera. The complete solution should be considered as an integrated imaging system. A typical architecture may include: Continuous Film → Stable Material Transport → Encoder → Industrial Lighting → Line Scan Camera → GigE / High-Speed Interface → Industrial PC → Image Processing → Defect Detection → Defect Classification → Production Quality Data → Reject / Alarm / Marking.

This architecture allows manufacturers to move from manual sampling inspection toward continuous automated quality control. Instead of checking only selected sections of a roll, the system can continuously inspect the material as it passes through the production line. This can help manufacturers identify defects earlier and provide more consistent inspection data.

14. Why Choose MindVision for Film Inspection?

Film inspection projects often require more than a camera. They require engineering support to match camera, lens, lighting, encoder, trigger, interface, acquisition software, and image-processing system. MindVision's industrial imaging portfolio includes area scan cameras, line scan cameras, smart cameras, SWIR cameras, UV cameras, thermal cameras, and other specialized imaging products.

For line scan applications, the product range covers different resolutions, line rates, sensor configurations, interfaces, color/monochrome options, and TDI architectures. This allows the system to be selected according to the actual application. For example:

• General film surface inspection → Conventional monochrome line scan
• Printed packaging film → Color line scan
• Wide film inspection → Higher-resolution line scan
• High-speed film production → High-line-rate camera
• Low-contrast film defects → TDI line scan
• Complex industrial integration → GigE or other high-speed industrial interfaces

MindVision also provides technical support for camera selection and industrial vision system development. For a new film inspection project, customers can provide information such as film width, material type, production speed, minimum defect size, working distance, inspection type, required interface, and existing lighting conditions. These parameters can then be used to evaluate the appropriate camera, lens, and imaging architecture.

15. Conclusion

Film manufacturing requires continuous and reliable quality inspection. As production speeds increase and film structures become more complex, manual inspection and periodic sampling may not provide sufficient coverage for detecting small or intermittent defects. Line scan cameras are particularly well suited to film inspection because their operating principle matches continuous web production. They can continuously capture moving film surfaces and reconstruct long, high-resolution images for automated inspection.

However, a successful film inspection system requires more than simply selecting a high-resolution camera. The complete system should consider: minimum defect size, film width, production speed, line rate, optical resolution, lens performance, lighting, encoder synchronization, interface, image processing, and mechanical stability.

For standard film inspection, conventional monochrome or color line scan cameras may provide an effective solution. For high-speed production, higher line-rate cameras may be required. For wide materials, higher-resolution sensors can help achieve the required spatial resolution. For low-contrast defects under limited illumination, TDI line scan technology may provide additional sensitivity.

The most important principle is to design the imaging system around the actual inspection problem. MindVision's line scan camera portfolio provides multiple options for film, web, battery, printing, surface inspection, and other continuous-material applications. By combining the appropriate line scan camera with a suitable lens, lighting system, encoder, interface, and image-processing platform, manufacturers can build a stable machine vision system for continuous film quality inspection.
