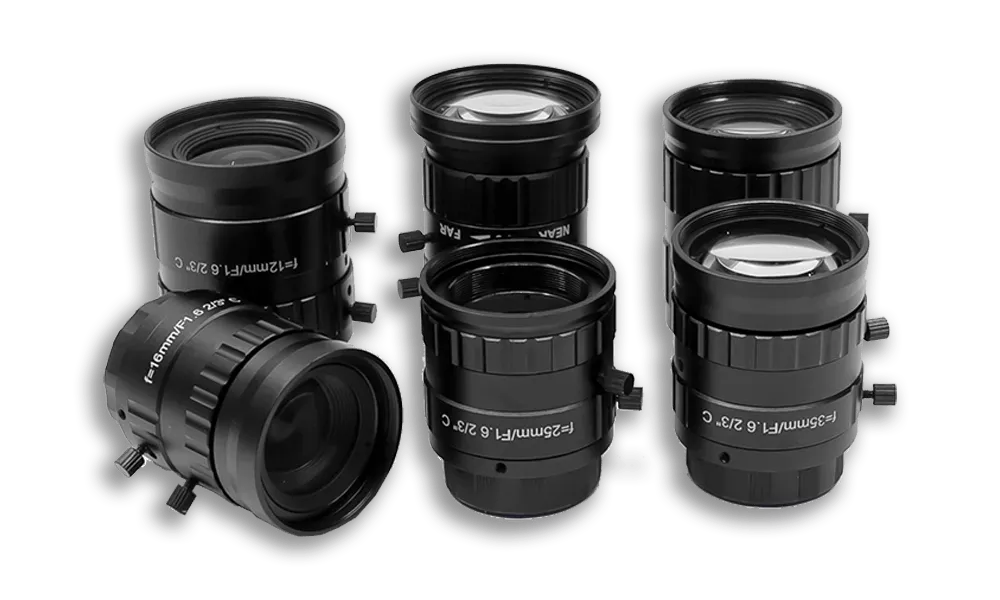

Machine Vision Lenses
We offer high-quality and affordable industrial imaging lenses with a wide variety of options, featuring diverse mounting methods such as C-mount, M12 mount, F-mount, M42 mount, and more.
In addition, we provide an extensive range of specialized lenses, including telecentric lenses, short-wave infrared (SWIR) lenses, ultraviolet (UV) lenses, autofocus lenses, and zoom lenses.
Beyond our comprehensive product line catering to all standard applications, we also offer special lenses and customized machine vision solutions tailored to our customers' needs.
Installing C/CS to M12 Adapter
The C or CS interface to M12 lens adapter is used to mount M12 lenses onto industrial cameras with C or CS interfaces. M12 lenses are cheaper, more compact, and lighter in weight. In some applications, these parameters are crucial. Without this adapter, it would be impossible to attach an M12 lens to a C or CS interface industrial camera.
M12 or C Interface Extension Ring
Extension rings are used to shorten the minimum working distance of C interface or M12 lenses. Most industrial lenses have a working distance of 100mm or more. By adding an extension ring, this distance can be reduced. When the working distance is decreased, the depth of field also diminishes. Adding an extension ring can degrade the lens's optical performance and sensitivity. Therefore, M12 or C interface extension rings are only used in specific industrial applications.
Focal Length Extender
With a focal length extender, you can double or quadruple the focal length of a lens. By combining this focal length extender with a 35mm, 50mm, or 75mm C-mount lens, you can create focal lengths of 70mm, 100mm, 150mm, 200mm, and even 300mm.
