USB3.0 cameras for machine vision

USB 3.0, short for Universal Serial Bus 3.0, is a revolutionary high-speed interface standard that has transformed the way we connect and transfer data between devices. Offering a theoretical maximum transfer rate of 5 gigabits per second (Gbps), USB 3.0 is up to ten times faster than its predecessor, USB 2.0. This significant speed boost makes it ideal for quickly transferring large files, such as high-definition videos, high-resolution images, and large data backups.
One of the key features of USB 3.0 is its backward compatibility with older USB versions. This means that USB 3.0 devices can be plugged into USB 2.0 or USB 1.1 ports, although they will operate at the lower speeds of those older standards. Similarly, USB 2.0 and USB 1.1 devices can be used with USB 3.0 ports, taking advantage of the enhanced power delivery capabilities of USB 3.0.
In addition to its speed and compatibility, USB 3.0 also offers improved power management features. It provides more power to connected devices, enabling faster charging of smartphones, tablets, and other portable electronics. USB 3.0 ports can supply up to 900 milliamps of power, compared to 500 milliamps for USB 2.0 ports, reducing the charging time significantly.
Visually, USB 3.0 ports and cables are often marked with a blue color inside the port or on the connector, making them easily distinguishable from older USB versions. This color-coding helps users quickly identify USB 3.0-compatible devices and ports.
Overall, USB 3.0 has become the standard interface for modern computing and consumer electronics, providing users with faster data transfer speeds, improved compatibility, and enhanced power management. Its widespread adoption has made it an essential technology for anyone looking to connect and transfer data between devices efficiently.

—— About USB3.0 Industrial Cameras ——

USB3.0 Industrial Cameras use the SuperSpeed USB interface and are built for machine vision and automated inspections. They provide high bandwidth, low latency, strong antiinterference, and reliable stability, outperforming regular USB webcams. This makes them ideal for industrial inspection, medical imaging, and scientific research.

When it comes to user-friendly digital interfaces, nothing compares to USB (Universal Serial Bus). This plug-and-play interface emerged around 1996 and has since undergone significant improvements. With its evolution to USB3, the imaging industry witnessed revolutionary changes that propelled the adoption of gigabit-speed connectivity. Today, USB3 has become a dominant force in the imaging sector, with its development accelerating continuously. The first iteration was USB 3.0, later rebranded as USB 3.1 Gen 1 and subsequently USB 3.2 Gen 1. This technology broke through USB2's 480Mbit/s speed barrier to achieve 5Gbit/s transmission rates. USB3 connectors have now been widely adopted across various products. Unsurprisingly, in industrial and scientific imaging markets, this interface has carved out a path for sustained growth and expansion.

GigE Vision: A machine vision standard based on Ethernet communication. It uses Gigabit Ethernet to transmit image data, enabling long-distance and high-speed transmission. It is widely used in industrial inspection and other scenarios and supports multi-camera networking.
USB3 Vision: Relying on the USB3.0 interface and following relevant protocol specifications, it balances high-speed transmission, ease of use, and low cost. It is suitable for visual applications that require installation convenience and transmission speed, such as general industrial inspection and scientific research imaging.
Camera Link: A mature digital camera interface standard designed for machine vision and image acquisition. It has high transmission bandwidth and good real-time performance and is often used in occasions with strict requirements on image quality and transmission speed, such as high-end industrial inspection and aerospace imaging.
CoaXPress (abbreviated as CXP ): A high-speed serial communication digital interface standard that uses coaxial cables for transmission. It has ultra-high bandwidth and a relatively appropriate transmission distance, and can meet the large data volume transmission of high-resolution and high-frame-rate cameras. It plays a role in high-end machine vision inspection, medical imaging and other fields.
Camera Link HS: A high-speed evolutionary version of the Camera Link standard. It optimizes transmission performance, can adapt to the high data volume transmission requirements of higher-speed cameras, and facilitates more efficient visual data acquisition and processing. It is used in industrial vision systems that pursue extreme speed and performance.

Computers and other devices that use cameras often have a USB 3.0 Type-A connector (the standard rectangular USB port). Industrial cameras usually use USB3 Type - B or USB3 Micro - B connectors. These connectors have a locking design that holds up to 10 meters of cable securely in place. This prevents the cable from coming loose. USB is now the standard way for computers and many electronic devices to connect to each other. Most systems already have the necessary hardware to send image data from cameras. Unlike other solutions that require special tools, parts, or cables, USB3 cameras are a cost-effective way to set up large-scale vision systems.

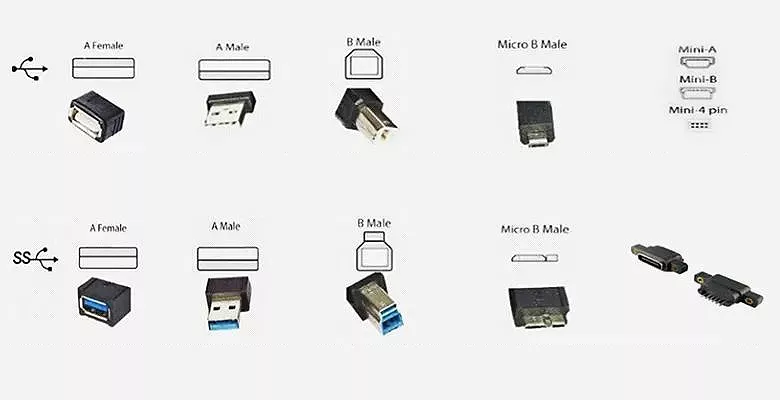

This image displays various types of USB connectors, arranged in two rows. The upper row features standard USB connectors, including Type A female (rectangular port, commonly found on computer hosts), Type A male (rectangular plug, used for USB drives, mice, etc.), Type B male (square with beveled edges, compatible with printers, older external hard drives), Micro B male (compact, used for older Android phones), and the gradually phased-out Mini series (once used for MP3 players and early mobile phones).

The lower row showcases SuperSpeed (SS, corresponding to USB 3.0 and above) connectors, including Type A female (blue internal tab, for high-speed computer ports), Type A male (blue marking inside the interface, for high-speed external hard drives, etc.), Type B male (with blue indicator, compatible with high-speed printers and peripherals), and Micro B male (designed for compact high-speed devices like older Android tablets). The far right features two less common specialized variants. Overall, this visual summary helps identify and distinguish the different USB connector forms.

Characteristics

1.High-speed transmission

The USB3.0 interface has a transmission bandwidth of up to 5Gbps, enabling fast transmission of image data. For example, the MV-SUS840C-M camera from Maidvision can achieve a frame rate of 45.5FPS at 8.4 million effective pixels.

2.Low CPU occupancy

It typically uses DMA (Direct Memory Access) transmission, hardly occupying CPU resources, allowing the system to handle other tasks simultaneously.

3.Support for multiple cameras

It lets you connect multiple cameras to one computer so they can all work at the same time. It's reliable and won't cut out or lose any frames, so you can use it in different places and with different angles.

4.Precise synchronization

● Real-time noise reduction and edge enhancement algorithms improve detection accuracy

● Supports multi-spectral imaging (IR/UV/polarization)

5.Strong compatibility

Some cameras are fully compatible with the SDK of GIGE cameras for seamless replacement. They also work with different types of computer systems and software made by other companies. They follow standards such as USB3 Vision and GenICam.This makes it easy to use them in different systems.

Application scenarios

High-speed detection

Used to quickly capture fast-moving objects on production lines to check their appearance, size, etc.

Precision measurement

It has high resolution and can accurately capture images. It can measure small objects or exact parts, like the size of electronic components and the shape of mechanical parts.

Automated control

It provides visual feedback for automated production lines to guide robots in precise operations.This improves production efficiency and quality.

Microscope imaging

It is used a lot in microscopy. Use it with various microscopes to get microscopic images and study them.
