Why Is Semiconductor Wafer Inspection Becoming More Challenging?

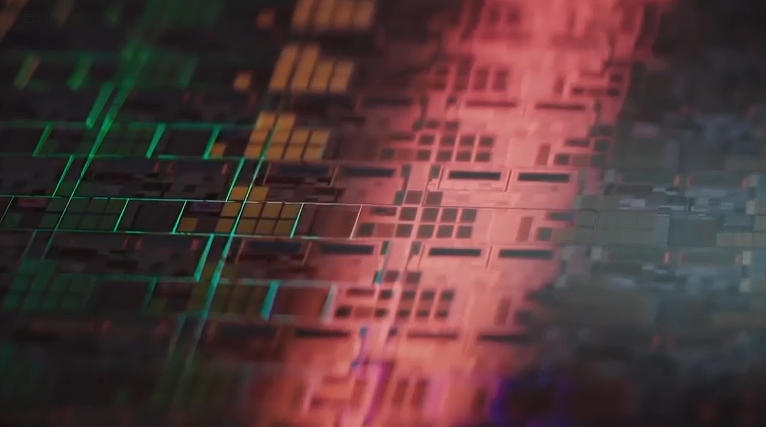

A semiconductor wafer may undergo dozens or even hundreds of manufacturing processes before it becomes a finished device. Each process can introduce potential defects or variations that affect the final product.

Inspection systems therefore need to detect increasingly subtle differences while maintaining high throughput.

Typical wafer inspection challenges can include:

• Surface defects
• Particles and contamination
• Scratches
• Cracks
• Pattern abnormalities
• Material variations
• Coating or film irregularities
• Process-related defects
• Foreign particles
• Structural abnormalities

The difficulty is that not all defects produce strong visible contrast. A defect may have nearly the same color, brightness, or texture as the surrounding wafer surface. Under conventional visible imaging, this can make segmentation and classification difficult.

For automated semiconductor inspection, the imaging system needs to produce sufficient contrast between the target feature and its background. This is where alternative spectral imaging technologies such as SWIR can become useful.

What Is SWIR Imaging?

SWIR stands for Short-Wave Infrared. SWIR imaging uses wavelengths beyond the visible spectrum to capture information about an object. Many industrial SWIR camera systems operate around the 900–1700 nm range, depending on the sensor and application.

Unlike visible cameras, SWIR cameras detect how materials interact with short-wave infrared radiation. This distinction is important for semiconductor inspection because different materials can exhibit different absorption, reflection, and transmission characteristics at different wavelengths.

A conventional camera primarily answers: What does the wafer look like? A SWIR imaging system can provide additional information related to: How does the material respond at a specific infrared wavelength? This additional information can improve the ability to distinguish certain materials, structures, or defects.

MindVision's SWIR cameras use InGaAs sensors designed for SWIR imaging, with models covering the 0.9–1.7 μm range and different resolution configurations. For semiconductor applications, this spectral range is particularly relevant because silicon exhibits different optical behavior at wavelengths above approximately 1100 nm, enabling specialized imaging approaches for wafer inspection.

How Can SWIR Cameras Support Wafer Inspection?

1. Improving Contrast Between Materials

One of the most important reasons to consider SWIR for semiconductor imaging is material contrast. Two materials may have very similar appearances under visible light but behave differently in the SWIR spectrum. When this happens, SWIR illumination and imaging can create a stronger intensity difference between different areas of the wafer.

This additional contrast can be useful for:

• Material differentiation
• Layer inspection
• Coating inspection
• Process monitoring
• Defect detection

For semiconductor applications, MindVision's InGaAs SWIR cameras provide sensitivity across the SWIR range, allowing engineers to select imaging configurations according to the spectral characteristics of the target material. For example, the MV-GEC31I is designed for high-sensitivity SWIR imaging and microscopic applications, making it suitable for applications where small differences need to be captured under controlled optical conditions.

2. Detecting Defects That Are Difficult to See With Visible Light

Automated wafer inspection relies heavily on image contrast. If a defect and the surrounding material have nearly identical intensity levels, conventional image processing algorithms may struggle to distinguish them. SWIR imaging provides another spectral dimension that may increase the difference between the defect and its background.

This can be particularly relevant to specialized wafer inspection tasks involving:

• Internal cracks
• Micro-scratches
• Material abnormalities
• Contamination
• Layer-related variations
• Local structural differences

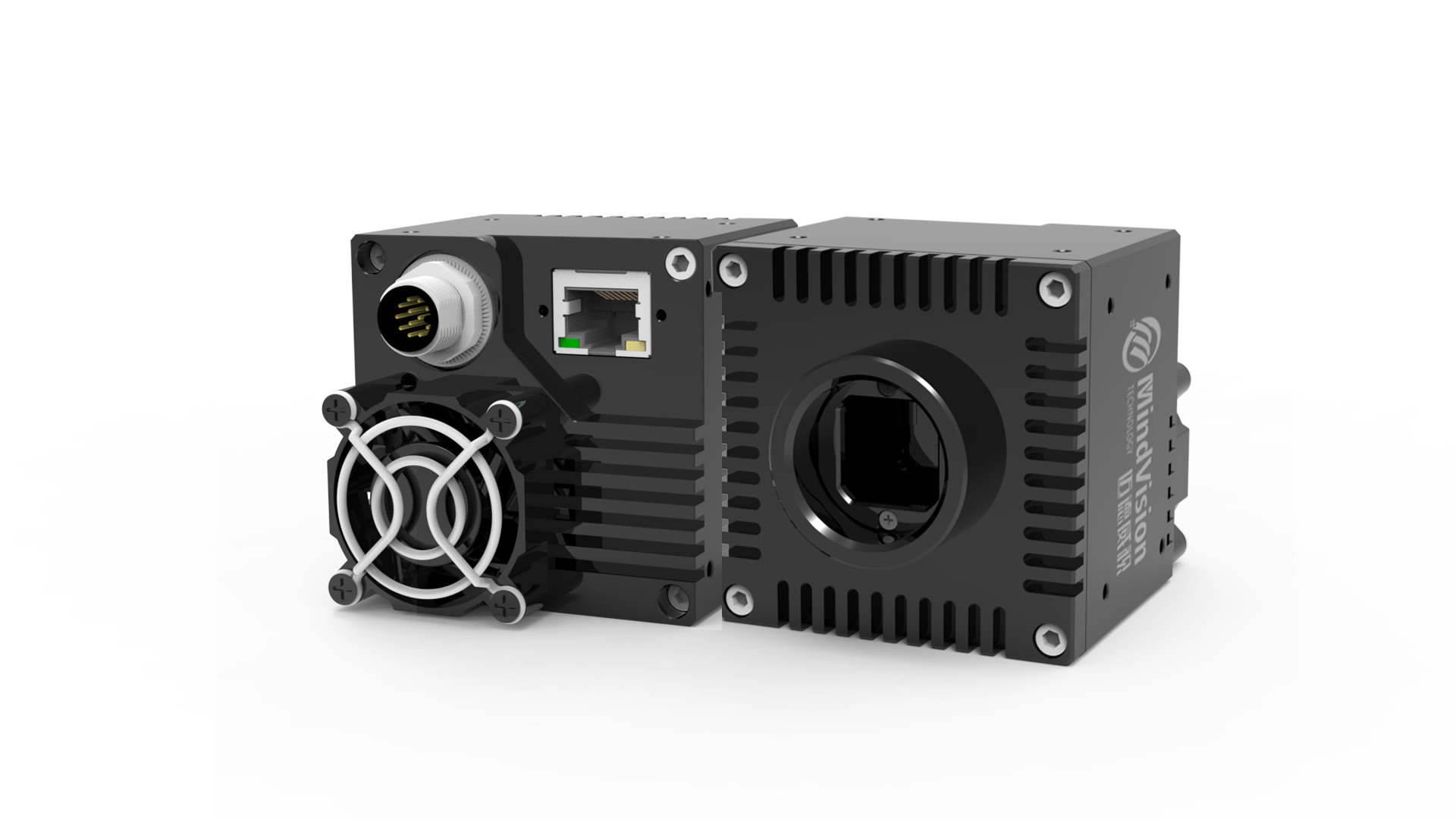

MindVision's semiconductor SWIR application case demonstrates the use of the MV-GEC31I for imaging features that are difficult to observe with conventional visible-light imaging, including internal wafer defects. The camera uses a high-sensitivity InGaAs detector with a 0.9–1.7 μm response range.

3. High Sensitivity for Low-Light Semiconductor Imaging

Semiconductor inspection often involves small features, limited illumination, short exposure times, or microscopic optical configurations. In these conditions, sensor sensitivity becomes particularly important.

MindVision's SWIR cameras use InGaAs sensors with a sensitivity of up to ≥0.8 A/W, while the MV-GEC31I application configuration specifies quantum efficiency of ≥70% at 1.55 μm. These characteristics help improve photoelectric conversion efficiency in the SWIR range.

For inspection engineers, higher sensitivity can provide more flexibility when designing illumination and exposure settings. Instead of simply increasing illumination power, the system can optimize the combination of: Sensor sensitivity + illumination + exposure time + lens + wavelength to obtain the required image quality.

4. TEC Cooling for Stable SWIR Imaging

Thermal noise can become a concern in sensitive infrared imaging applications, particularly when long exposures or low-light conditions are involved. MindVision's selected SWIR semiconductor cameras incorporate thermoelectric cooling technology.

For example, the MV-GEC31I uses semiconductor cooling to achieve a temperature difference of approximately 20°C relative to ambient conditions. This reduces thermal noise and helps maintain image quality when detecting small signals.

This is particularly valuable for semiconductor inspection because defects may produce only subtle differences in the captured signal. A more stable sensor temperature can help the system maintain consistent imaging performance during extended operation.

5. Multiple Resolution Options for Different Wafer Inspection Tasks

Not every semiconductor inspection task requires the same resolution. A microscopic defect inspection system may prioritize spatial detail, while another application may require a larger field of view or higher throughput.

MindVision's SWIR product family provides multiple resolution options, including models such as:

• MV-GEC30I — 640 × 512
• MV-GEC130I — 1280 × 1024
• MV-GEC500I — 2592 × 2056

This range allows engineers to select a camera based on field of view, defect size, optical magnification, inspection speed, and data-processing capability. The MV-GEC500I, for example, provides 5 MP resolution and a 1/1.4-inch sensor format, making it suitable for applications where higher spatial detail is required.

SWIR vs. Visible Cameras for Wafer Inspection

Visible-light cameras remain the standard choice for many semiconductor inspection applications. They offer high spatial resolution, excellent image quality, broad availability, and compatibility with a wide range of industrial lighting systems. SWIR cameras should therefore not be viewed as a universal replacement for visible cameras. Instead, the two technologies can complement each other.

MindVision's SWIR cameras are designed to integrate into machine vision environments and support industrial standards and software ecosystems, including GigE Vision, GenICam, and software such as HALCON and VisionPro.

How to Choose a MindVision SWIR Camera for Wafer Inspection

For Microscopic and Fine Defect Inspection

If the goal is to detect internal cracks, micro-scratches, and other fine structures, consider evaluating a high-sensitivity SWIR camera designed for microscopic imaging. The MV-GEC31I is designed for low-light SWIR imaging and microscopy, using an InGaAs detector with TEC cooling, making it suitable for observing internal features that are difficult to see with visible light.

For Higher Resolution Inspection

For applications requiring higher spatial resolution, select higher-resolution models based on field of view and defect size. The MV-GEC130I offers 1280 × 1024 resolution, while the MV-GEC500I offers 2592 × 2056 (5 MP) for tasks requiring finer detail.

For Different System Integration Requirements

MindVision SWIR products are available with different industrial interfaces and configurations. Depending on the inspection system, engineers can consider GigE Vision, USB 3.0, CoaXPress, and GenICam compatibility. This allows integration into laboratory systems, automated inspection equipment, and production-line machine vision systems. Multiple resolution and interface combinations allow balancing image quality, bandwidth, cable distance, processing capability, and cost.

Designing a SWIR-Based Semiconductor Inspection System

A complete SWIR wafer inspection system is not simply SWIR Camera + Computer, but a complete optical, mechanical, electronic, and software system. A typical system can be represented as:

Wafer → SWIR Illumination → SWIR Lens → MindVision SWIR Camera → Image Acquisition → Image Processing / AI → Defect Detection → Classification → Quality Control

In practice, wafer positioning, motion stage, vibration, ambient light, temperature, equipment stability, and data processing speed also need to be considered. MindVision's SWIR products support standard machine vision protocols and can work with HALCON and VisionPro, helping to integrate SWIR imaging into existing automated inspection systems.

Why Choose MindVision for Semiconductor SWIR Imaging?

• InGaAs SWIR Sensor – MindVision SWIR cameras use InGaAs sensors designed for the SWIR wavelength range, with models covering 0.9–1.7 μm.
• High Sensitivity – Selected MindVision SWIR models provide sensitivity up to ≥0.8 A/W, while the MV-GEC31I application configuration specifies ≥70% quantum efficiency at 1.55 μm.
• TEC Cooling – Selected semiconductor-oriented models use thermoelectric cooling to reduce thermal noise and improve image stability during sensitive SWIR imaging.
• Multiple Resolutions – From 640 × 512 to 5 MP configurations, MindVision provides different resolution options for different fields of view and defect sizes.
• Machine Vision Integration – GigE Vision, GenICam and compatibility with commonly used machine vision software such as HALCON and VisionPro make integration easier.
• Multiple Interface Options – MindVision's SWIR portfolio supports different interface configurations, allowing engineers to select the appropriate transmission solution based on speed, distance, and system architecture.

Conclusion

As semiconductor manufacturing continues to demand higher precision and more reliable quality control, traditional visible-light inspection may not always provide sufficient information for every inspection task. SWIR cameras offer an additional imaging option by capturing material responses beyond the visible spectrum.

For semiconductor wafer inspection, SWIR imaging can potentially improve contrast between certain materials, assist in detecting selected low-contrast or internal defects, and provide additional spectral information for specialized inspection tasks.

MindVision's SWIR camera portfolio combines InGaAs sensors, high sensitivity, optional thermoelectric cooling, multiple resolution configurations, industrial interfaces, and machine vision software compatibility. For applications ranging from microscopic semiconductor inspection to higher-resolution wafer imaging, engineers can select different camera configurations according to the target defect, field of view, optical system, inspection speed, and integration requirements.

The key to successful SWIR semiconductor imaging is not simply choosing a high-resolution camera. The entire imaging system must be designed around the inspection target. Wavelength, sensor sensitivity, resolution, pixel size, frame rate, lens, illumination, interface, and image-processing capability all need to be considered together.

For manufacturers developing automated wafer inspection systems, SWIR can be a valuable complementary technology when conventional visible imaging cannot provide the required inspection information.

About MindVision

MindVision develops industrial camera solutions for machine vision and specialized imaging applications. For semiconductor inspection, camera selection should be based on the actual imaging requirements, including target material, defect characteristics, wavelength, resolution, sensitivity, frame rate, and system interface.

If you are developing a semiconductor wafer inspection system and need to evaluate SWIR imaging, contact MindVision to discuss your application requirements and camera configuration.
