I. Stereo Camera Modules: More Than Just "Two Cameras" Put Together

Some stereo solutions on the market simply piece together two independent cameras—an approach that inherently suffers from synchronization, integration, and image quality issues.

MindVision's stereo camera modules are designed from the ground up as a complete system. They are available in GigE Interface and USB3.0 Interface series, covering resolutions from 0.3MP to 12MP, with support for both CMOS and CCD sensors.

1. Core Advantage: Precise Synchronization for Data Integrity

For stereo vision, left-right image synchronization is the lifeline. If the two images aren't captured at the exact same moment, the calculated disparity will be inaccurate.

MindVision's stereo modules support Continuous, Software Trigger, and Hardware Trigger operating modes. In all modes, the stereo images automatically synchronize with synchronization error controlled at the microsecond level. This hardware-level synchronization mechanism eliminates the need for developers to design their own synchronization circuits, ensuring 3D reconstruction data quality from the very source.

2. Flexible Customization: Adapting to Various Robot Configurations

Robots come in countless form factors, each with different requirements for vision module size and shape.

MindVision's stereo modules offer exceptional hardware design flexibility: Sensor board dimensions can be customized to match different structural requirements; FPC cable length can be freely changed, and baseline distance can be flexibly adjusted. Taking a typical 1.3MP USB3.0 stereo module (MV-MSU133GC2-T) as an example: the main board measures just 42×42mm, the two sensor boards measure 38×38mm each, and the total weight is less than 75g. This compact size and lightweight design make it extremely easy to integrate onto robotic arm wrists or small mobile robots.

3. Professional Image Quality: "Pure" Raw Material for Algorithms

Unlike some stereo modules based on the UVC protocol that output compressed YUV format images, MindVision's solution uses a proprietary SDK (non-UVC) that can directly output lossless 8-bit, 12-bit, and 16-bit grayscale images.

This means:

• Image data undergoes no lossy compression, preserving richer detail.
• Eliminates the YUV-to-RGB format conversion step, reducing computational overhead and latency.
• Critical imaging parameters such as exposure time and gain can be fully manually controlled, allowing developers to fine-tune them for specific scenarios.

This "pure" raw image data is essential for subsequent stereo matching and depth computation.

II. Software Ecosystem: Lowering the Development Barrier and Accelerating Time-to-Market

Beyond hardware, comprehensive software support is the key to rapid deployment of stereo cameras.

MindVision provides dedicated SDKs and drivers that support Windows, Linux, ARM Linux, and Apple Mac OS systems. The SDK is fully compatible with MindVision's single-camera products, reducing the learning curve. In terms of development languages, it covers C/C++, C#, VB6, VB.NET, Delphi, Java, Labview, and others, with rich demo code provided. The SDK also integrates seamlessly with mainstream machine vision software such as Halcon, VisionPro, and OpenCV, allowing developers to leverage these mature software libraries for algorithm prototyping and system development.

III. Real-World Application Scenarios

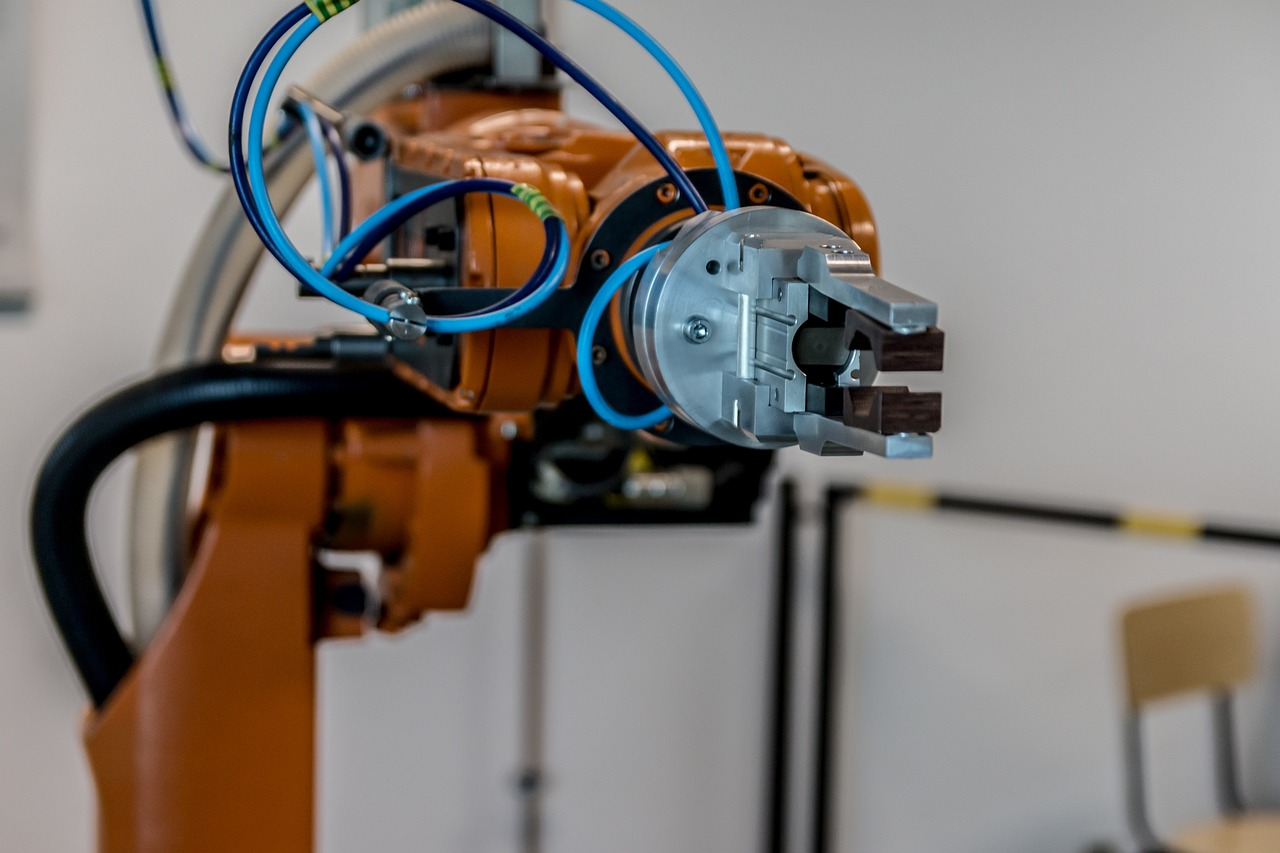

Scenario 1: Robotic Arm "Eye-in-Hand" Precision Picking

Scenario Description: In automated assembly and bin-picking applications, robotic arms need to grasp workpieces in arbitrary poses from conveyor belts or bins. If the camera is fixed to the workbench ("eye-to-hand"), the field of view may be occluded as the arm moves to different positions. Increasingly, solutions adopt an "Eye-in-Hand" configuration—mounting the stereo camera directly on the robotic arm's end effector.

Actual Workflow: Taking an automotive parts assembly line as an example—the robotic arm moves to the position above the target workpiece; the host computer triggers the stereo camera via a hardware trigger signal (through the GPIO interface) to synchronously capture left and right images; the camera completes exposure within microsecond-level synchronization error and transmits lossless grayscale images to the host computer; vision algorithms (e.g., Halcon/OpenCV) perform stereo matching on the left and right images, computing disparity and generating a depth map; combined with hand-eye calibration results, the pixel coordinates of the workpiece are transformed into 3D coordinates in the robot's base coordinate system; the robotic arm controller receives the coordinate commands and executes precise grasping. The entire closed-loop from trigger to grasp can be completed within milliseconds, supporting high-speed capture up to 130fps.

Value of MindVision Stereo Cameras:

• The compact dimensions (main board 42×42mm, sensor boards 38×38mm) and lightweight design (<75g) make them ideal for wrist mounting without adding excessive burden to the end effector.
• Microsecond-level stereo synchronization ensures that the left and right images captured during high-speed robotic arm motion are still "simultaneous," preventing 3D positioning errors caused by motion blur.
• Manually adjustable exposure and gain parameters allow flexible optimization of image quality based on on-site lighting conditions.
• The reserved GPIO interface and hardware trigger input enable direct linkage with the robotic arm controller, achieving a closed-loop control of "arrive at position → trigger camera → acquire 3D coordinates → execute grasp".

In MindVision camera selection, developers often choose global shutter models (such as the MV-MSU133GC2-T, with 4.0μm pixel size and global shutter) to clearly capture moving workpieces and avoid the image distortion caused by rolling shutter.

Scenario 2: Mobile Robot (AGV/AMR) Vision Navigation and Obstacle Avoidance

Scenario Description: When autonomous mobile robots operate in factories and warehouses, they need to perceive their surrounding environment in real time, build maps, localize themselves, and avoid obstacles. Visual SLAM (Simultaneous Localization and Mapping) relies on the depth information provided by stereo cameras to achieve this functionality.

Actual Workflow: Taking a warehouse logistics AMR as an example—the AGV autonomously travels through warehouse aisles while the stereo camera continuously captures images of the environment ahead; visual SLAM algorithms (such as ORB-SLAM, VINS-Mono) extract and match feature points from the left and right images to compute depth information; fused with IMU (Inertial Measurement Unit) data, the system estimates the AGV's pose in real time and builds an environmental map; the algorithm detects the distance to obstacles ahead, plans obstacle avoidance paths, and adjusts motion trajectories in real time; the AGV follows the planned path to the target shelf and completes the transport task.

Value of MindVision Stereo Cameras:

• Output of lossless grayscale images provides high-quality raw data for visual SLAM algorithms, improving the stability of feature point extraction and matching.
• Support for GigE interface stereo modules suits long-distance transmission scenarios (up to 100 meters), allowing the camera to be mounted at the front of the vehicle while the compute unit is placed inside the vehicle body.
• FPC cable length can be freely changed, facilitating flexible layout within compact vehicle structures.
• The reserved RS232 interface enables direct connection to other sensors such as IMUs, simplifying multi-sensor fusion system integration.
• Operating temperature range of -30°C to 60°C adapts to various working environments including warehouses and outdoor settings.

MindVision's stereo camera products have been widely applied in scientific research, industrial automation, and intelligent transportation.

Scenario 3: Research and Education Platforms

Scenario Description: When universities and research institutions conduct algorithm research in stereo vision, robotics, and SLAM, they need a flexible, open, and image-quality-controllable hardware platform.

Actual Workflow: Taking a university robotics lab's stereo vision course as an example—students install the MindVision SDK and drivers on Ubuntu systems; they call the camera API through OpenCV to write image acquisition programs; configure stereo camera parameters (exposure, gain, frame rate, etc.) and capture left and right image data; run stereo matching algorithms (such as SGBM, BM) to generate depth maps and conduct 3D reconstruction experiments; compare depth map quality under different parameter settings and complete algorithm tuning reports.

Value of MindVision Stereo Cameras:

• The dedicated SDK supports C/C++, Python (via OpenCV interface), Java, Labview, and other development languages, accommodating the habits of different research teams.
• Seamless compatibility with OpenCV, Halcon, VisionPro, and other vision software allows researchers to directly call mature algorithm libraries.
• Full manual control over exposure, gain, and other parameters facilitates controlled experiments and algorithm tuning.
• Support for lossless 8-bit, 12-bit, and 16-bit grayscale format output lets researchers flexibly choose data bit depth based on algorithmic requirements.

IV. FAQ: Common Developer Questions

Conclusion

For robot developers, choosing a stereo camera is essentially choosing a stable, accurate, and easy-to-integrate 3D perception solution. MindVision's stereo camera modules, with their hardware-level synchronization technology, flexible customization capabilities, and professional-grade image quality, provide a solid and reliable hardware foundation for the robot's "eyes"—whether you're installing "fingertip vision" for a robotic arm or building a "navigation eye" for a mobile robot, it's a choice worth serious consideration.
