MindVision MV-MS136GC/M Coaxial Camera: Ultra-Compact Vision for Confined-Space Inspection | Specs & Applications
Ultra-compact global shutter camera for confined-space industrial vision

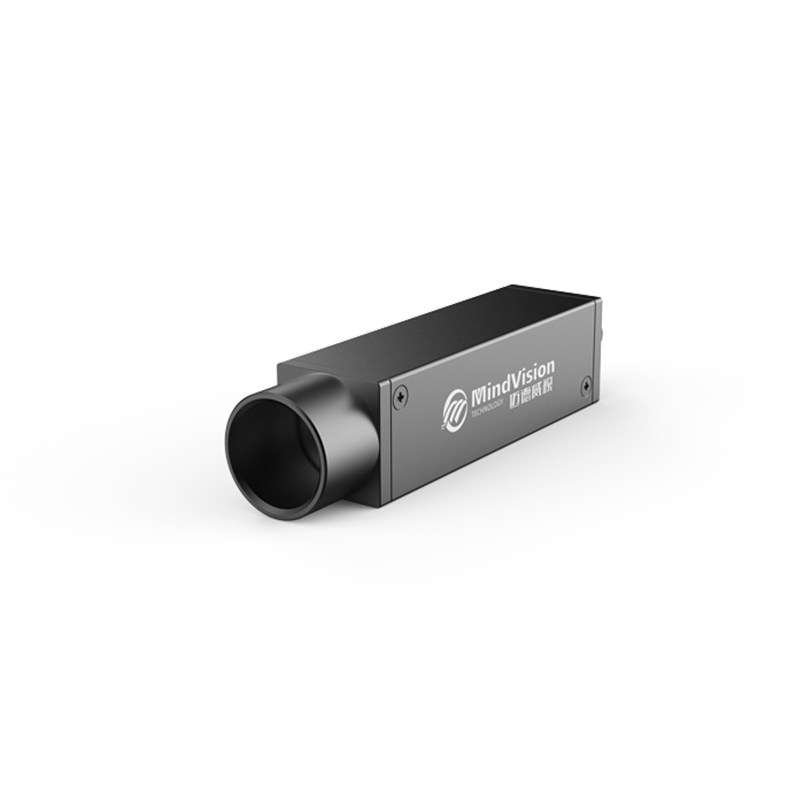

MV-MS136GC Coaxial Camera
Ultra-compact global shutter camera for confined-space industrial vision
Why MV-MS136GC
Core Advantages
Six defining capabilities that set this coaxial camera apart for embedded industrial vision
Ultra-Compact Body
14×14×48mm full dimensions, 11.5×11.5mm module cross-section — fits through ~16mm mounting holes and inside placement equipment chambers
Ultra-Lightweight
Total weight under 20g; 12-camera array adds only ~240g at arm end — minimal payload impact for robotic arm guidance
Single SMA Coaxial
Image data, hardware trigger, and power through one SMA cable — simplified cabling, inherent EMI suppression, up to 15m transmission distance
High Frame Rate
1080×1280 @ 120fps single camera; 70fps with 12-camera simultaneous input — only 58% frame rate reduction in multi-camera mode
Detailed Parameters
Every parameter with engineering context — not just numbers, but why they matter
Target Scenarios
Eight proven application domains where MV-MS136GC delivers decisive advantages
LED Chip Placement Inspection
14×14mm cross-section fits inside placement equipment chambers; WDR >100dB handles extreme contrast between chip self-emission and substrate reflection
Ultra-compact size + WDR dynamic range + high frame rate throughput
Semiconductor Welding Quality Inspection
Threaded mount for robotic arm integration; SMA coaxial shielding suppresses welding equipment EMI; 10.5μs minimum exposure captures weld transient states without blur
Robotic arm mount + EMI immunity + microsecond exposure + global shutter
SMT Production Line AOI
120fps matches high-speed line throughput; color model distinguishes component markings and polarity orientation; 12-channel supports multi-position synchronized inspection
High frame rate + color differentiation + multi-camera throughput
Micro Robotic Arm Vision Guidance
≤20g is only 4% of a 500g payload arm capacity; single SMA cable reduces cable entanglement risk in multi-axis motion; passive cooling eliminates vibration
Ultra-lightweight + single cable + zero vibration + compact form
Multi-Camera Synchronous Production Line
12-channel centralized management with per-camera independent parameters; hardware trigger for microsecond sync; 12-camera 70fps sustained throughput
12-channel capacity + independent params + hardware trigger sync
Medical Device Micro-Component Inspection
11.5mm module fits custom inspection fixtures; M12 mount supports macro to telecentric optics for diverse measurement needs; global shutter for vibration-sensitive environments
Compact module + optics flexibility + global shutter stability
Solar Cell Micro-Defect Detection
WDR >100dB solves high-reflection and high-contrast scenes on cell surfaces; custom LUT enhances defect visibility against reflective backgrounds; mono version for maximum sensitivity
WDR >100dB + custom LUT + mono sensitivity + global shutter
3D Printing & Micro-Mold Dimension Measurement
Embeds in print chamber sidewall for in-process monitoring; 15m SMA transmission places capture card outside high-temperature zone; M12 telecentric lens for dimensional accuracy
Compact embedding + 15m transmission + telecentric optics
Warranty & Support Policy
Comprehensive coverage and responsive service for international customers
1. Warranty Period
- 24 months (2 years) limited warranty from the date of delivery — covers design, material, and manufacturing defects under normal use conditions.
2. Warranty Coverage
- Design, material, or manufacturing defects resulting in functional failure
- Functional failures under normal use conditions as defined in product specifications
- Latent manufacturing defects manifesting within the warranty period
- Capture card hardware failures under specified operating conditions
3. Exclusions
- Misuse or operation beyond published specifications
- Damage from force majeure events (natural disaster, lightning, power surge)
- Unauthorized modification, disassembly, or repair by third parties
- Normal wear, aging, and consumable degradation
- Failures caused by third-party accessories or non-certified components
- Software configuration or integration issues not attributable to product defect
- Sensor contamination, ESD damage, or improper handling
- Failures occurring after warranty expiration
4. Repair Process
If the product is determined to be unrepairable, MindVision will provide a replacement unit of equivalent or superior specification at no additional cost.
5. Return & Exchange
- 7-day unconditional return — unused, undamaged product in original packaging
- 15-day performance fault return/exchange — verified functional defect under specifications
- DOA (Dead on Arrival) — report within 3 days of receipt; 2 business day confirmation with priority replacement or full refund
6. Technical Support
- Business hours: 4-hour response time for standard inquiries
- Urgent issues: 2-hour priority response for production-line-down scenarios
- Support channels: phone, email, WhatsApp
- Free post-warranty consultation for integration and configuration questions
7. Software Updates
- Free driver, SDK, and firmware updates with email notification upon release
- Backward-compatible updates ensuring existing deployments remain functional
8. Training Services
- Online documentation and integration guides (always available)
- Remote training sessions for SDK usage and camera configuration
- On-site training by prior arrangement for team deployment scenarios
- Customized training programs tailored to specific application requirements
9. Disclaimer
- Product performance is as specified in official documentation; selection mismatch is not covered under warranty
- MindVision assumes no liability for indirect or consequential losses arising from product use
- Specifications may change with product iterations; MindVision reserves the right to improve products without prior notice
- All warranty terms are subject to the official warranty certificate provided with the product
