A New Tool for Industrial Vision: MindVision SWIR Camera Selection Guide and Application Landscape

Introduction

As industrial automation and smart manufacturing continue to accelerate, machine vision has become a core component of production-line quality control. However, conventional visible-light cameras often fall short in scenarios involving non-metallic material penetration, concealed defect detection, and all-weather imaging. Short-Wave Infrared (SWIR) technology is filling this gap with its unique imaging advantages.

From semiconductor wafer inspection to food foreign-object sorting, from plastic recycling classification to laser beam analysis, the application landscape of SWIR cameras is expanding rapidly. Yet faced with a wide variety of product specifications and complex technical parameters, selecting the camera that best matches your specific needs remains a challenge for many engineers and procurement decision-makers.

This guide starts from technical principles, systematically covers the key selection parameters for SWIR cameras, typical application scenarios, and decision-making workflows, helping you build a clear selection framework.

1. SWIR Technology Fundamentals

1.1 What Is Short-Wave Infrared

SWIR (Short-Wave Infrared) generally refers to the electromagnetic wavelength range of 900 nm to 1700 nm. This band lies between visible light (380–780 nm) and mid/long-wave infrared (MWIR/LWIR, 3–14 µm). Its imaging principle is similar to visible light — it relies on external light reflected off objects, rather than detecting the objects’ own thermal radiation.

1.2 Key Differences: SWIR vs. Visible Light vs. LWIR

1.3 Core Advantages of SWIR

Non-metallic material penetration: SWIR wavelengths can pass through plastics, silicon wafers, glass, and other materials, enabling imaging of contents inside packaging or internal structures of wafers.

All-weather imaging: SWIR is highly sensitive to near-infrared light sources and can produce clear images in fog, smoke, dust, and other low-visibility environments, making it suitable for all-weather security surveillance.

Concealed defect detection: Can capture sub-surface defects invisible under visible light, such as bruising, moisture distribution, and uneven coatings.

High-contrast imaging: For certain materials (e.g., silicon, plastics), SWIR reveals significantly different reflectance characteristics, achieving far higher contrast than visible light in specific wavelength bands.

No cooling required: InGaAs detectors operate at room temperature, offering smaller size, lower power consumption, and lower maintenance costs compared to cooled MWIR/LWIR detectors.

2. Key Selection Parameters

The core of camera selection lies in understanding how each parameter impacts real-world applications. Below we break down nine key parameters one by one.

2.1 Sensor Type

Selection Advice: MindVision SWIR cameras use InGaAs sensors with a response band covering 900–1700 nm, meeting the imaging needs of most industrial inspection scenarios.

2.2 Resolution and Pixel Size

Selection Advice: For high-precision defect detection (e.g., wafer micro-cracks), prioritize high resolution (640×512 or above). For wide-field surveillance applications, balance resolution against frame rate. Pixel size must match lens resolving power to avoid wasted resolution from mismatched large-format sensors with small pixels.

2.3 Frame Rate

Selection Advice: Frame rate must match your production-line throughput. Excessive frame rates beyond your backend processing capacity result in wasted resources. Evaluate your image processing system’s throughput in tandem with camera selection.

2.4 Sensor Format (Target Size)

The sensor format determines camera–lens compatibility and affects the field of view (FOV) and imaging coverage.

Selection Advice: The sensor format must match the lens’ image circle; otherwise vignetting will occur. Confirm that “lens supported format ≥ camera format” during selection.

2.5 Interface Type

Selection Advice:

Priority on transmission distance, moderate frame rate → GigE Vision

Lab or short-range high-speed inspection → USB 3.0

Ultra-high frame rate and ultra-low latency → CoaXPress

2.6 Wavelength Response Range

Selection Advice: Confirm the characteristic absorption/reflection wavelength of your target detection object, ensuring the camera’s response range matches your detection requirements. MindVision SWIR cameras cover 900–1700 nm, meeting mainstream application needs such as moisture detection (1450 nm absorption peak) and silicon wafer transparency imaging.

2.7 Gain and Exposure Control

Selection Advice: For high-speed inline production-line inspection, a global shutter is essential. In scenes with variable lighting conditions, prioritize models with AGC and multi-step exposure control.

2.8 Operating Temperature Range

Selection Advice: Choose the grade matching your installation environment’s max/min temperatures, with at least a 10°C safety margin. For outdoor or high-temperature workshop scenarios, check whether the camera supports active cooling or requires an enclosure.

2.9 Lens Mount

Selection Advice: SWIR lenses must use dedicated near-infrared corrected optics (visible-light lenses exhibit severe chromatic aberration in the SWIR band). Always confirm that the lens’ wavelength transmission range covers the SWIR band during selection.

3. Typical Application Scenarios

3.1 Semiconductor / Wafer Inspection

Application Challenge: Silicon wafers are opaque under visible light; internal cracks, voids, and other defects cannot be directly observed.

SWIR Advantage: SWIR wavelengths penetrate silicon, enabling high-contrast imaging of internal wafer structures, micro-cracks, and hidden fractures — a key technology for semiconductor wafer inspection.

3.2 Food Sorting and Foreign-Object Detection

Application Challenge: Foreign objects such as plastic fragments, stones, and glass mixed into food are visually similar in color, making visible-light differentiation difficult.

SWIR Advantage: Different materials exhibit distinctly different reflectance characteristics in the SWIR band, enabling efficient separation of food from foreign objects. SWIR can also detect sub-surface defects such as internal bruising and decay in fruit.

3.3 Plastic Recycling and Sorting

Application Challenge: Different plastic types (PET, HDPE, PVC, etc.) appear visually similar; conventional color-sorting methods cannot distinguish them.

SWIR Advantage: Each plastic type has unique spectral absorption features in the SWIR band. Combined with multispectral imaging and algorithms, automatic identification and high-speed sorting of plastic types is achievable.

3.4 Moisture / Humidity Detection

Application Challenge: Material moisture content directly affects product quality (e.g., food, paper, tobacco); traditional detection methods are contact-based and inefficient.

SWIR Advantage: Water molecules have strong absorption peaks near 1450 nm and 1940 nm. SWIR cameras can perform non-contact, real-time detection of moisture distribution on and within material surfaces.

3.5 Laser Beam Analysis

Application Challenge: Common lasers (e.g., 1064 nm Nd:YAG, 1550 nm fiber lasers) operate in the SWIR band, which visible-light cameras cannot directly image.

SWIR Advantage: SWIR cameras can directly image and analyze laser beams in the SWIR band, supporting beam quality assessment, focus optimization, and optical system calibration.

3.6 Security Surveillance (All-Weather)

Application Challenge: Under nighttime, fog, and smoke/dust conditions, visible-light camera image quality drops dramatically.

SWIR Advantage: SWIR is highly sensitive to near-infrared light sources, enabling high-definition nighttime imaging with active IR illumination. SWIR wavelengths penetrate fog, smoke, and dust far better than visible light, making them suitable for border, port, and traffic all-weather surveillance scenarios.

3.7 Artwork / Cultural Heritage Authentication

Application Challenge: Original paintings beneath restoration layers, paper watermarks, and hidden signatures cannot be observed by eye or visible-light imaging.

SWIR Advantage: SWIR can penetrate paint layers and coatings, revealing underlying sketches, repair marks, watermarks, and other hidden information, providing a non-destructive inspection method for cultural heritage authentication and restoration.

4. Selection Decision Workflow

A systematic selection workflow avoids blind decisions. We recommend proceeding through the following four steps:

Step 1: Define Application Requirements

Step 2: Determine Key Parameters

Based on Step 1 requirements, reverse-derive core parameters:

Detection target → wavelength response range

Precision requirement → resolution + pixel size

Production-line speed → frame rate + shutter type

Field of view → sensor format + lens focal length

Step 3: Interface and Environment Adaptation

Data interface: Select interface type based on frame rate needs and transmission distance

Operating temperature: Match temperature grade to installation environment

Lens mount: Confirm lens–format compatibility; use SWIR-specific lenses

Protection rating: Outdoor or harsh environments may require enclosures

Step 4: Budget and Scalability

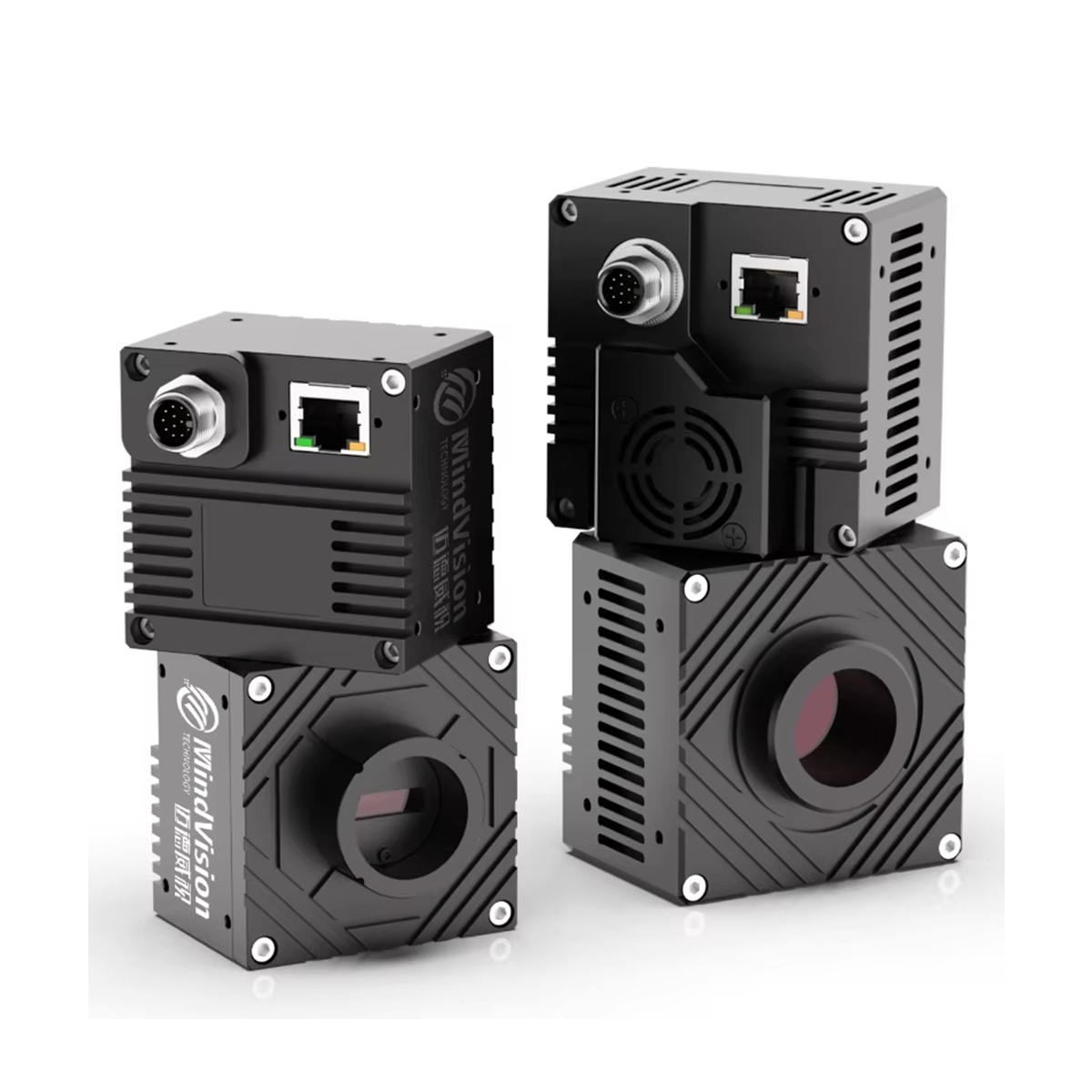

5. MindVision SWIR Product Line Overview

MindVision has been deeply engaged in the machine vision field for many years, accumulating rich engineering experience and product depth in its SWIR camera lineup. MindVision offers SWIR cameras in multiple specifications covering different resolutions, frame rates, and interface requirements, adaptable to semiconductor inspection, food sorting, plastic recycling, security surveillance, and other diverse application scenarios.

MindVision’s product design emphasizes the following capabilities:

Multi-resolution coverage: From economical to high-resolution models, matching different precision and budget needs.

Multi-interface support: GigE Vision, USB 3.0, CoaXPress — mainstream industrial interfaces for easy system integration.

Standard protocol compatibility: Compatible with GigE Vision, GenICam, and other industry standards, reducing software adaptation barriers.

InGaAs sensor: Standard InGaAs sensor with 900–1700 nm response band, covering mainstream SWIR application needs.

Engineering-grade reliability: Industrial-grade thermal design and quality control ensuring long-term stable production-line operation.

6. After-Sales Service and Support

Selection is only the starting point. Long-term stable operation depends on reliable after-sales support. MindVision provides the following service commitments for SWIR camera users:

Warranty Policy

24-month warranty from delivery: Within 24 months from the date of delivery, non-artificial hardware failures are covered by free warranty service.

Free remote technical support: Including software debugging and driver installation, with rapid response to customer technical issues.

1-on-1 Technical Consultation

MindVision offers 1-on-1 professional technical consultation services. Our technical engineers will recommend the most suitable camera model and配套 solution (including lenses, light sources, software, etc.) based on your specific application scenario, detection requirements, and budget range — avoiding rework and waste from misselection.

Whether you are in the pre-research phase of a project or need to replace an existing camera for a production-line upgrade, you are welcome to contact our technical team at any time for professional advice.

Contact Us

MindVision

Website: https://www.mindvision.ltd

Email: globalmarket@mindvision.com.cn

1-on-1 Technical Consultation: Contact us via email or our website for dedicated selection advice and technical support.

Warranty: 24-month warranty from delivery + free remote technical support.
