2. Software Installation Guide

2.1 Installation Steps

1. Install Third-Party Software (Optional)If you plan to use Halcon, LabVIEW, Digimizer, Image-Pro Plus, or Scope Photo, install them first. Skip if you only need the MindVision demo application.
2. Run the Setup PackageDouble-click XXXX Platform Setup(x.x.x.x).exe (x.x.x.x is the version number). On first run, select Chinese(Simplified) or English from the dropdown, then click OK.

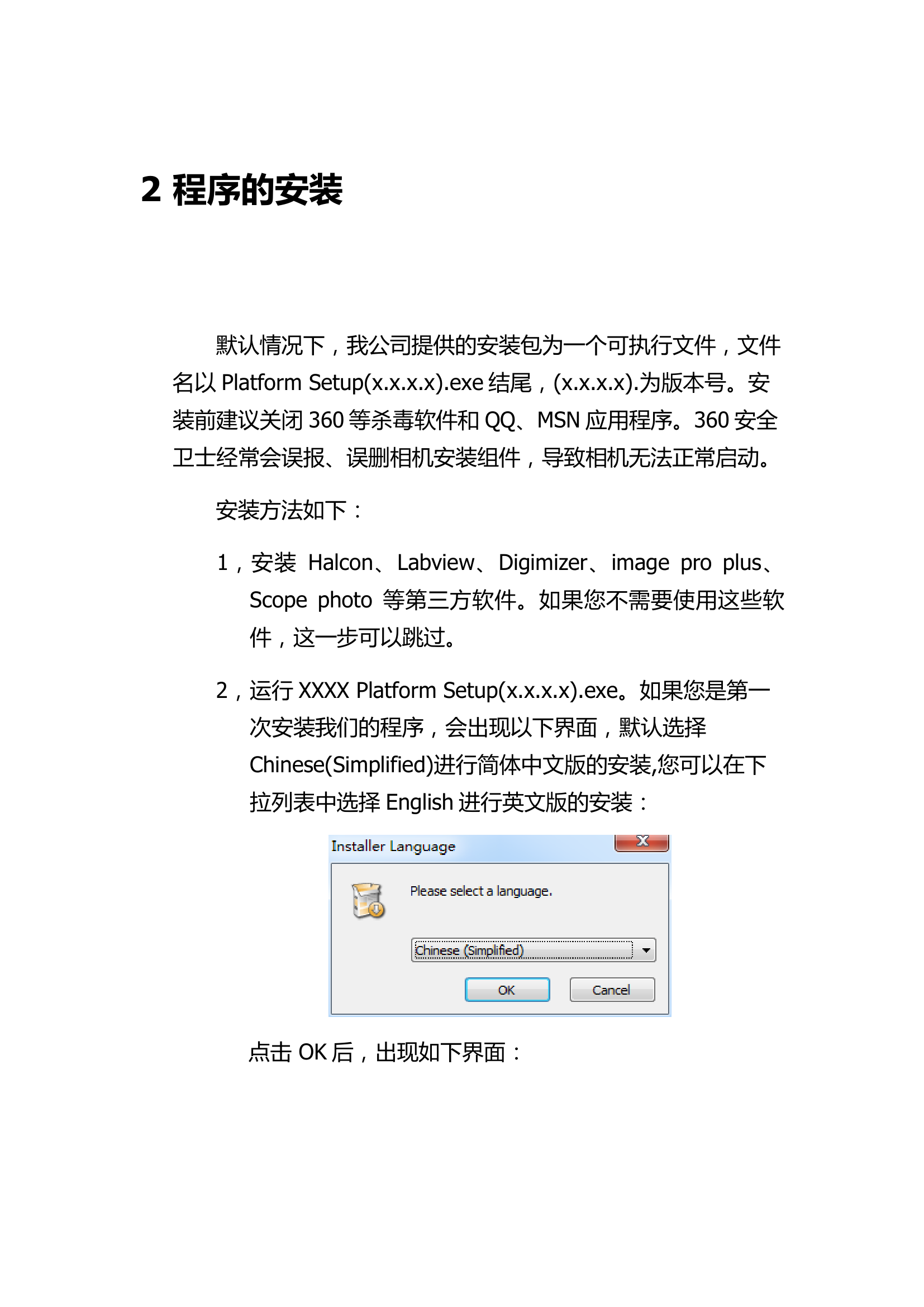

Fig. 2.1: Language selection during initial setup

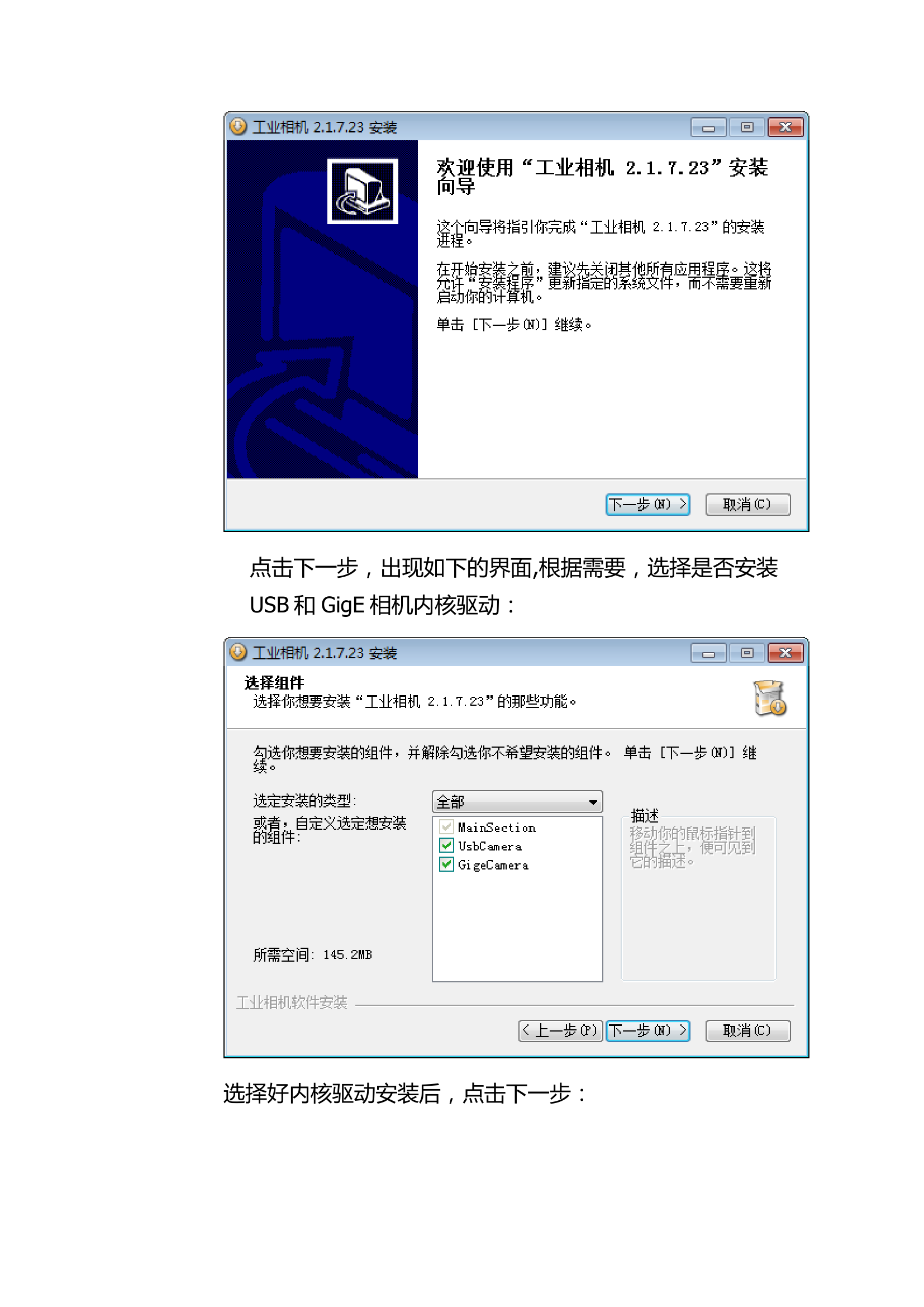

3. Select Camera Kernel DriversCheck the boxes for the camera interfaces you intend to use — USB camera kernel driver and/or GigE camera kernel driver.

Fig. 2.2: Choosing which kernel drivers to install

4. Set the Installation PathClick Browse to choose the target directory, then click Next.

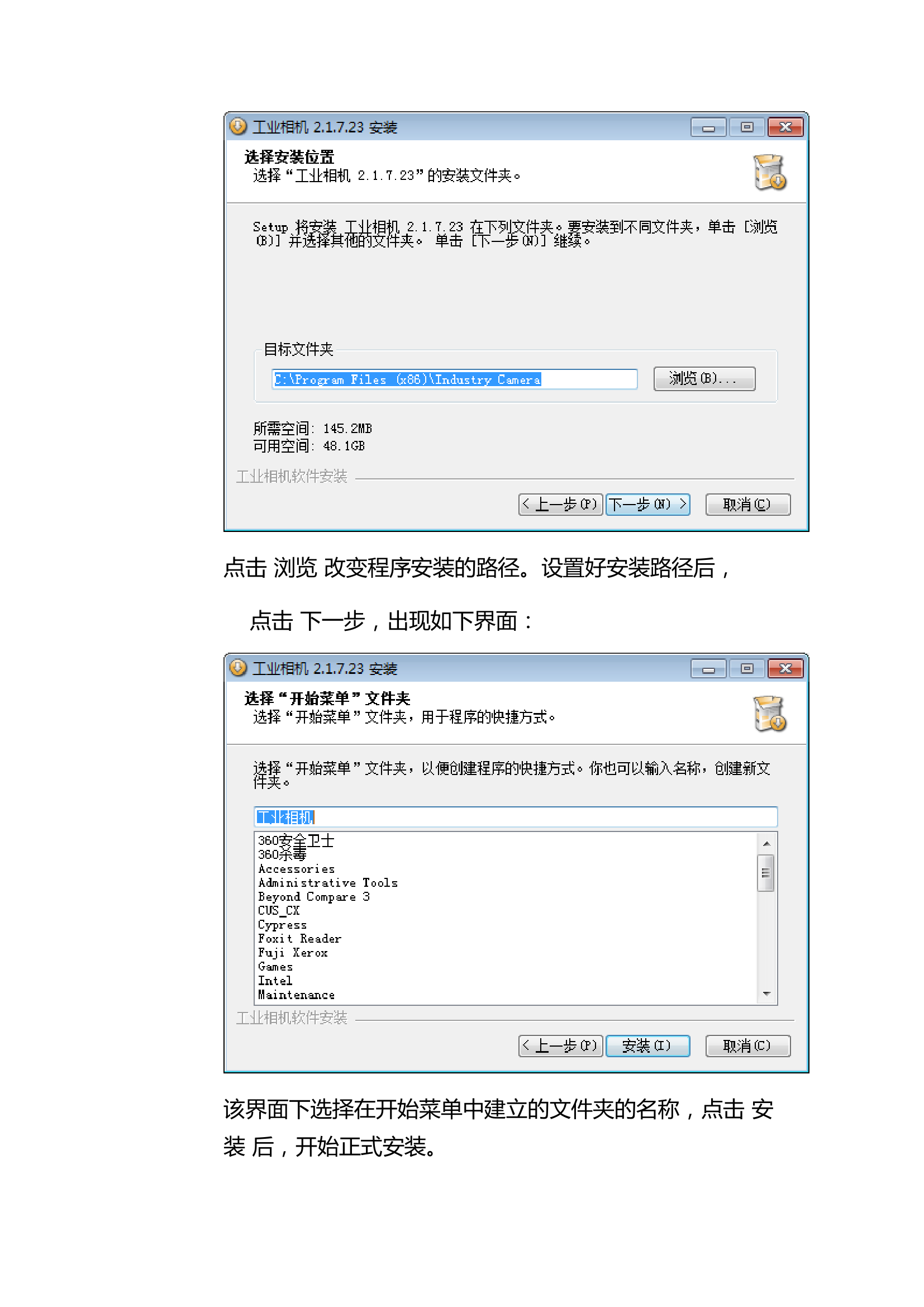

Fig. 2.3: Setting the installation directory

5. Begin InstallationChoose a Start Menu folder name, then click Install and wait for the progress bar to complete.

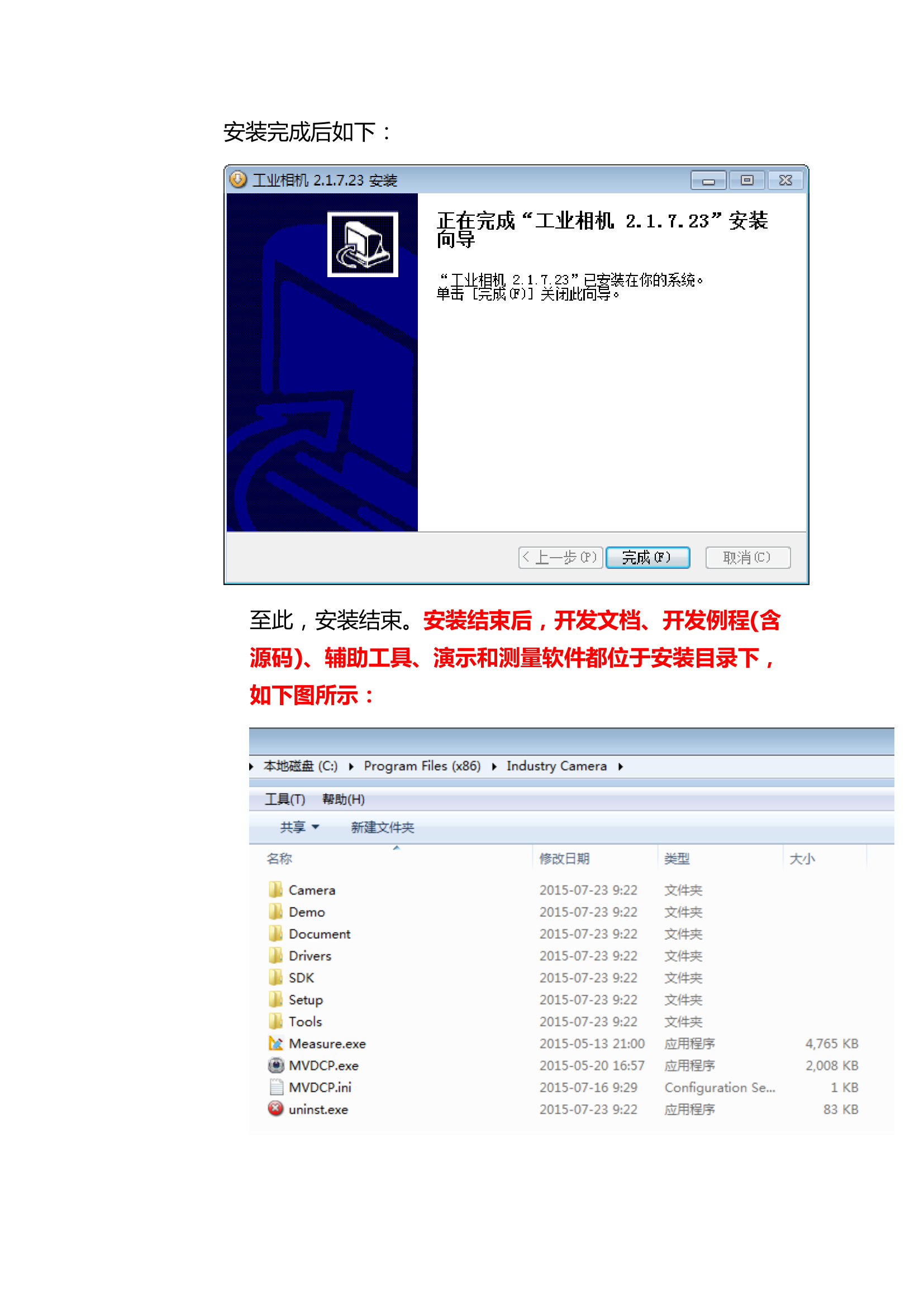

Fig. 2.4: Installation complete — demo program, dev docs, sample code, and utilities are all deployed

6. Connect the Camera and Install the Device DriverFor USB cameras: connect the camera to the PC via the USB cable. When Windows prompts for driver installation, click Next to let the system search and install automatically. Once installed, reconnecting the same camera model will be automatic — no pop-ups.

3. Demo Software Tutorial

After installation, connect the camera to your PC and double-click Demo Program.exe on the desktop. The software automatically searches for and initializes all connected cameras.

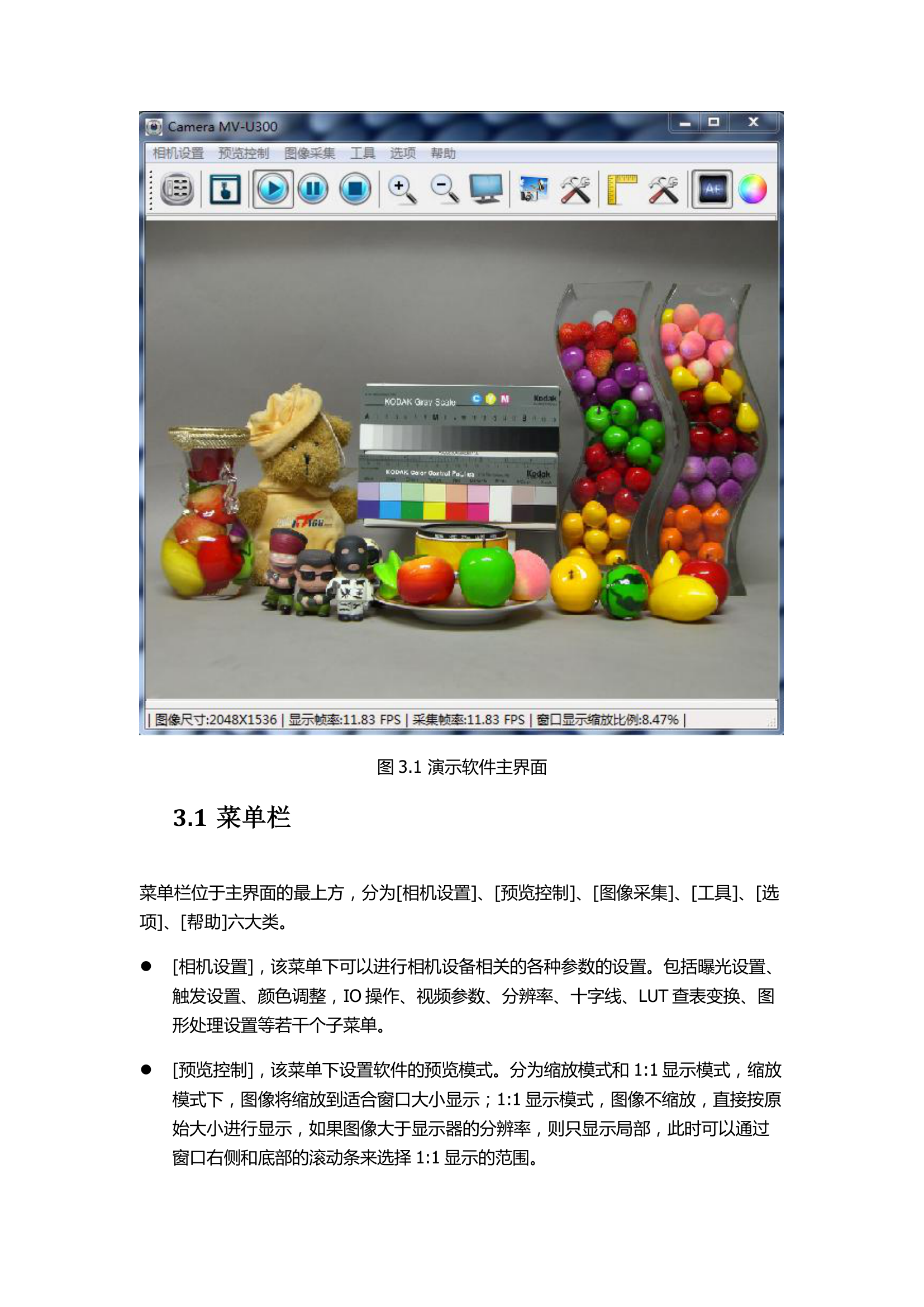

Fig. 3.1: Main interface — menu bar, toolbar, live preview area, and status bar

3.1 Menu Bar

The menu bar at the top organizes all functionality into six categories:

3.2 Toolbar

The toolbar sits below the menu bar, providing one-click access to frequently used functions:

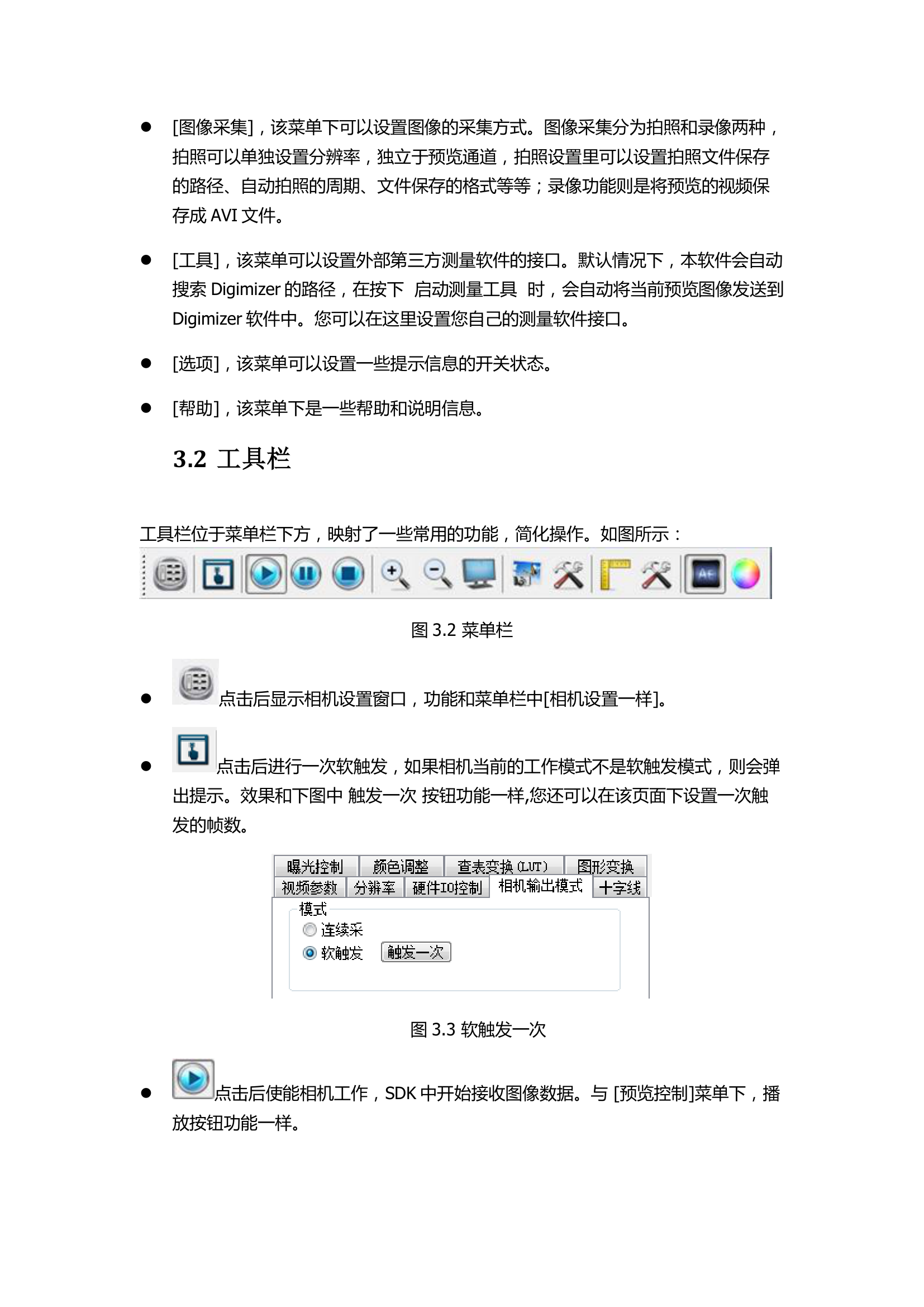

Fig. 3.2: Toolbar buttons and the soft-trigger configuration panel

3.3 Live Preview & Context Menu

The preview area supports two display modes. Right-clicking opens a context menu. Selecting 1:1 Display Mode from the right-click menu centers the view on the click location — ideal for zooming into a specific region of interest.

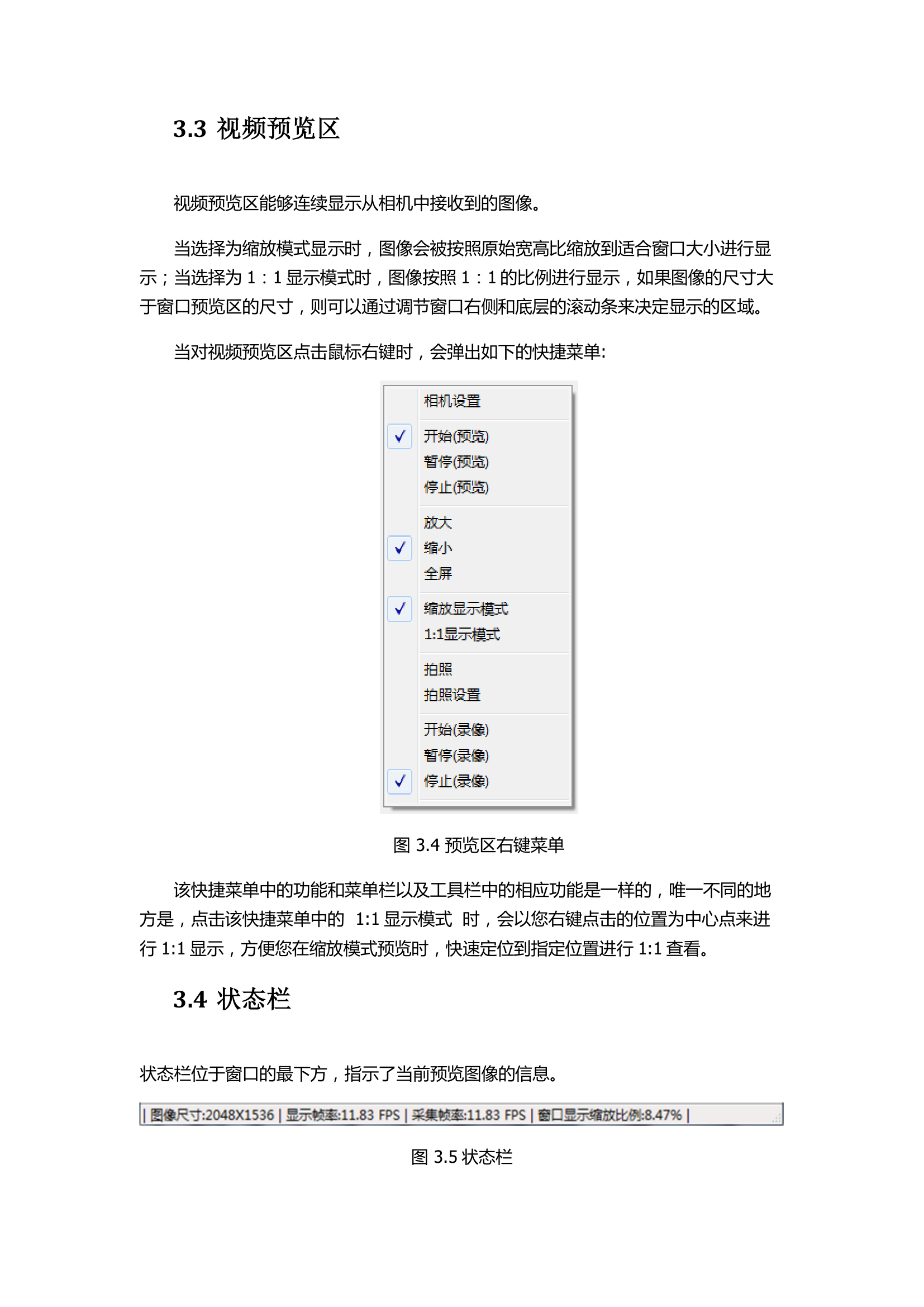

Fig. 3.3: Right-click context menu & status bar (showing image dimensions, frame rate, and zoom ratio)

4. Using the DirectShow Interface

DirectShow is the universal video interface standard on Windows. Nearly all commercial imaging software — including Scope Photo, Image-Pro Plus, Halcon, and LabVIEW — accesses capture devices through DirectShow.

Below is a complete walkthrough using Scope Photo + the U300 USB 2.0 camera:

1. Connect the Hardware Use the data cable to connect the camera to your PC.
2. Launch & Detect Open Scope Photo. The connected camera appears under the Live Capture section.

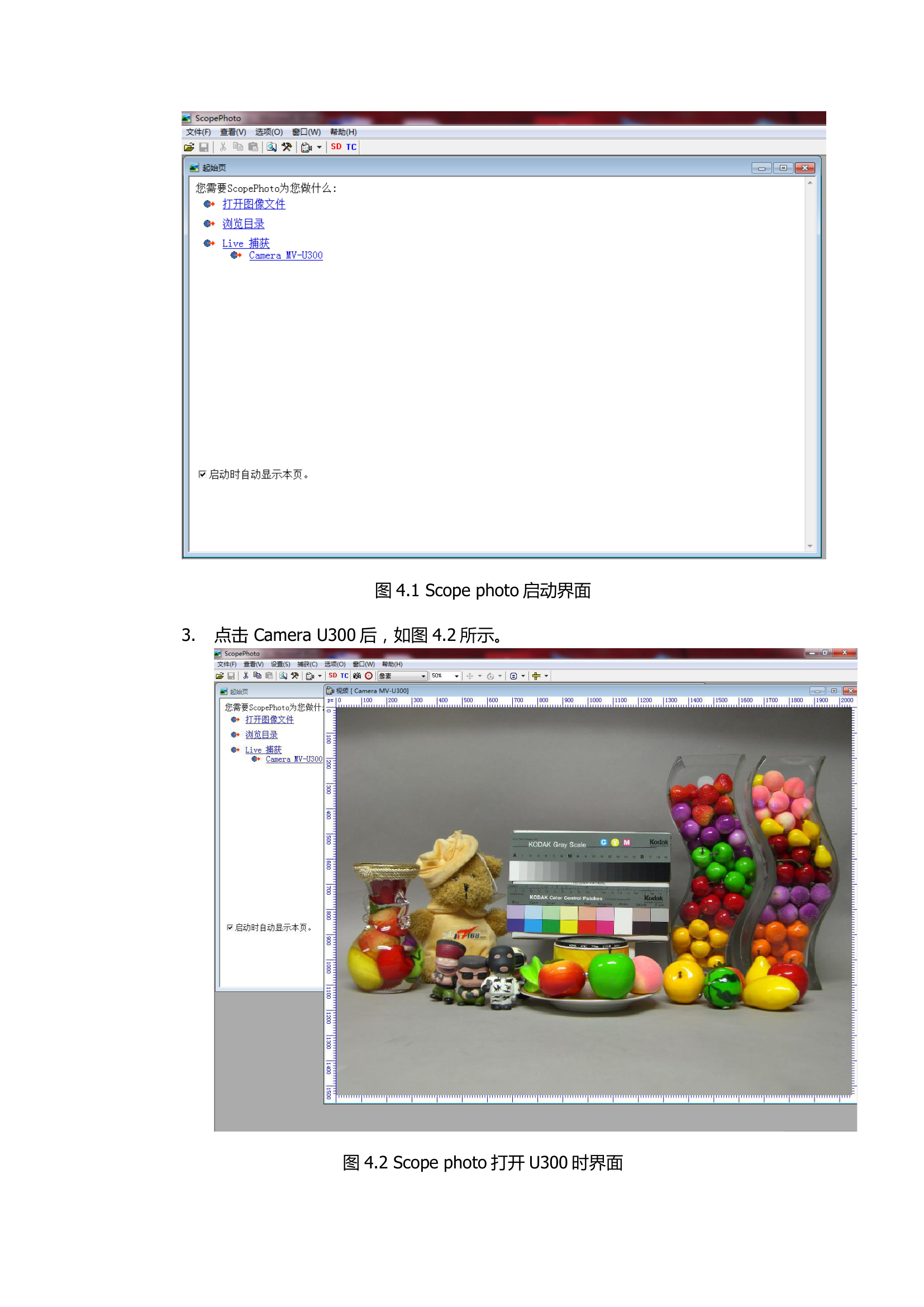

Fig. 4.1: Scope Photo launch screen — the U300 camera is auto-listed under "Live Capture"

3. Configure Camera ParametersGo to Settings → Video Source Properties. This opens the camera configuration window where you can adjust exposure, color, resolution, and all other parameters.

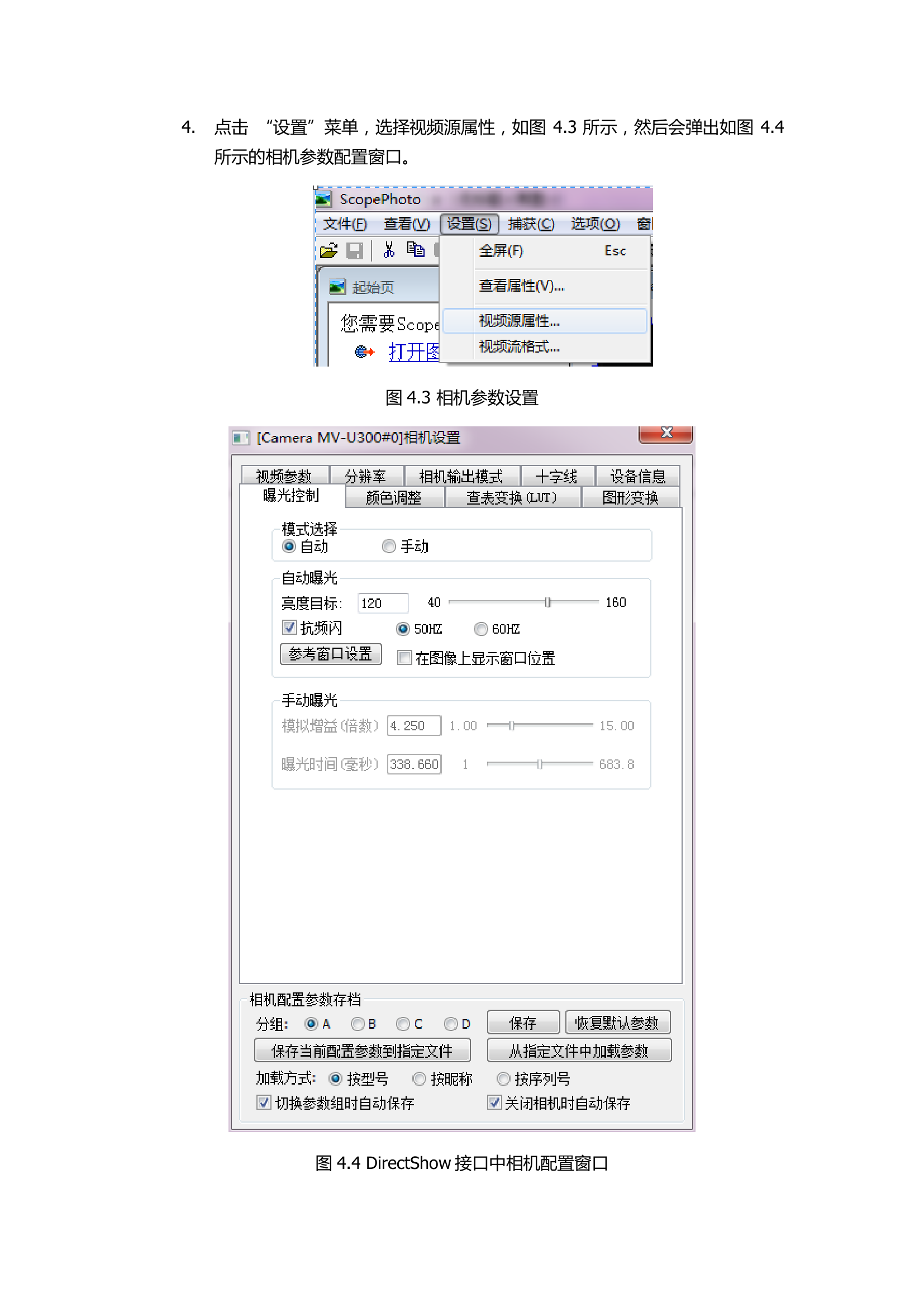

Fig. 4.2: Camera configuration window under DirectShow — same unified interface as the demo application

4. Set Video ResolutionGo to Settings → Video Stream Format. Choose the desired resolution from the list.

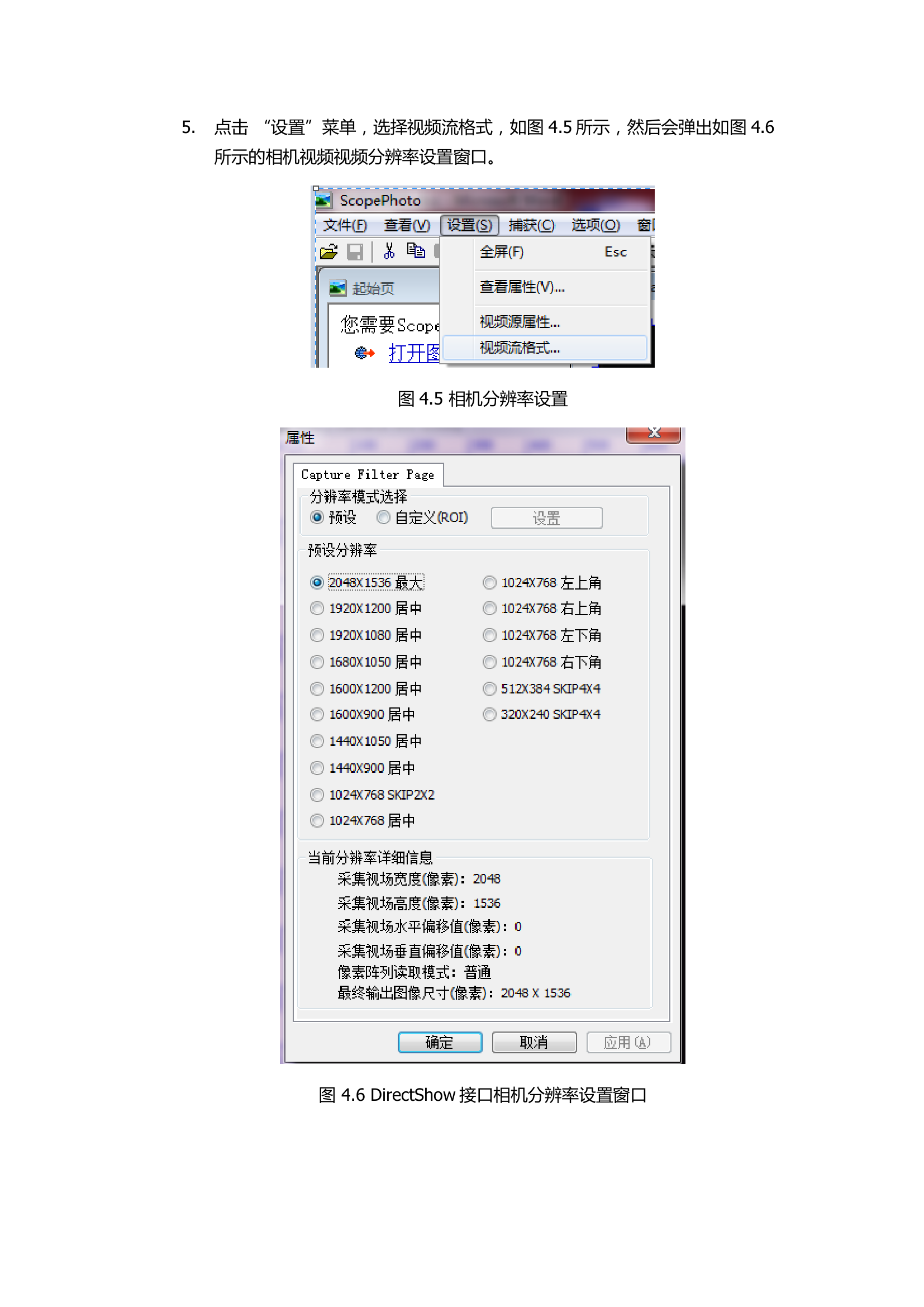

Fig. 4.3: Resolution selection window under DirectShow

5. TWAIN Interface — Cross-Platform Image Acquisition

TWAIN is another major image acquisition standard. The key difference from DirectShow: TWAIN is cross-platform, working on Windows, Linux/Unix, and macOS. Below we demonstrate TWAIN integration in three popular applications.

5.1 Using TWAIN in Adobe Photoshop

1. Connect the camera to your PC via the data cable.
2. Open Photoshop, go to File → Import, and select the camera from the device list.
3. In the TWAIN preview window, adjust the frame and click Capture. The image is imported directly into Photoshop.

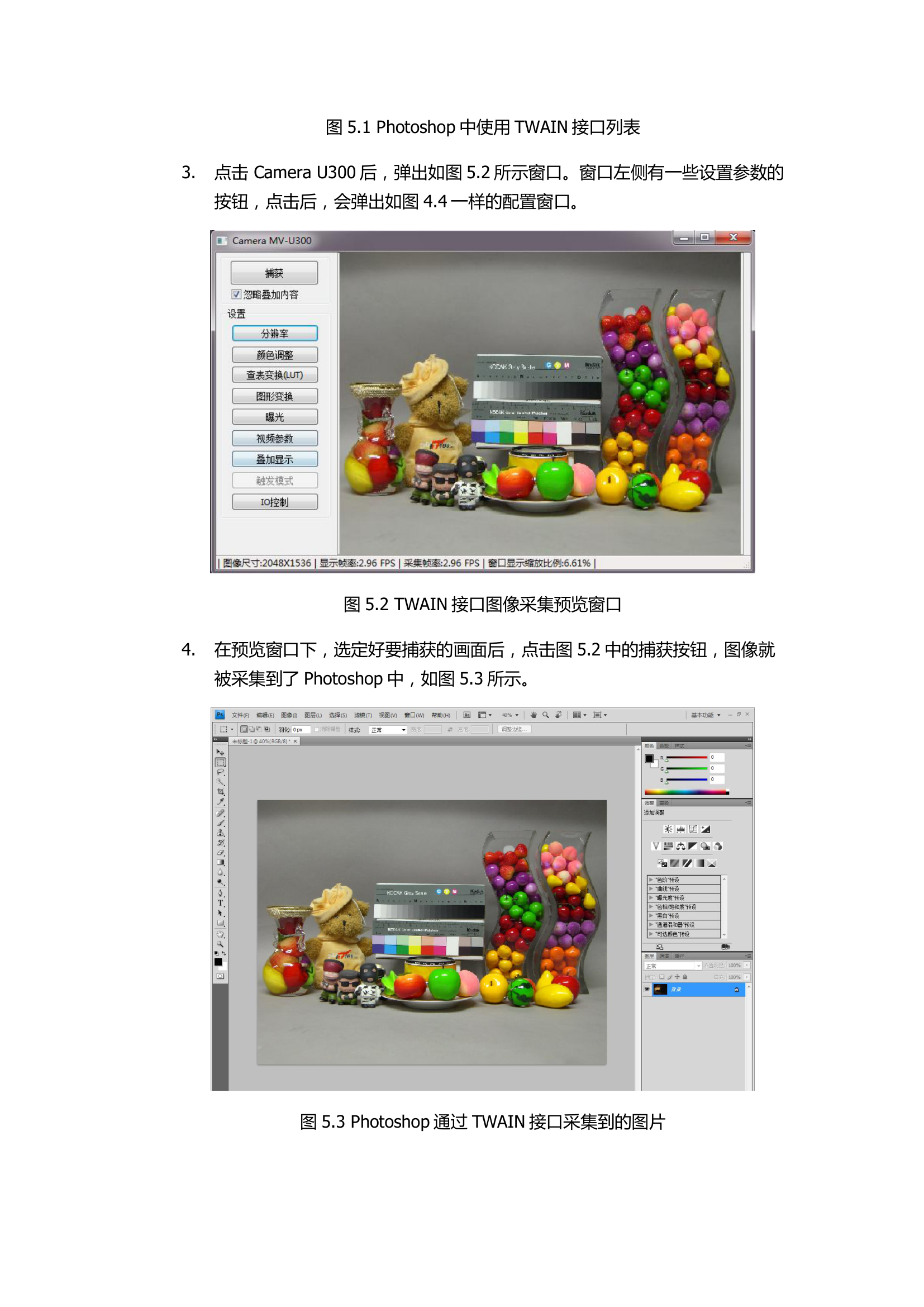

Fig. 5.1: Acquiring images via TWAIN in Adobe Photoshop

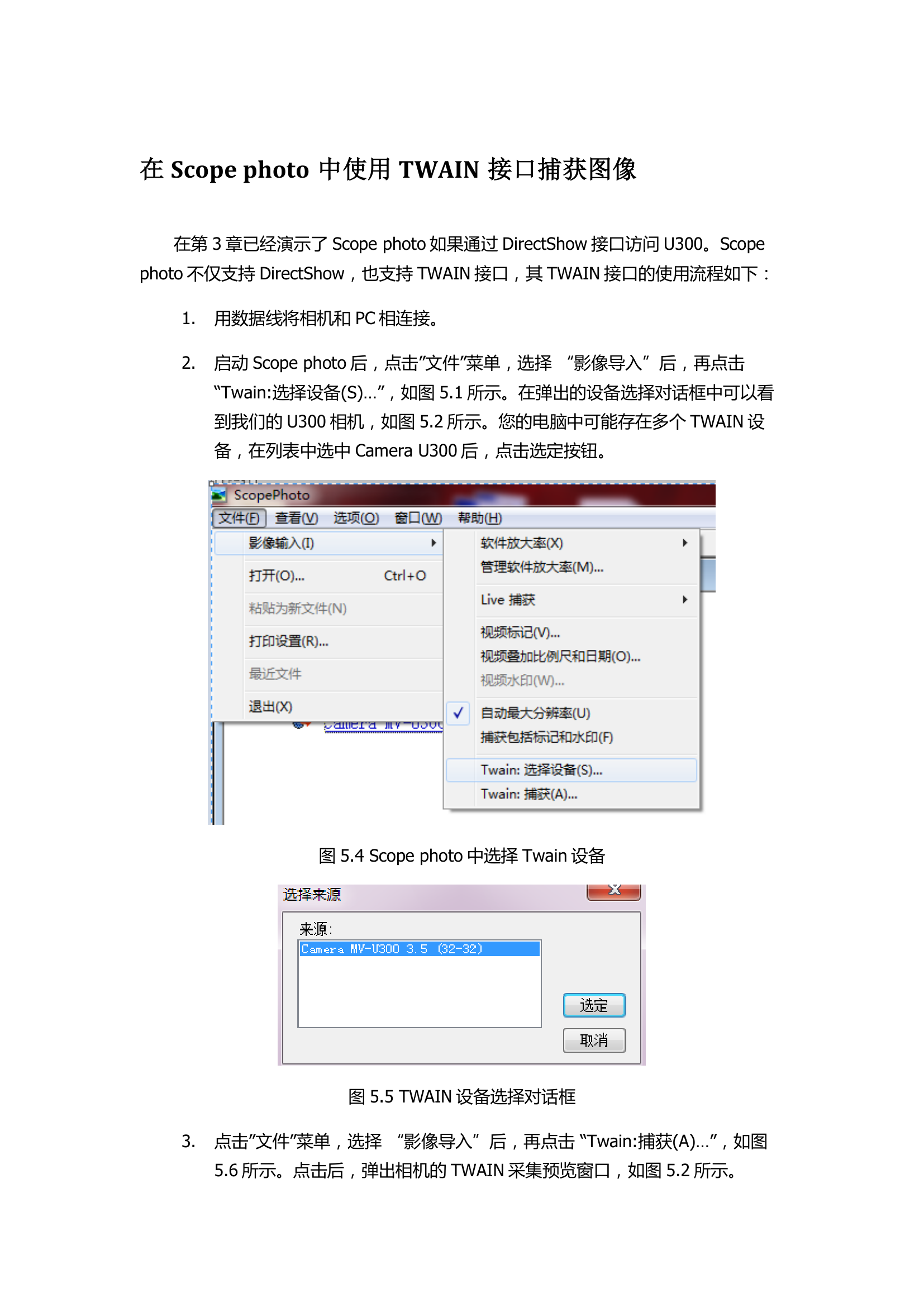

5.2 Using TWAIN in Scope Photo

Scope Photo supports both DirectShow and TWAIN simultaneously:

1. Go to File → Image Import → Twain: Select Device(S)… and choose your camera.
2. Go to File → Image Import → Twain: Acquire(A)… to open the preview window.
3. Adjust the frame and click Capture. The image is imported into the Scope Photo workspace.

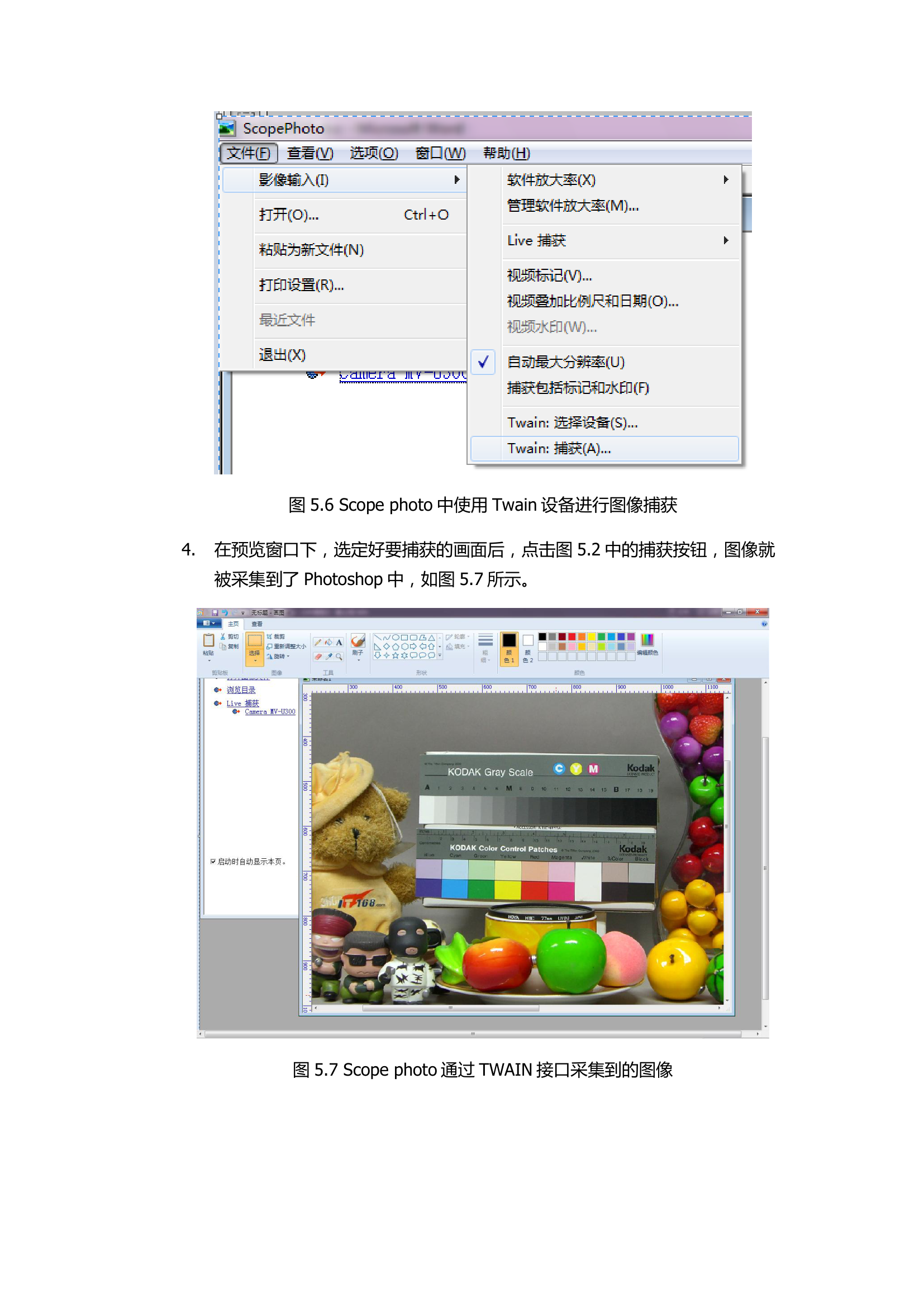

Fig. 5.2: Selecting a TWAIN device in Scope Photo

Fig. 5.3: Image captured via TWAIN in Scope Photo

5.3 Using TWAIN in Image-Pro Plus

Image-Pro Plus is a globally recognized scientific image analysis platform:

1. Go to Acquire → Select Scanner… and choose the camera.
2. Go to Acquire → Scan… to open the TWAIN preview window.
3. Adjust and capture — the image is ready for analysis in Image-Pro Plus.

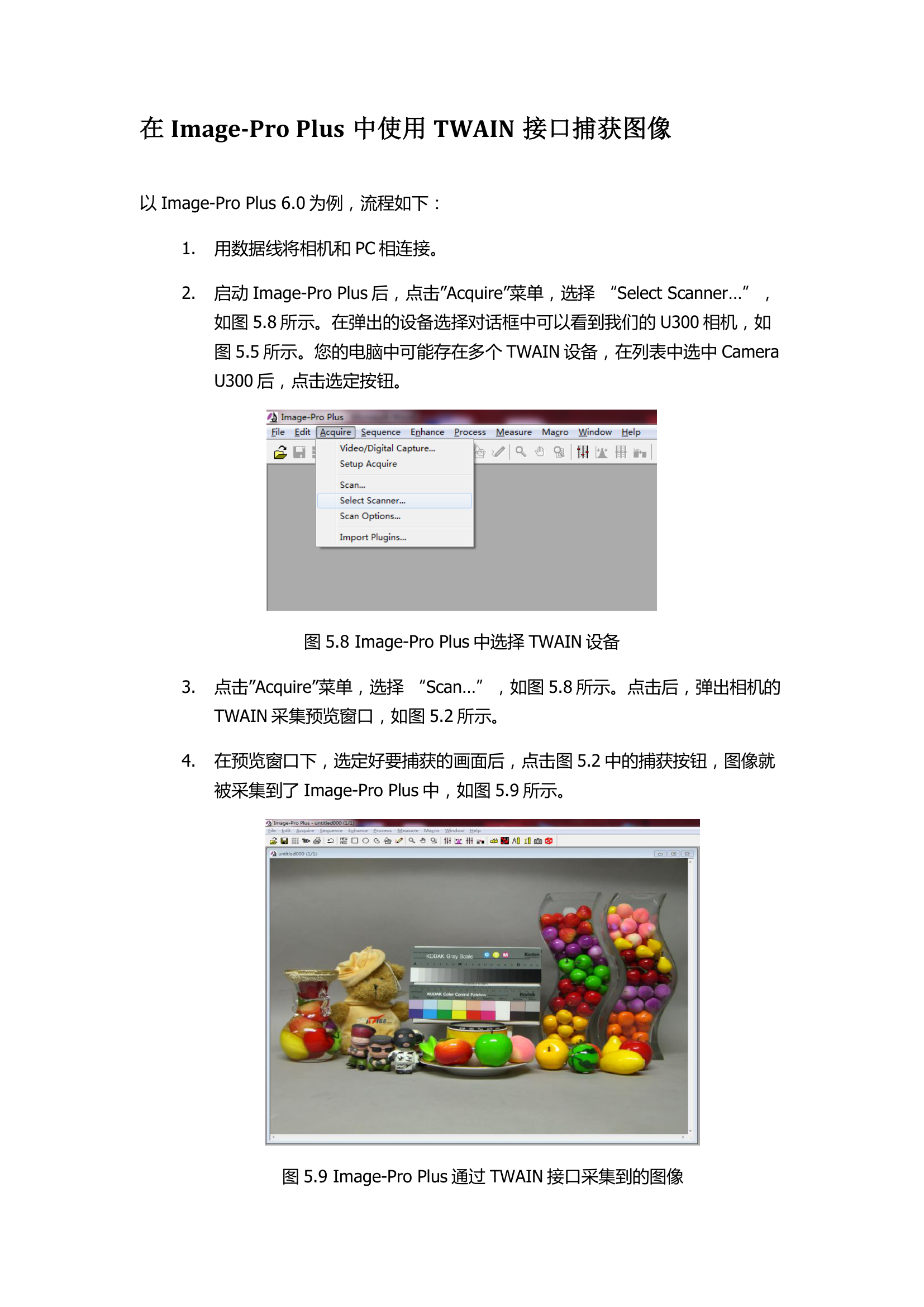

Fig. 5.4: Image acquisition via TWAIN in Image-Pro Plus

6. Third-Party Software Integration & SDK Development

6.1 Halcon Interface

MindVision cameras offer native Halcon support. For detailed instructions, refer to Chapter 5 of the Industrial Camera Development Manual in the Document folder of your installation directory.

6.2 LabVIEW Interface

LabVIEW users can find complete integration steps and examples in Chapter 6 of the Industrial Camera Development Manual.

6.3 VisionPro Interface

Currently, only GigE cameras (model prefix MV-GE) support VisionPro. See Chapter 7 of the development manual for full details.

6.4 SDK Custom Development

If standard interfaces still don't meet your project requirements, MindVision provides full SDK-level development support. The SDK folder includes the development manual and multiple example projects with complete source code, covering image acquisition, parameter configuration, multi-camera management, and more — ready for quick prototyping.

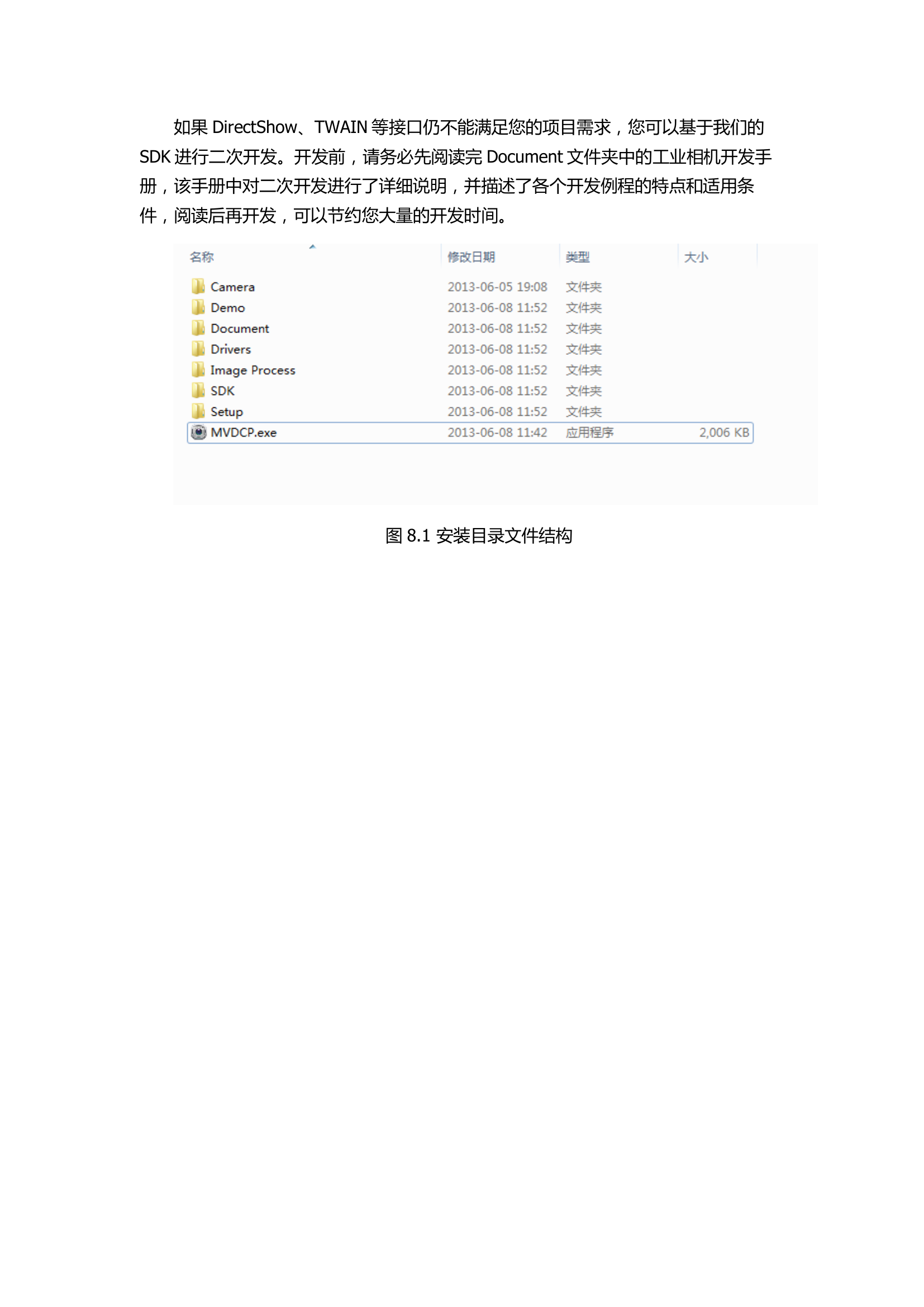

Fig. 6.1: Installation directory structure — SDK and development resources overview
