Industrial Cameras for Textile Yarn Winding Inspection: A Complete Selection Guide

1. Introduction: Yarn Winding Inspection — The Last Line of Quality Defense in Textile Manufacturing

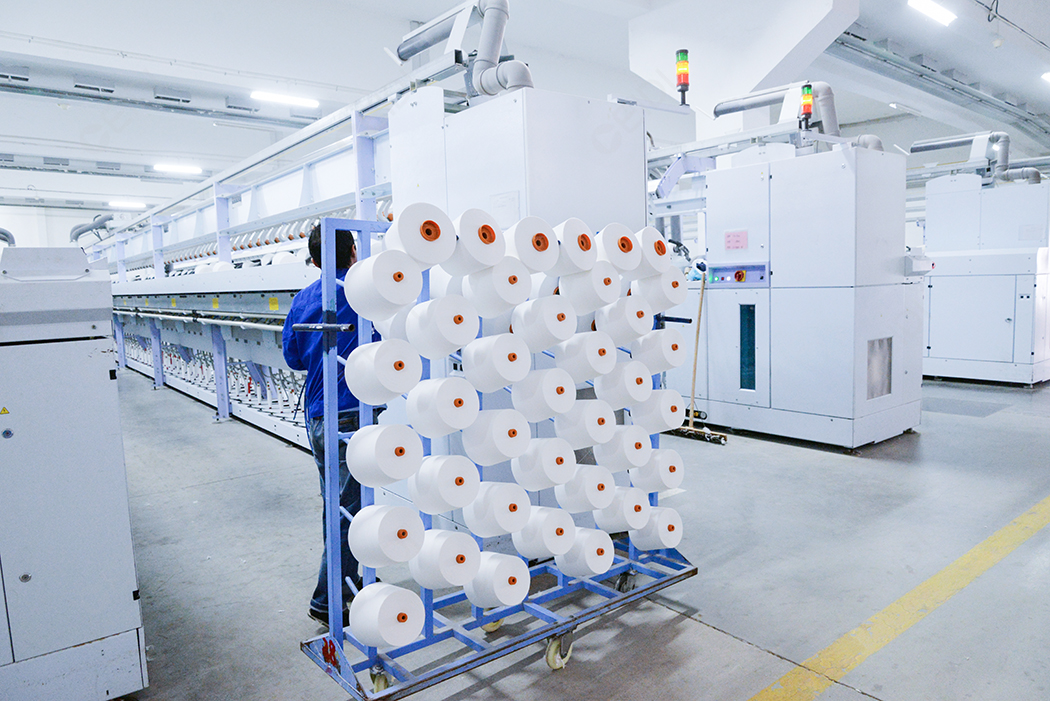

Yarn winding is the critical final stage in the spinning process, where yarn is transferred from bobbins onto cone packages ready for downstream weaving, knitting, or dyeing. It is also the stage where virtually all upstream quality issues — from spinning irregularities to contamination — converge and become visible. A single undetected defect at this stage can cascade into kilometers of defective fabric, costly rework, and customer claims.

The pain points in traditional yarn winding inspection are well documented:

• 🔴 Undetected yarn breaks: At winding speeds of 800–1,500 m/min, a broken yarn that goes unnoticed for even a few seconds produces significant waste
• 🟠 Yarn evenness variations: Thickness fluctuations cause fabric streaks, barre defects, and uneven dye absorption
• 🟢 Winding formation defects: Ribboning, webbing, convex edges, and slack winds reduce unwinding efficiency and cause downstream breakages
• ⚪ Foreign matter contamination: Fly, fused fibers, and abnormal splices degrade yarn grade and fabric appearance

• 🔵 Color inconsistency in dyed yarn: Batch-to-batch color deviation triggers customer complaints and returns




Conventional inspection relies on operators performing visual patrols — an approach that achieves less than 30% coverage on a winding line with dozens or hundreds of spindles. Sustained high-intensity visual attention leads to fatigue-driven false judgments, and critical defects slip through during shift changes or breaks. As textile manufacturers worldwide pursue automation and digital transformation, industrial camera-based machine vision systems have become the preferred solution for intelligent yarn winding inspection.

2. Technical Principles and Core Inspection Tasks

Yarn winding inspection using machine vision involves non-contact, high-speed, continuous image acquisition and intelligent analysis of yarn and its winding formation. Depending on the inspection target and timing, the core tasks fall into six categories:

2.1 Yarn Break Detection 🢤

Yarn breakage is the most frequent and most damaging defect in winding. At high speeds (800–1,500 m/min), yarn can snap due to tension fluctuations, weak sections, or splice failures. Yarn break detection demands cameras with exceptionally high line rates or frame rates, capable of capturing the break event within milliseconds and triggering an immediate machine stop.

• Detection method: Line scan cameras continuously scan the yarn path; a break produces a "blank line" or terminal point in the image
• Response requirement: Break-to-stop latency ≤ 50 ms
• Key technologies: Encoder-synced triggering, hardware ROI, high-speed image preprocessing

2.2 Yarn Evenness Monitoring 📐

Evenness reflects the consistency of yarn diameter along its length and is a fundamental quality metric. Yarn evenness detection uses line scan cameras to capture continuous side-profile images, computing diameter variation curves, coefficient of variation (CV%), and imperfection counts (thin places, thick places, neps).

• Measurement precision: Diameter accuracy ≤ 5 µm
• Output metrics: CV%, thin places, thick places, neps per kilometer
• Key technologies: High-resolution line scan imaging, sub-pixel edge detection algorithms

2.3 Winding Defect Detection 🔄

The physical formation of the cone package directly affects unwinding performance and downstream processing quality. Common winding defects include:

• Detection method: Area scan cameras capture the full package surface; deep learning models classify defects
• Key technologies: Global shutter area scan imaging, CNN-based defect classification

2.4 Foreign Matter and Contamination Detection 🔎

Fly, fused fibers, abnormal splices, and other contaminants affect fabric appearance and dye uniformity. Foreign matter detection must capture micron-scale anomalies on yarn moving at high speed.

• Detection method: High-resolution line scan camera with specialized illumination (backlight or coaxial)
• Typical target size: 0.1–2 mm
• Key technologies: 8K high-resolution line scan, TDI for enhanced SNR, deep learning classification

2.5 Hairiness Assessment 🪶

Hairiness — the fiber ends protruding from the yarn surface — influences fabric hand feel, luster, and dye absorption. Hairiness detection uses side illumination to create high-contrast silhouettes of protruding fibers against a dark background, quantifying hair length and density.

• Detection method: Line scan camera with lateral LED illumination
• Output metrics: Hairiness index (H value), hair length distribution

2.6 Color Consistency Detection 🎨

For dyed yarn, color uniformity within and across batches is a critical quality parameter. Color consistency detection requires a color line scan camera to capture precise RGB data from moving yarn and compare it against standard references.

• Detection method: Color line scan camera (RGB tri-linear true color output)
• Output metrics: ΔE color difference value, color fastness grade
• Key technologies: RGB tri-linear true color imaging, CIELAB color space conversion

3. Line Scan vs. Area Scan: Different Roles in Yarn Winding Inspection

In yarn winding inspection, industrial cameras divide into two fundamental categories — line scan cameras and area scan cameras — each with distinct operating principles and optimal use cases.

3.1 Line Scan Cameras: The Continuous Scanner

Line scan camera sensors consist of one or more rows of pixels. Each exposure captures a single line of image data. As yarn moves rapidly through the camera's field of view, the line scan camera scans line by line at extremely high line rates, assembling consecutive lines into a continuous "unrolled" image of the yarn. This operating mode naturally matches the continuous-motion characteristic of the winding process, making line scan cameras the core device for yarn break detection, evenness monitoring, hairiness assessment, and foreign matter detection.

• ✅ Key strengths: Extremely high line rates (up to 200 kHz); high resolution (8K/4K) for wide field coverage
• ✅ Typical applications: High-speed winding line online inspection, continuous yarn evenness monitoring

3.2 Area Scan Cameras: The Snapshot Inspector

Area scan camera sensors use a 2D pixel array, capturing a complete image in a single exposure. In yarn winding inspection, area scan cameras are primarily used for full-view imaging of stationary or slow-moving targets — such as cone yarn package appearance inspection and workstation status monitoring.

• ✅ Key strengths: Single-frame full image capture, no motion stitching required; global shutter prevents distortion
• ✅ Typical applications: Cone package formation inspection, label verification, workstation monitoring

3.3 Comparison Table

💡 Selection Insight: A complete winding inspection line typically requires both line scan and area scan cameras in combination — line scan for continuous in-process yarn inspection, area scan for finished cone package appearance check.

4. Application Scenarios with Specific Camera Models

The following sections detail six typical application scenarios using specific MindVision industrial camera models.

Scenario 1: High-Speed Yarn Break Detection → MV-GEL41M / MV-XGL83M

Scenario 2: Dyed Yarn Color Consistency Inspection → MV-GELM44C

Scenario 3: Micro-Defect Detection (Hairiness / Fly / Impurity) → MV-GEL83BM

Scenario 4: Cone Yarn Package Appearance Inspection → MV-GE131GC

Scenario 5: Internal Structure Penetration Detection → MV-GEL20I (Optional)

Scenario 6: Extreme-Speed Production Line → MV-PEL83DM (Optional)

5. System Architecture and Selection Guide

5.1 Typical Yarn Winding Inspection Vision System Architecture

A complete machine vision system for yarn winding inspection comprises five layers:

5.2 Core Camera Selection Parameters

5.3 Line Scan vs. Area Scan Decision Flow

6. MindVision Solutions and Configuration Packages

MindVision offers a comprehensive product matrix spanning 2K–8K resolution, GigE / 10GigE / PCIe interfaces, and mono / color / SWIR spectral coverage. The following three configuration packages address different production line scales and inspection requirements:

🔗 For more information on MindVision industrial camera products, visit the MindVision official website.

7. FAQ: Frequently Asked Questions

8. Conclusion and Future Outlook

Yarn winding inspection represents the critical transition from manual quality checking to intelligent automated inspection in the textile industry. Industrial cameras — as the core sensing devices in machine vision systems — play an irreplaceable role across yarn break detection, evenness monitoring, winding defect identification, hairiness assessment, color consistency verification, and cone package appearance inspection.

MindVision's product matrix, spanning 2K–8K resolution, GigE / 10GigE / PCIe interfaces, and mono / color / SWIR spectral coverage, provides precisely matched camera solutions for winding inspection scenarios of every speed class and detection requirement. From the economy 4K line scan MV-GEL41M to the extreme-speed PCIe line scan MV-PEL83DM, from the color TDI line scan MV-GELM44C to the SWIR penetration camera MV-GEL20I — each model is engineered to address specific inspection pain points.

Looking ahead, as deep learning defect detection algorithms mature and edge computing capabilities advance, yarn winding inspection systems will evolve toward adaptive, self-learning, zero-miss inspection. The continuous improvement of industrial camera resolution, speed, and spectral coverage will provide a solid hardware foundation for the textile industry's intelligent transformation worldwide.
