Industrial Cameras for AI Smart Optical Module Inspection: A Complete Guide

2026-07-31 10:09


Industrial Cameras for AI Smart Optical Module Inspection: A Complete Guide | MindVisions power AI smart optical module inspection—from fiber end-face defect detection to SWIR internal chip imaging. Explore MindVision's machine vision solutions for 400G–1.6T optical transceiver manufacturing.", "author": { "@type": "Organization", "name": "MindVision" }, "publisher": { "@type": "Organization", "name": "MindVision", "url": "https://www.mindvision.ltd" }, "datePublished": "2026-07-30" }

Industrial Cameras for AI Smart Optical Module Manufacturing and Inspection: A Complete Guide

By MindVision · Published July 2026 · www.mindvision.ltd

1. Introduction

The explosive growth of AI-driven data centers and 5G networks has placed unprecedented demands on optical communication infrastructure. At the heart of this infrastructure are AI smart optical modules—next-generation optical transceivers that integrate AI processing capabilities for real-time link monitoring, self-diagnostics, and adaptive performance optimization.

As data rates escalate from 400G to 800G and toward 1.6T, manufacturing tolerances shrink to the sub-micron level. A single fiber connector scratch as small as 0.5 μm can degrade signal integrity across an entire data center rack. Traditional manual inspection methods—once adequate for 10G/25G modules—simply cannot keep pace with the precision, throughput, and reliability requirements of modern AI smart optical module production.

This is where industrial cameras come in. Machine vision systems built on high-performance industrial cameras have become the backbone of automated optical module inspection, enabling manufacturers to detect defects that are invisible to the human eye, maintain 24/7 production continuity, and achieve the yield rates demanded by hyperscale data center operators.

In this comprehensive guide, we explore how industrial cameras are deployed across the entire AI smart optical module manufacturing pipeline—from fiber end-face inspection to 3D coplanarity measurement—and provide a practical selection framework for engineers and procurement teams.

📌 Internal Link: Learn more about MindVision's full industrial camera portfolio at https://www.mindvision.ltd

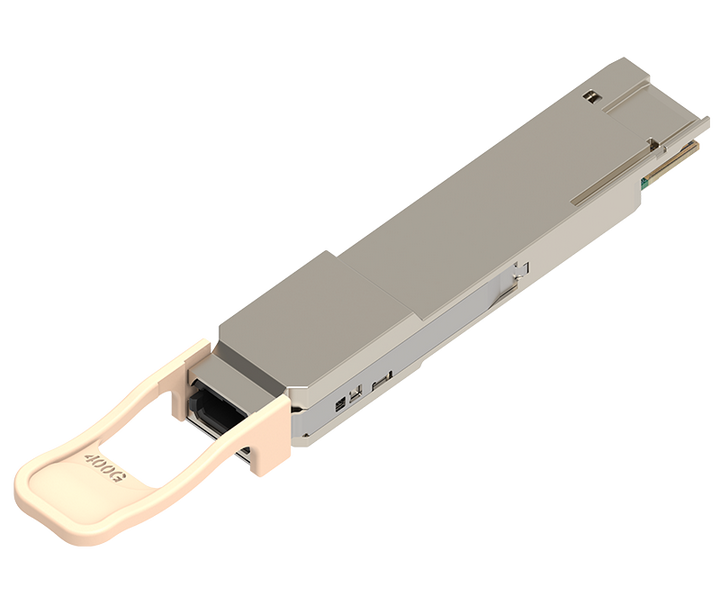

2. What Are AI Smart Optical Modules?

2.1 Definition & Core Features

AI smart optical modules are optical transceiver units that embed AI processing chips alongside traditional optical transmit/receive components. Unlike conventional transceivers that simply convert electrical signals to optical signals and vice versa, AI smart modules add an intelligence layer that enables:

FeatureDescriptionManufacturing Implication
Digital Diagnostic Monitoring (DDMI)Real-time monitoring of temperature, optical power, bias current, and supply voltageRequires precise internal sensor placement and alignment verification
Self-DiagnosticsAutonomous fault detection and link health reportingDemands flawless wire bonding and solder joint integrity
Adaptive Power AdjustmentDynamic optimization of launch power based on link conditionsInternal chip positioning accuracy directly affects calibration
Predictive MaintenanceML-based prediction of component degradationRequires consistent manufacturing quality for reliable baseline data
Temperature CompensationSignal optimization across operating temperature rangeThermal management structures need precise geometric verification

2.2 Market Trends: 400G → 800G → 1.6T

The optical transceiver market is undergoing a generational shift driven by AI workloads:

  • 400G modules are now mainstream in hyperscale data centers, with QSFP-DD and OSFP form factors dominating.
  • 800G modules are in rapid adoption, requiring tighter manufacturing tolerances and more complex internal structures.
  • 1.6T modules are on the horizon, featuring CPO (Co-Packaged Optics) architectures that integrate optical engines directly with switch ASICs—blurring the line between module and system.

Each generational leap multiplies inspection complexity. An 800G module's MPO connector may contain 16 or even 32 fiber cores in a ferrule smaller than a fingernail, each requiring individual end-face quality verification. This is impossible without high-resolution industrial cameras.

3. Why Industrial Cameras Are Essential

3.1 The Limits of Manual Inspection

Manual fiber end-face inspection—traditionally performed with handheld fiber microscopes—suffers from several critical limitations:

  • Human fatigue: Operators inspecting hundreds of connectors per shift experience attention degradation, leading to inconsistent quality judgment.
  • Subjective standards: "Is this a scratch or a cleaning artifact?" Different operators reach different conclusions.
  • Low throughput: Manual inspection caps at roughly 200–300 connectors per hour, far below automated line speeds.
  • Defect escape rate: Studies show manual inspection has a defect escape rate of approximately 3.7%, meaning nearly 4 in 100 defective modules pass through to customers.

3.2 The Industrial Camera Advantage

Industrial cameras transform optical module inspection from a manual, subjective process into an automated, data-driven quality control system:

ParameterManual InspectionIndustrial Camera System
Resolution~2–5 μm (eyeball limit)Down to 0.5 μm with high-resolution sensors
Throughput200–300 units/hour3,000–10,000+ units/hour
Defect escape rate~3.7%< 0.1% with AI classification
ConsistencyOperator-dependent100% repeatable
Operating hours8-hour shifts24/7 continuous operation
Data traceabilityPaper/radio recordsDigital image archive with timestamps

4. Core Inspection Tasks & Camera Solutions

The AI smart optical module manufacturing process involves multiple inspection stages, each with unique imaging requirements. Below we detail eight critical inspection tasks and the corresponding industrial camera solutions.

4.1 🔬 Fiber End-Face Inspection

Challenge: Fiber connector end-faces (LC/SC/MPO) must be free of scratches, pits, contamination, and coating defects. Industry standards (IEC 61300-3-35) define acceptable defect sizes as small as 0.5 μm in the core and cladding zones. MPO connectors with 12–32 cores require full ferrule imaging in a single capture.

Solution: Two complementary camera models cover this application:

📋 MV-XG6500GC/GM — 65MP Ultra-High Resolution Camera

SpecificationValue
Resolution65MP (9344 × 7000)
Pixel Size3.2 μm
Interface10GigE
Frame Rate15.5 FPS (RAW) / 31 FPS (JPEG)
SensorGMAX3265 CMOS, Global Shutter
Key Features1200 MB/s bandwidth, JPEG compression, M58 mount

The MV-XG6500GC/GM is purpose-built for sub-micron end-face defect detection. Its 65-megapixel sensor resolves defects down to 0.5 μm when paired with appropriate magnification optics and blue coaxial illumination. The onboard JPEG compression is particularly valuable in mass production—raw 65MP images would consume enormous storage, but JPEG compression reduces file sizes by 5–10× while preserving defect-detection-relevant detail, enabling long-term image archiving for traceability.

📋 MV-S2UC2500GM — 25MP High-Resolution Camera

SpecificationValue
Resolution25MP (5120 × 5120)
Pixel Size2.5 μm
InterfaceUSB 3.0
Frame Rate28.25 FPS
SensorGlobal Shutter
Key FeaturesCompact 29 × 29 mm, ideal for F-zone inspection

The MV-S2UC2500GM excels at MPO end-face F-zone (fiber zone) inspection. Its 2.5 μm pixel pitch provides excellent resolving power for 12–16 core MPO connectors, while its ultra-compact 29 × 29 mm form factor allows integration into space-constrained inline inspection stations.

4.2 🎯 TOSA/ROSA Alignment Inspection

Challenge: Transmitter Optical Sub-Assembly (TOSA) and Receiver Optical Sub-Assembly (ROSA) components must be precisely aligned within the module housing. Misalignment in axial offset, angular tilt, or Z-axis displacement directly causes coupling loss and signal degradation. Additionally, adhesive (epoxy) overflow during assembly must be detected to prevent contamination of optical surfaces.

Solution: The MV-S2UC2500GM (25MP, global shutter) is the recommended camera for TOSA/ROSA alignment verification. When paired with a telecentric lens, the global shutter eliminates motion artifacts during capture, and the 25-megapixel resolution captures sub-millimeter alignment deviations with sufficient margin for pass/fail determination.

Key inspection parameters:

  • Axial offset: tolerance typically ±10 μm
  • Angular tilt: tolerance typically ±0.5°
  • Z-axis displacement: tolerance typically ±20 μm
  • Adhesive overflow: detection threshold 50 μm

4.3 ⚡ Wire Bonding Inspection

Challenge: In Chip-on-Board (COB) processes, gold wire bonds connect the IC die to the substrate. Common defects include missing bonds, skewed wires, wire crossover, and inconsistent loop height. These defects are transient—occurring in milliseconds during the bonding cycle—requiring ultra-high-speed capture.

Solution: Two speed tiers address different production scenarios:

📋 MV-SUA133GC/M — High-Speed Camera (241 FPS)

SpecificationValue
Resolution1.3MP (1280 × 1024)
InterfaceUSB 3.0
Frame Rate241 FPS
Key FeaturesReal-time bonding process monitoring

The MV-SUA133GC/M operates at 241 frames per second, capturing the bonding process in near-real-time. This is suitable for post-bond inspection where the wire is stationary and the camera performs a rapid sequence capture across multiple bond positions.

📋 MV-XGC51GM — Ultra-High-Speed Camera (1594 FPS)

SpecificationValue
Resolution0.5MP (816 × 624)
Interface10GigE
Frame Rate1594 FPS
Key FeaturesTransient defect capture, ultra-high-speed trigger

The MV-XGC51GM pushes the boundary with 1,594 frames per second—fast enough to capture transient defects during the bonding motion itself. This camera is deployed in advanced lines that perform in-process monitoring rather than post-bond inspection, catching defects at the moment of formation.

4.4 🏷️ Module Appearance Inspection

Challenge: The external appearance of the finished module must be verified: housing integrity, gold finger (edge connector) condition, label placement accuracy, and solder burrs on the PCB. This requires color imaging (to detect label printing errors) and multi-angle illumination (to reveal surface defects from different directions).

Solution:

📋 MV-SUS840C-M — 8.4MP Color Camera

SpecificationValue
Resolution8.4MP (3840 × 2160)
Pixel Size2.0 μm
InterfaceUSB 3.0
Frame Rate45.5 FPS
Sensor1/1.8" CMOS, Color
Key Features5 Gbps DMA transfer, multi-angle appearance inspection

The MV-SUS840C-M brings full-color imaging to module appearance inspection. Its 8.4MP resolution (4K UHD) captures the entire module surface in a single shot, while the color sensor enables label text verification, barcode reading, and color-coded component identification. The 45.5 FPS frame rate supports multi-angle inspection when the module is rotated or when multiple cameras are triggered in sequence.

4.5 🧬 Internal Chip Inspection (SWIR)

Challenge: After packaging, the internal chip placement, die-attach quality, and solder distribution are hidden beneath opaque or semi-transparent encapsulation materials. Visible-light cameras cannot penetrate these layers. This is where Short-Wave Infrared (SWIR) imaging becomes essential—SWIR wavelengths (0.9–1.7 μm) penetrate silicon, epoxy, and certain plastic packaging materials.

Solution:

📋 MV-GEC500I — SWIR InGaAs Camera

SpecificationValue
Resolution5MP (2592 × 2056)
InterfaceGigE
Frame Rate24 FPS
SensorInGaAs, 0.4–1.7 μm spectral response
Key FeaturesSemiconductor inspection, through-package imaging

The MV-GEC500I utilizes an InGaAs (Indium Gallium Arsenide) sensor with spectral response from 0.4 to 1.7 μm. This allows it to see through packaging materials that are opaque to visible light, revealing:

  • ✅ Chip placement accuracy (X/Y offset)
  • ✅ Solder distribution and voids
  • ✅ Die-attach adhesive coverage
  • ✅ Internal wire bond geometry (through transparent encapsulation)

This capability is particularly valuable for COB (Chip-on-Board) and TO-CAN packaged optical components where internal verification was previously only possible through destructive cross-sectioning.

4.6 💜 UV Fluorescence Detection

Challenge: Adhesive dispensing (epoxy, UV-cure adhesive) is critical in optical module assembly. Uneven dispensing, air bubbles, or adhesive residue on optical surfaces can cause mechanical failure or signal degradation. Under visible light, transparent adhesives are nearly invisible—but under UV illumination, many adhesives fluoresce, making defects clearly visible.

Solution:

📋 MV-SUC800GU — UV-Enhanced Camera

SpecificationValue
Resolution8MP (2840 × 2840)
InterfaceUSB 3.0
Key FeaturesUV-enhanced sensor, fluorescence detection

The MV-SUC800GU features a UV-enhanced sensor optimized for fluorescence imaging. When combined with a UV light source (typically 365 nm UV LED), the camera captures fluorescence patterns that reveal:

  • Adhesive dispensing uniformity
  • Residual adhesive contamination
  • Air bubbles in adhesive layers
  • Curing completeness (fluorescence intensity correlates with cure state)

4.7 📐 3D Coplanarity Measurement

Challenge: Gold finger (edge connector) coplanarity and module housing flatness are critical for reliable electrical contact when the module is inserted into a switch or router. Non-coplanar gold fingers can cause intermittent connections; warped housings can misalign with mating connectors. These are inherently 3D geometric measurements that 2D imaging cannot perform.

Solution:

📋 MV-3DD240-S45 — 3D Structured Light Camera

SpecificationValue
Resolution2048 × 1200
TechnologyMonocular structured light + DLP projection
Key FeaturesGPU acceleration, Linux/Windows compatible, secondary development support

The MV-3DD240-S45 projects structured light patterns via DLP (Digital Light Processing) onto the module surface and captures the deformation of these patterns with a monocular camera. GPU-accelerated processing reconstructs a full 3D height map in real time, enabling:

  • Gold finger coplanarity measurement (typically tolerance < 0.1 mm)
  • Housing warpage measurement
  • Solder ball height measurement (for BGA components)
  • Surface profile verification

The camera supports secondary development on both Linux and Windows, allowing integration into custom inspection software and production line control systems.

4.8 🔍 Variable-Depth Inspection

Challenge: AI smart optical modules have complex internal geometries—components at different heights, recessed features, and multi-layer structures. A fixed-focus camera can only keep one plane in sharp focus, requiring either multiple cameras at different focus distances or mechanical focus adjustments that slow down production.

Solution:

📋 MV-AFU2000C — Autofocus Camera

SpecificationValue
Resolution20MP
InterfaceUSB 3.0
Key FeaturesReal-time adjustable internal structure, autofocus with any fixed-focus lens

The MV-AFU2000C features a real-time adjustable internal structure that enables autofocus with any fixed-focus lens. This eliminates the need for multiple cameras or mechanical focus stages—single camera, multiple focal planes, rapid focus transitions. For complex module geometries with features at varying depths, this camera adapts on-the-fly, capturing sharp images at each inspection point without throughput penalty.

5. System Architecture & Selection Guide

5.1 Five-Layer Inspection System Architecture

A complete AI smart optical module inspection system follows a five-layer architecture:

┌─────────────────────────────────────────────┐
Layer 5: Decision & Control Layer    │
 AI classification · Pass/Fail · SPC · MES   │
├─────────────────────────────────────────────┤
Layer 4: Data Processing Layer          │
 Image processing · Defect detection · 3D   │
 reconstruction · Feature extraction        │
├─────────────────────────────────────────────┤
Layer 3: Acquisition Layer               │
 Industrial cameras · Frame grabbers ·       │
 Trigger synchronization                   │
├─────────────────────────────────────────────┤
Layer 2: Optics & Illumination Layer     │
 Lenses (telecentric/zoom) · Light sources  │
 (coaxial/UV/structured light)             │
├─────────────────────────────────────────────┤
Layer 1: Mechanical & Positioning Layer     │
 Precision stages · Robotics · Fixtures      │
└─────────────────────────────────────────────┘

5.2 Camera Selection Parameters

ParameterWhy It MattersTypical Range for Optical Module Inspection
ResolutionDetermines smallest detectable defect1.3MP (high-speed) to 65MP (sub-micron)
Pixel SizeAffects resolving power at given magnification2.0–3.2 μm for high-res; smaller pixels need better optics
Frame RateDetermines throughput capability15 FPS (ultra-high-res) to 1594 FPS (ultra-high-speed)
Sensor TypeGlobal vs. rolling shutter; CMOS vs. InGaAsGlobal shutter for motion; InGaAs for SWIR
InterfaceBandwidth and cable lengthUSB 3.0 (5 Gbps, 5m) / GigE (1 Gbps, 100m) / 10GigE (10 Gbps, 100m)
Spectral ResponseDetermines what can be "seen"Visible (400–700 nm) / SWIR (0.4–1.7 μm) / UV-enhanced
Shutter TypeMotion artifact eliminationGlobal shutter preferred for all inspection tasks

5.3 Camera Type Comparison

Camera TypeBest ForResolution RangeSpeedKey Limitation
High-Resolution Area ScanEnd-face, alignment, appearance25–65 MP15–45 FPSLower speed at max resolution
High-Speed Area ScanWire bonding, inline monitoring0.5–1.3 MP72–1594 FPSLower resolution
SWIR (InGaAs)Internal chip, through-package5 MP24 FPSHigher cost, cooling required
UV-EnhancedFluorescence, adhesive inspection8 MPModerateRequires UV light source
3D Structured LightCoplanarity, warpage, height2.4 MPReal-timeSurface reflectivity dependent
AutofocusVariable-depth, complex geometry20 MPModerateSlightly slower than fixed-focus

6. MindVision Solutions

MindVision offers a comprehensive industrial camera portfolio specifically suited for AI smart optical module inspection. Below are three configuration packages tailored to different production scales and quality requirements.

📦 Entry-Level Configuration (R&D / Pilot Line)

Inspection TaskCamera ModelKey Spec
Fiber end-faceMV-S2UC2500GM25MP, 2.5 μm pixel
Module appearanceMV-SUS840C-M8.4MP color
Production monitoringMV-GE131GC1.3MP, 72 FPS, GigE

Best for: Small-batch production, R&D validation, pilot lines with moderate throughput requirements.

📦 Standard Configuration (Volume Production)

Inspection TaskCamera ModelKey Spec
Fiber end-face (precision)MV-XG6500GC/GM65MP, JPEG compression
Wire bondingMV-SUA133GC/M241 FPS
Module appearanceMV-SUS840C-M8.4MP color
UV fluorescenceMV-SUC800GU8MP UV-enhanced
Production monitoringMV-GE131GC72 FPS, 100m GigE

Best for: Medium-to-high volume production lines requiring comprehensive inspection coverage with sub-micron defect detection capability.

📦 High-Precision Configuration (Advanced / 800G–1.6T)

Inspection TaskCamera ModelKey Spec
Fiber end-face (ultra-precision)MV-XG6500GC/GM65MP, 10GigE
TOSA/ROSA alignmentMV-S2UC2500GM25MP, global shutter
Wire bonding (ultra-high-speed)MV-XGC51GM1594 FPS, 10GigE
Internal chip (SWIR)MV-GEC500I5MP InGaAs, 0.4–1.7 μm
3D coplanarityMV-3DD240-S45Structured light 3D
Variable-depthMV-AFU2000C20MP autofocus
UV fluorescenceMV-SUC800GU8MP UV-enhanced

Best for: 800G/1.6T module manufacturing, CPO assembly, and applications requiring full-spectrum inspection from sub-micron surface defects to 3D geometric verification.

🛡️ Warranty & Support

All MindVision industrial cameras come with a 24-month extended warranty, providing manufacturers with long-term reliability assurance for production-critical equipment.

📧 Email: globalmarket@mindvision.com.cn
🌐 Website: https://www.mindvision.ltd

7. AI Integration in Optical Module Inspection

7.1 From Rule-Based to Deep Learning

Traditional machine vision inspection relied on rule-based algorithms—edge detection, thresholding, template matching. While effective for well-defined, high-contrast defects, these methods struggle with:

  • ⚠️ Variability in defect appearance (scratches at different angles, contamination of varying types)
  • ⚠️ Low-contrast defects (subtle adhesive residues, minor misalignments)
  • ⚠️ Novel defect types not anticipated during algorithm development

Deep learning transforms this paradigm. Convolutional Neural Networks (CNNs) and Vision Transformers (ViTs) can learn defect patterns from annotated training images, achieving classification accuracy that surpasses both rule-based systems and human inspectors.

7.2 Training Data Requirements

Defect CategoryRecommended Training ImagesAnnotation Type
End-face scratches5,000+ (varied sizes/locations)Bounding box + severity grade
Contamination3,000+ (particle, smudge, film)Semantic segmentation
Wire bond defects8,000+ (missing, skewed, crossed)Bounding box + classification
Alignment deviation2,000+ (measured offset values)Regression labels
Adhesive defects4,000+ (UV fluorescence images)Semantic segmentation

7.3 Defect Classification Pipeline

A typical AI-enhanced inspection pipeline operates as follows:

  1. Image Acquisition → Industrial camera captures high-resolution image under controlled illumination
  2. Preprocessing → Normalization, denoising, region-of-interest extraction
  3. Feature Extraction → CNN backbone (e.g., ResNet, EfficientNet) extracts hierarchical features
  4. Defect Detection → Object detection head identifies defect locations and types
  5. Classification & Grading → Severity assessment per IEC 61300-3-35 or custom standards
  6. Decision → Pass/fail determination with confidence score
  7. Data Logging → Image, classification, and metadata archived for traceability and model retraining

The key advantage of AI integration is continuous improvement: as more inspection images accumulate, the model can be periodically retrained to recognize new defect types and refine its accuracy on edge cases.

8. FAQ

Below are frequently asked questions about industrial cameras in AI smart optical module inspection.

Q1: What resolution do I need to detect 0.5 μm fiber end-face defects?

To reliably detect 0.5 μm defects, you need a camera with sufficiently small pixel pitch and adequate magnification. The MV-XG6500GC/GM (65MP, 3.2 μm pixel) paired with an appropriate microscope objective achieves this resolution. As a rule of thumb, the effective pixel size at the object plane should be ≤ 0.25 μm (Nyquist sampling: at least 2 pixels per defect feature).

Q2: Can visible-light cameras inspect internal chip placement through packaging?

No. Visible light (400–700 nm) cannot penetrate silicon, epoxy, or ceramic packaging. You need a SWIR camera like the MV-GEC500I (InGaAs sensor, 0.4–1.7 μm response), which can image through these materials to verify chip placement, solder distribution, and internal structures non-destructively.

Q3: What's the difference between global shutter and rolling shutter for optical module inspection?

Global shutter captures all pixels simultaneously, eliminating motion artifacts—essential when inspecting moving parts on a production line or capturing high-speed events like wire bonding. Rolling shutter captures pixels sequentially, which can cause image distortion ("jello effect") with moving subjects. For optical module inspection, global shutter is strongly recommended across all inspection tasks.

Q4: How does the MV-XGC51GM achieve 1594 FPS, and is that speed necessary?

The MV-XGC51GM achieves 1594 FPS through a combination of small sensor size (0.5MP, 816×624), 10GigE interface (10 Gbps bandwidth), and optimized readout electronics. This speed is necessary for in-process wire bonding monitoring, where bonding cycles occur in milliseconds and transient defects (wire sway, incomplete bond) form and disappear within a single frame interval at lower speeds.

Q5: Does MindVision provide SDK and technical support for system integration?

Yes. MindVision provides SDKs supporting Windows and Linux, with compatibility for major image processing libraries. The MV-3DD240-S45 3D camera explicitly supports secondary development. All cameras include a 24-month extended warranty. For integration support and technical consultation, contact globalmarket@mindvision.com.cn or visit https://www.mindvision.ltd.

9. Conclusion & Future Outlook

The Road Ahead: CPO, 1.6T, and Edge AI Inspection

The AI smart optical module industry is at an inflection point. Three converging trends will shape the next generation of manufacturing inspection:

  • 1. Co-Packaged Optics (CPO)
    CPO architectures integrate optical engines directly onto the switch ASIC substrate, eliminating pluggable module form factors entirely. This shift demands new inspection paradigms—wafer-level optical testing, in-situ alignment verification, and 3D inspection of co-packaged structures. Industrial cameras with ultra-high resolution (like the MV-XG6500GC/GM) and 3D structured light (like the MV-3DD240-S45) will be essential for CPO quality control.
  • 2. 1.6T and Beyond
    1.6T modules will push fiber counts higher (64+ core MPO connectors), shrink feature sizes further, and increase internal component density. SWIR inspection (MV-GEC500I) and UV fluorescence detection (MV-SUC800GU) will become standard requirements, not optional add-ons.
  • 3. Edge AI Inspection
    Rather than sending inspection images to centralized servers for AI processing, edge AI brings inference directly to the camera or inspection station. This reduces latency from seconds to milliseconds, enabling real-time pass/fail decisions at production line speeds. MindVision cameras with 10GigE interfaces (MV-XG6500GC/GM, MV-XGC51GM) are well-positioned for edge AI integration, with sufficient bandwidth to support both high-speed image transfer and edge inference data pipelines.

Final Thoughts

Industrial cameras are not just inspection tools—they are the quality assurance backbone of AI smart optical module manufacturing. From the 0.5 μm fiber end-face scratch to the 3D warpage of a module housing, every defect that escapes detection becomes a potential field failure in a data center carrying AI workloads worth millions of dollars per hour.

MindVision's comprehensive camera portfolio—spanning high-resolution area scan, ultra-high-speed, SWIR, UV, 3D structured light, and autofocus technologies—provides manufacturers with the imaging tools needed to meet the quality challenges of 400G, 800G, and 1.6T production. Combined with AI-powered defect classification and a 24-month warranty, these solutions offer a complete path from inspection station to production intelligence.

🚀 Ready to Upgrade Your Optical Module Inspection?

Explore MindVision's full industrial camera lineup and find the right solution for your production line.

We’ll be glad to help you

  • Full Name

  • Company Name

  • E-mail*

  • Country / Region

  • Your Needs / Application*

  • Verification code

请输入主标题
请输入要描述的内容进行内容补充
请输入主标题
请输入要描述的内容进行内容补充
请输入主标题
请输入要描述的内容进行内容补充
请输入主标题
请输入要描述的内容进行内容补充
Tel:+86 18476546577
WhatsApp:1121038577
LinkedIn:Shenzhen MindVision Technology Co., LTD
Email
