MindVision MV-SUA501GC/GM: 12bit Depth Camera Elevates High-End Agricultural Sorting to New Levels

In the global high-end agricultural sector, sorting excellence is defined by precision rather than volume. From grading premium fruits and vegetables by size and color, to defect detection and quality traceability, every link demands uncompromising accuracy — a slightly discolored apple, an imperceptible bruise on citrus, or a nut with minor size deviation can significantly reduce product premium and miss opportunities in the high-end market. As the global agricultural industry moves towards scaling, standardization and refinement, the demand for intelligent sorting solutions that balance accuracy, efficiency and stability is growing rapidly.

Traditional manual sorting is inefficient, error-prone and costly, failing to keep pace with the development needs of high-end agricultural industrialization. Ordinary industrial cameras, limited by insufficient image precision, struggle to capture subtle color gradients and tiny defects on agricultural products, making it impossible to meet the rigorous requirements of high-end sorting. To address these pain points, MindVision, a leading global provider of industrial camera solutions, has launched the MV-SUA501GC/GM series industrial cameras. Leveraging the core advantage of 12bit depth combined with high-performance hardware configuration, this series delivers efficient, accurate and stable machine vision solutions for sorting high-end agricultural products such as fruits, vegetables, nuts and medicinal herbs, breaking through the bottleneck of traditional sorting and empowering the global agricultural industry to move towards intelligence and high-endization.

Understanding 12bit Depth: What Makes It Stand Out?

For high-end agricultural sorting, "capturing details" is more critical than "capturing clarity". Many are unaware that the "bit depth" of an industrial camera directly determines its ability to capture subtle differences — simply put, the higher the bit depth, the stronger the camera’s capability to recognize subtle variations in light, color and texture, and the richer the layering of the image.

Most ordinary industrial cameras on the market have 8bit depth, which can only display 256 levels of gray. When faced with subtle color gradients, slight bruises (barely visible to the naked eye) and differences in peel texture on agricultural products, they are prone to misjudgment and omission. In contrast, the MindVision MV-SUA501GC/GM series is equipped with 12bit depth, capable of displaying up to 4096 levels of gray — 16 times that of 8bit cameras!

This means it can capture 0.024% of light and shade differences on the surface of agricultural products. Even slight color unevenness on apples, tiny scratches (less than 0.1mm) on citrus peels, and subtle texture differences on nut shells can be clearly presented, enabling precise distinction between high-quality products, qualified products and defective products. It eliminates sorting errors from the source and upholds the quality standard of high-end agricultural products, laying a solid foundation for premium product positioning and market competitiveness.

3 Core Advantages of MV-SUA501GC/GM 12bit Depth for High-End Agricultural Sorting

Beyond the core 12bit depth, the MindVision MV-SUA501GC/GM series is fully optimized for high-end agricultural sorting scenarios, maximizing the advantages of 12bit depth while balancing sorting efficiency and stability. It is widely adaptable to various high-end agricultural sorting scenarios worldwide, meeting the diversified needs of large-scale planting bases and agricultural processing enterprises.

Advantage 1: Accurate Identification of Tiny Defects, Eliminating Substandard Products

Quality is the core competitiveness of high-end agricultural products. Tiny defects (such as slight bruises, scratches, spots and insect eyes) are the top priority of high-end sorting, and also the most common pain points of manual sorting and ordinary cameras. Even the smallest defects can affect product quality and market value, especially for export-oriented agricultural products that need to meet strict international standards.

The 12bit depth of the MV-SUA501GC/GM, combined with 5 million effective pixels (2448x2048 resolution), can accurately capture tiny defects on the surface of agricultural products: whether it is tiny spots on cherries, slight bruises on blueberries, or small damages on medicinal herbs, all can be clearly identified and distinguished. Meanwhile, it supports 8bit to 12bit raw data output, retaining the most original imaging details and avoiding defect omission caused by data compression — a key advantage for precise defect detection in high-end sorting.

What’s more, this series of cameras boasts a signal-to-noise ratio (SNR) of up to 40.4dB and a dynamic range of 73.6dB. Even in complex lighting environments of sorting workshops (such as alternating strong light and shadows), it can effectively suppress noise and clearly present the surface details of agricultural products, eliminating misjudgment. It ensures that every high-quality agricultural product is accurately sorted, every tiny defect is not missed, and the quality reputation of high-end agricultural products is maintained, helping enterprises meet strict international market access standards.

Advantage 2: Precise Distinction of Color Gradients, Achieving Standardized Grading

Color grading is a key link in high-end agricultural sorting — for example, the color uniformity of apples, the ripeness of citrus, and the color depth of wolfberries directly determine the product’s premium space. Traditional manual sorting relies on subjective judgment, and inconsistent standards among different sorters often lead to grading chaos. Ordinary 8bit cameras cannot capture subtle color gradients, making it difficult to achieve standardized grading, which is crucial for global market access and consistent product quality.

The 12bit depth of the MV-SUA501GC/GM can accurately capture subtle color gradients on the surface of agricultural products. Available in both color (MV-SUA501GC) and monochrome (MV-SUA501GM) versions, the color version can accurately restore the original color of agricultural products and capture subtle color differences, realizing "standardized color grading" that meets global high-end agricultural standards.

For example, in high-end apple sorting, it can accurately distinguish three grades — full red, half red and uneven color — based on the color details captured by 12bit depth, with uniform standards for each grade, avoiding errors caused by manual subjective judgment. In citrus sorting, it can accurately judge ripeness through color gradient differences, selecting high-quality citrus with standard sweetness and uniform color, increasing product premium and helping agricultural enterprises seize the high-end global market. This standardized grading capability also helps enterprises achieve "quality-based pricing", expanding profit space and enhancing market competitiveness.

Advantage 3: High Efficiency and Stability, Adapting to Large-Scale High-End Sorting

High-end agricultural sorting requires not only precision but also high efficiency. Especially for large-scale planting bases and agricultural processing enterprises, tens of thousands or even hundreds of thousands of pounds of agricultural products need to be sorted every day, placing extremely high requirements on the frame rate and stability of cameras. Efficient sorting is the key to reducing costs and improving production capacity for large-scale agricultural operations.

The MV-SUA501GC/GM series is equipped with a USB3.0 interface with a transmission bandwidth of up to 5Gbps. Combined with a high-speed sensor, it can achieve a maximum frame rate of 40.5fps at 2448x2048 resolution, enabling high-speed continuous imaging. With the advantage of "one computer stably compatible with multiple cameras", it can build a multi-station synchronous sorting system, greatly improving sorting efficiency and meeting the needs of large-scale high-end sorting. It can efficiently handle high-volume sorting tasks, matching the throughput requirements of modern agricultural processing lines.

Meanwhile, this series of cameras adopts DMA transmission technology, where 5Gbps data transmission occupies almost no CPU resources, ensuring no disconnection or frame loss even during long-term operation, with extremely strong stability. Its compact size (29X29X32.7mm, excluding lens base and rear shell interface) and light weight (<75g) allow flexible installation on sorting equipment, adapting to sorting lines for various agricultural products such as fruits, vegetables, nuts and medicinal herbs. The compact design also helps save installation space, making it suitable for both large-scale processing plants and small to medium-sized sorting facilities.

In addition, the camera supports PC Linux and ARM Linux operating systems, and can be integrated into embedded devices. Compatible with Vision protocols, it seamlessly connects with mainstream global machine vision software such as Halcon, VisionPro and Labview, enabling quick integration into existing sorting equipment without complex debugging. This reduces upgrading costs and accelerates project implementation, helping global agricultural enterprises achieve intelligent upgrading efficiently.

Beyond 12bit Depth: Practical Configurations for Agricultural Scenarios

In addition to the core 12bit depth advantage, the MindVision MV-SUA501GC/GM series is optimized with a number of practical configurations for global agricultural sorting scenarios, making sorting more convenient, efficient and reliable, and adapting to the complex working conditions of agricultural processing workshops worldwide.

• Flexible Power Supply: Supports USB 5V/Aviation Connector 12V dual power supply modes, adapting to different power supply scenarios in sorting workshops around the world and enabling more flexible installation;

• Strong Light Adaptation: Supports external trigger flash synchronous photography, effectively coping with strong light environments in sorting workshops, avoiding image blurriness caused by reflection, and ensuring stable imaging quality in various lighting conditions;

• Easy Integration: Equipped with programmable IO, supporting multiple programming language packages (C/C++/Python, etc.), facilitating secondary development and quick adaptation to different sorting equipment and global industrial control systems;

• Environmental Resistance: Operating temperature ranges from 0~50℃, humidity from 20~80% (no condensation), adaptable to humid and dusty environments in agricultural sorting workshops, ensuring long-term stable operation even in harsh working conditions.

Comprehensive Application Scenarios, Empowering Global High-End Agricultural Upgrading

With its core 12bit depth advantage and comprehensive configuration optimization, the MindVision MV-SUA501GC/GM series industrial cameras have been widely applied in various high-end agricultural sorting scenarios around the world, helping agricultural products improve quality, increase efficiency and enhance added value. It has become a reliable choice for global agricultural processing enterprises and large-scale planting bases, supporting the modernization and high-endization of the agricultural industry.

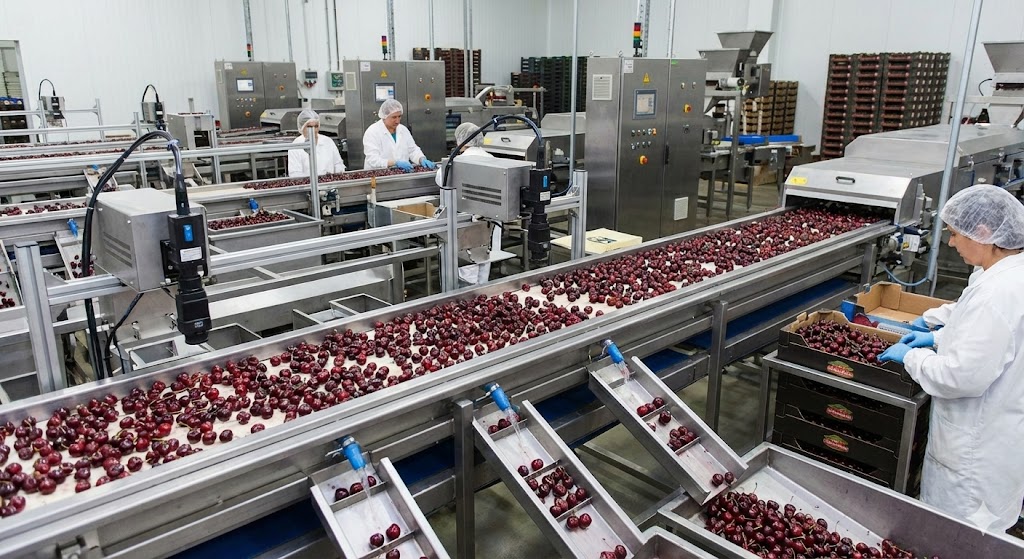

• Fruit and Vegetable Sorting: Apples, citrus, cherries, blueberries, strawberries, etc., realizing defect identification, color grading and size sorting, meeting the quality requirements of high-end markets such as Europe and North America;

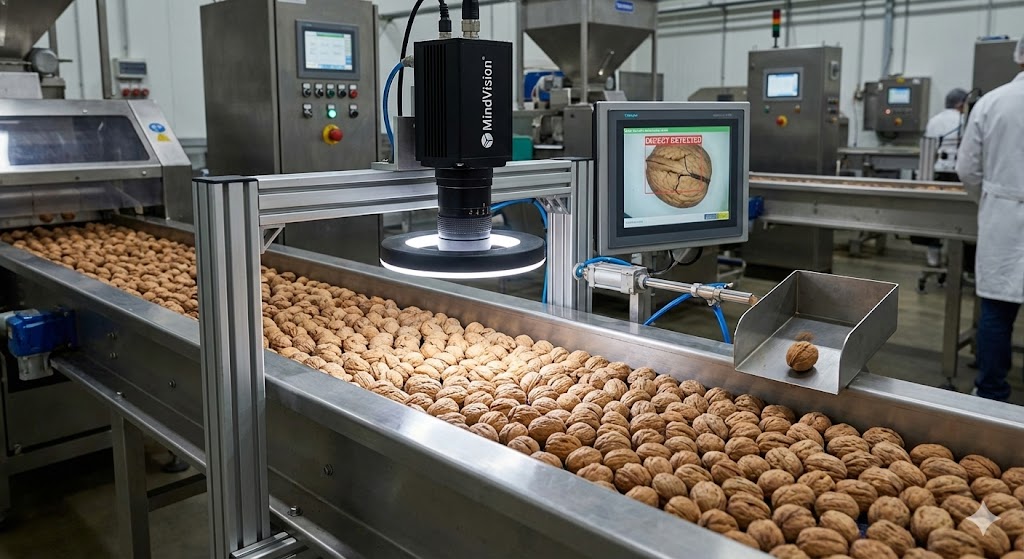

• Nut Sorting: Walnuts, almonds, peanuts, etc., identifying shell damage, insect eyes and size deviations, sorting high-quality nuts and enhancing market competitiveness;

• Medicinal Herb Sorting: Wolfberries, astragalus, angelica, etc., identifying surface damage and color differences, realizing quality grading and helping medicinal herb products meet international standardization requirements;

• Other Agricultural Products: Tea, red dates, etc., accurately distinguishing quality grades and improving product added value, helping enterprises gain an advantage in the global high-end agricultural market.

•

Conclusion: Empowering High-End Agricultural Development with Technology

The global high-end agricultural market is entering an era of refined operation, and precise sorting is the core link of refined operation. As consumer demand for high-quality agricultural products continues to rise, and the trend of agricultural industrialization and intelligence accelerates, the role of machine vision technology in agricultural sorting is becoming increasingly prominent. The MindVision MV-SUA501GC/GM series industrial cameras, with 12bit depth as the core, break through the performance limitations of ordinary cameras, deeply integrate machine vision technology with agricultural sorting, and enable precise grading and quality control of every agricultural product.

As a professional global industrial camera manufacturer, MindVision has always adhered to independent R&D, focused on industry pain points, and integrated core technologies into various scenarios. With high-quality industrial cameras, we inject technological power into the intelligent and high-end development of global agriculture. We strictly follow international industrial standards, and our products have passed authoritative certifications such as CE and RoHS, ensuring seamless integration into global production lines.

In the future, MindVision will continue to deepen core technology R&D, launch more high-quality products adapted to global agricultural scenarios, and cooperate with agricultural enterprises and institutions around the world to help more partners seize opportunities in the high-end agricultural market, achieve quality improvement, efficiency increase and value enhancement, and jointly promote the sustainable development of the global high-end agricultural industry.

You may contact us at chenguo@mindvision.com.cn to gain more in-depth technical insights and practical applications in the fields of machine vision and optical imaging.
