Low-Light Industrial Cameras: Solutions for High-Precision Inspection in Dark Environments (MindVision MV-PX6500GC/GM)

In many industrial detection scenarios, low-light environments (such as night security monitoring, semiconductor welding detection, tunnel engineering detection, and low-light laboratory detection) have become a major challenge for industrial cameras. In low-light environments, traditional industrial cameras often have problems such as low image brightness, high noise, blurred details and difficulty in capturing subtle defects, which seriously affect the accuracy and efficiency of detection, and even lead to detection failure. Low-light industrial cameras, with their excellent low-light imaging performance, can capture clear and high-quality images in low-light environments, breaking through the bottleneck of low-light environment detection. As a leading global provider of industrial camera solutions, MindVision has launched the MV-PX6500GC/GM series low-light high-speed area scan cameras, which are specially optimized for low-light high-precision detection scenarios. This article will elaborate on the core advantages of low-light industrial cameras, the technical principles of low-light imaging, and the practical application of MindVision MV-PX6500GC/GM series in low-light high-precision detection scenarios

First, let’s understand the core technical principles of low-light industrial cameras: low-light imaging mainly relies on improving the camera’s sensitivity and signal-to-noise ratio, and optimizing the image processing algorithm to capture the weak light signal in the environment and convert it into a clear image. The sensitivity of the camera refers to the ability of the camera to convert light signals into electrical signals: the higher the sensitivity, the stronger the camera’s ability to capture weak light signals. The signal-to-noise ratio refers to the ratio of the effective signal to the noise signal in the image: the higher the signal-to-noise ratio, the clearer the image and the less noise. Low-light industrial cameras usually adopt high-sensitivity image sensors, optimize the circuit design, and add noise reduction algorithms (such as 3D noise reduction) to improve the sensitivity and signal-to-noise ratio, so as to achieve high-quality imaging in low-light environments.

For high-precision detection in low-light environments, low-light industrial cameras need to meet three core requirements: high sensitivity, high signal-to-noise ratio and high imaging precision. High sensitivity ensures that the camera can capture weak light signals in low-light environments; high signal-to-noise ratio ensures that the image is clear and free of noise, avoiding misjudgment caused by noise; high imaging precision ensures that the camera can capture subtle defects and complete high-precision measurement tasks. MindVision’s MV-PX6500GC/GM series low-light industrial cameras perfectly meet these three requirements, and have outstanding performance in low-light high-precision detection scenarios.

Core Advantage 1: Ultra-High Sensitivity, Capturing Weak Light Signals in Low-Light Environments

The MV-PX6500GC/GM series is equipped with a high-sensitivity CMOS sensor, which is specially optimized for low-light imaging. Its sensitivity reaches an extremely high level, which can capture weak light signals even in environments with extremely low illumination (as low as 0.01lux). For example, in semiconductor welding detection scenarios, the welding process is usually carried out in a low-light environment to avoid the impact of strong light on the welding quality. The MV-PX6500GC/GM series can capture the welding process in real time in this low-light environment, clearly presenting the welding spot shape, welding depth and other details, helping technicians monitor the welding quality and identify welding defects (such as cold solder joints, missing solder). In addition, the camera supports adjustable exposure time, which can flexibly adjust the exposure time according to the brightness of the environment, further improving the imaging effect in low-light environments.

Core Advantage 2: High Signal-to-Noise Ratio, Ensuring Clear Images Without Noise

In low-light environments, the noise of the image is easy to increase, which affects the clarity of the image and the accuracy of defect detection. The MV-PX6500GC/GM series adopts advanced 3D noise reduction technology and ISP image processing acceleration algorithm, which can effectively suppress the noise in the image and improve the signal-to-noise ratio. The signal-to-noise ratio of the camera in linear mode is 66dB, and in wide dynamic mode it is more than 100dB, which ensures that the image is clear and detailed even in low-light environments, and there is no obvious noise. This is especially important for high-precision detection scenarios, such as wafer surface defect detection in low-light laboratories: the MV-PX6500GC/GM series can clearly capture tiny defects (less than 0.1mm) on the wafer surface, avoiding misjudgment and omission caused by noise.

Core Advantage 3: High Imaging Precision, Meeting the Needs of Low-Light High-Precision Detection

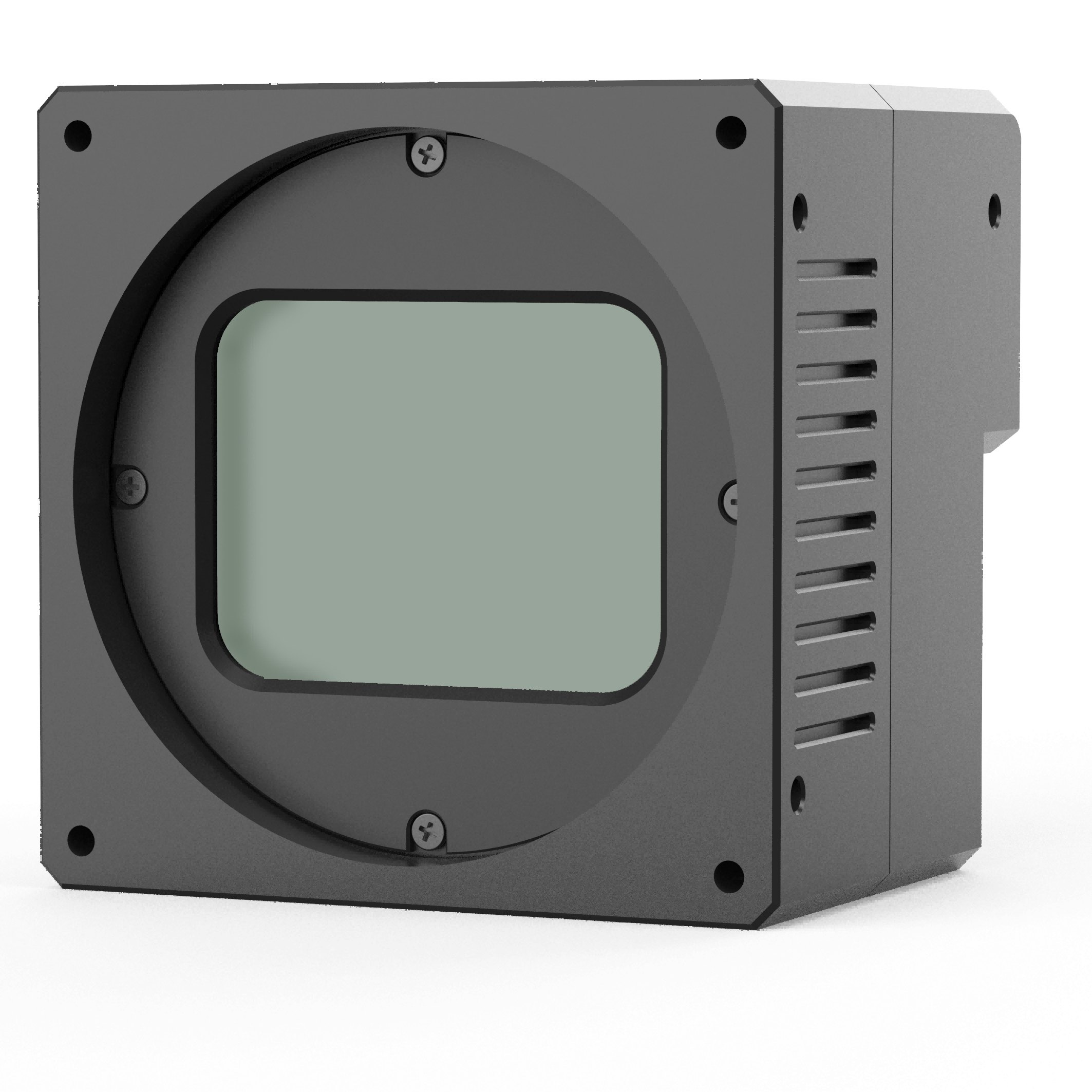

The MV-PX6500GC/GM series has 65 million effective pixels and 3.2μm pixel size, which can achieve ultra-high imaging precision. It supports global exposure technology, which eliminates motion blur during high-speed shooting, ensuring that the details of the image are clear and stable. In low-light high-precision detection scenarios such as aerospace component detection and precision instrument detection, the MV-PX6500GC/GM series can accurately measure the 2D and 3D parameters of the components, and identify subtle surface defects, meeting the high-precision detection needs of these fields. In addition, the camera supports 12bit raw data output, which retains the most original imaging details, avoiding the loss of subtle defect information caused by data compression.

Core Advantage 4: High-Speed Transmission, Adapting to High-Speed Detection in Low-Light Environments

Many low-light high-precision detection scenarios (such as semiconductor welding, high-speed component detection) also require the camera to have a high frame rate and high-speed transmission capability to ensure real-time detection. The MV-PX6500GC/GM series adopts CXP12 interface, with a transmission bandwidth of up to 4850Mbyte/s, which is 4 times that of 10GigE, ensuring high-speed image transmission without frame loss. The maximum frame rate of the camera can meet the high-speed detection needs of low-light scenarios, and it supports synchronous triggering of up to 4 cameras, which can complete the high-speed synchronous detection of large-size objects (such as large-scale aerospace components), improving detection efficiency.

Practical Application Cases of MV-PX6500GC/GM Series in Low-Light Scenarios

Case 1: Semiconductor Welding Detection. A global semiconductor enterprise adopted the MV-PX6500GC/GM series low-light industrial cameras to monitor the semiconductor welding process. The welding process is carried out in an environment with illumination of 0.05lux. The MV-PX6500GC/GM series can clearly capture the welding spot shape and welding process in real time, identify welding defects such as cold solder joints and missing solder, and the detection accuracy is increased by 30% compared with traditional cameras, effectively improving the welding quality of semiconductor products.

Case 2: Aerospace Component Low-Light Detection. An aerospace research institute used the MV-PX6500GC/GM series to detect the surface defects of aerospace components in a low-light laboratory (illumination 0.03lux). The camera clearly captured the tiny scratches (0.05mm) and surface unevenness on the surface of the components, accurately measured the size parameters of the defects, and provided reliable data support for the quality inspection of aerospace components.

In addition to the above advantages, the MV-PX6500GC/GM series also has good environmental adaptability: it adopts an aluminum alloy body, which has excellent heat dissipation and anti-interference performance, and can work stably in low-light industrial environments with temperature changes (0~50℃) and electromagnetic interference. The camera is fully compatible with mainstream machine vision software (such as Halcon, VisionPro) and operating systems, supporting secondary development, which can meet the personalized detection needs of different low-light scenarios.

Conclusion: Low-light industrial cameras have become an indispensable core equipment for high-precision detection in low-light environments, and are widely applied in semiconductor, aerospace, precision instrument, security and other fields. MindVision’s MV-PX6500GC/GM series low-light industrial cameras, with their ultra-high sensitivity, high signal-to-noise ratio, high imaging precision and high-speed transmission advantages, provide a reliable solution for high-precision detection in low-light environments, helping global enterprises solve the pain points of low-light detection and improve detection accuracy and efficiency. As a leading provider of low-light industrial camera solutions, MindVision will continue to deepen the R&D and innovation of low-light imaging technology, launch more products adapted to low-light detection scenarios, and promote the development of high-precision detection technology in global industrial fields.
