The “Eagle Eyes” Hidden Inside Your Phone and Earbuds How Industrial Cameras Power Half of 3C Smart Manufacturing

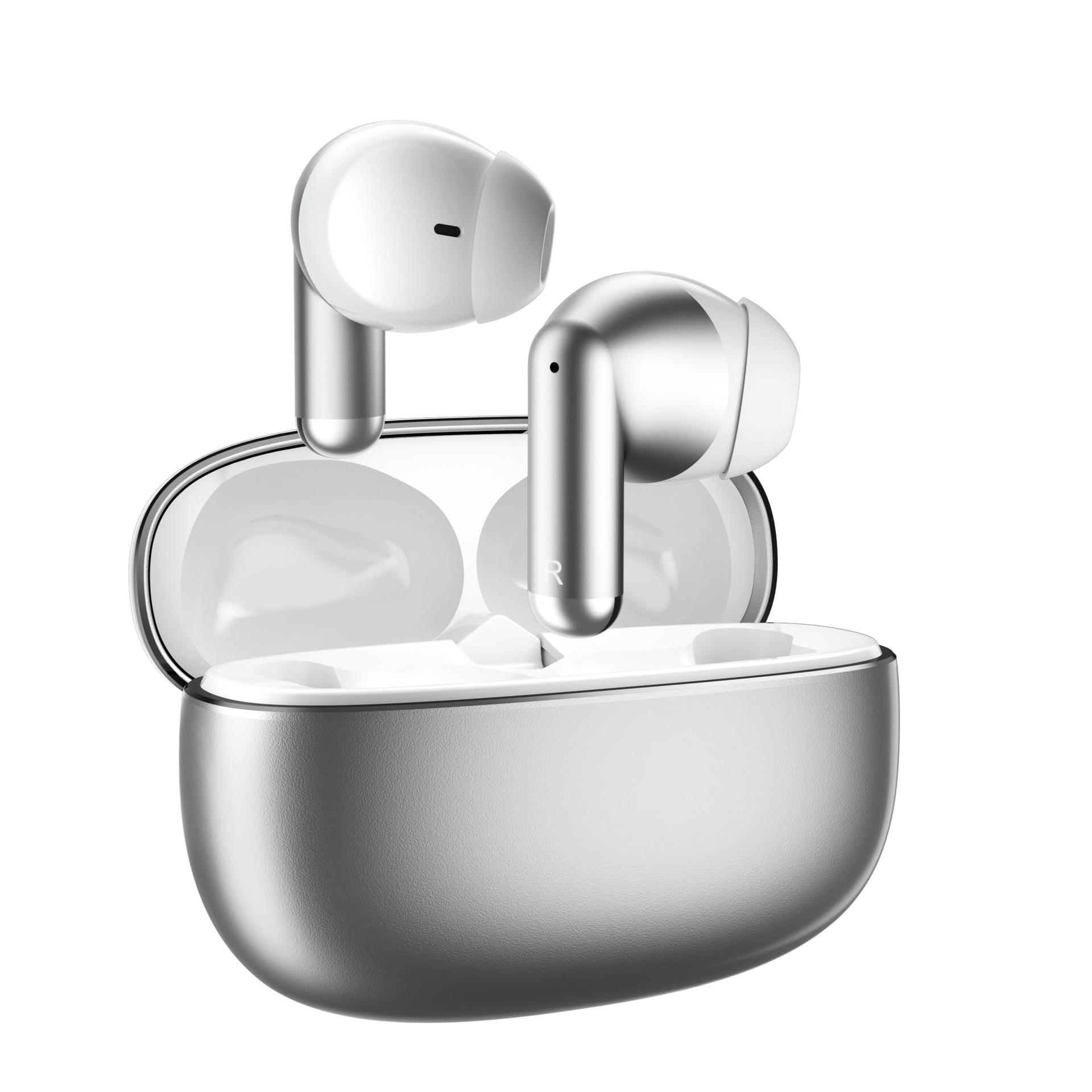

The smartphone you hold every day, the wireless earbuds you wear, the laptop you work on—

the manufacturing process behind these 3C products is far more precise than most people imagine.

From 0.01 mm connector pins to hair-thin solder joints, from tiny surface scratches on the housing to micron-level internal alignment, even the smallest defect can turn a product into a reject.
Manual inspection is not only inefficient, but also incapable of catching such invisible flaws.

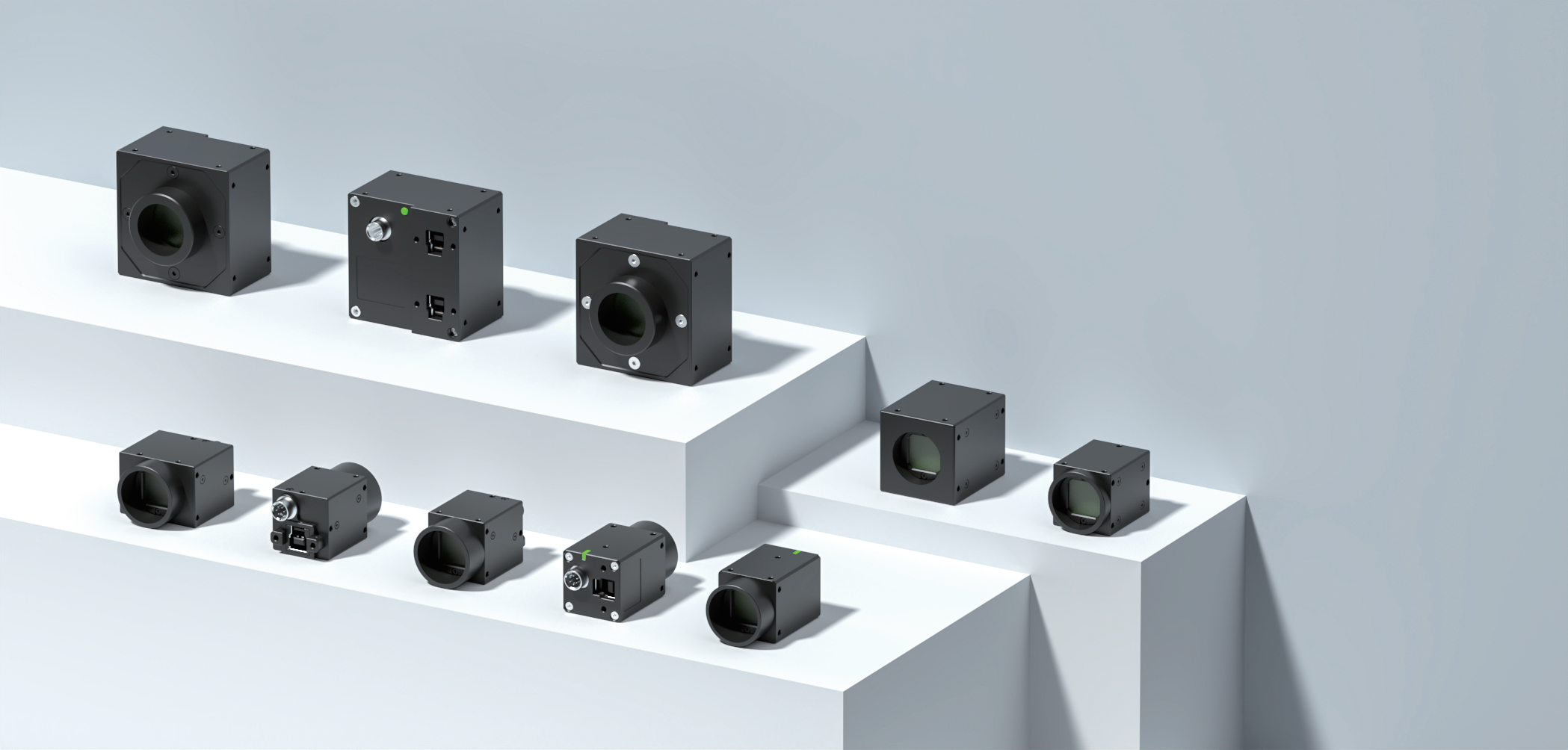

That’s where industrial cameras step in — becoming the indispensable “intelligent eyes” of modern 3C manufacturing.

Today, let’s break down where industrial cameras are used throughout 3C production, and how they safeguard product quality with micron-level precision 👇

Why the 3C Industry Cannot Live Without Industrial Cameras

The core challenges of the 3C industry can be summarized in three words: Precision, Speed, Stability.

• Rapid product iteration: Smartphones and earbuds are updated every 6–12 months

• Miniaturization of components: Chips and pins keep getting smaller

• Mass production scale: A single line can produce tens of thousands of units per day Manual inspection simply cannot keep up.

Industry surveys show:

• 72% of 3C manufacturers struggle with inspection speed lagging behind line takt time

• 65% of missed defects are caused by insufficient visual resolution

• A single production line may spend over RMB 800,000 annually on inspection labor Industrial cameras are a perfect match for these challenges:

• Ultra-high precision: Down to 0.001 mm, detecting scratches, pin misalignment, missing solder invisible to the human eye

• High speed: Dozens to hundreds of frames per second, ideal for high-speed mass production

• Extreme stability: 24/7 operation with consistent results, unaffected by fatigue or emotion

• Cost efficiency: Replaces dozens of inspectors, significantly reducing labor and rework costs In short, without industrial cameras, there would be no high-quality 3C products — and no efficient smart factories.

Core Application Scenarios: Full Coverage from Components to Finished Products

Industrial cameras are embedded throughout the entire 3C manufacturing process —
from component production → assembly → final inspection.

Below are the five most critical and common application scenarios.

Scenario 1: Precision Component Inspection

No Defect Escapes, Even at 0.01 mm

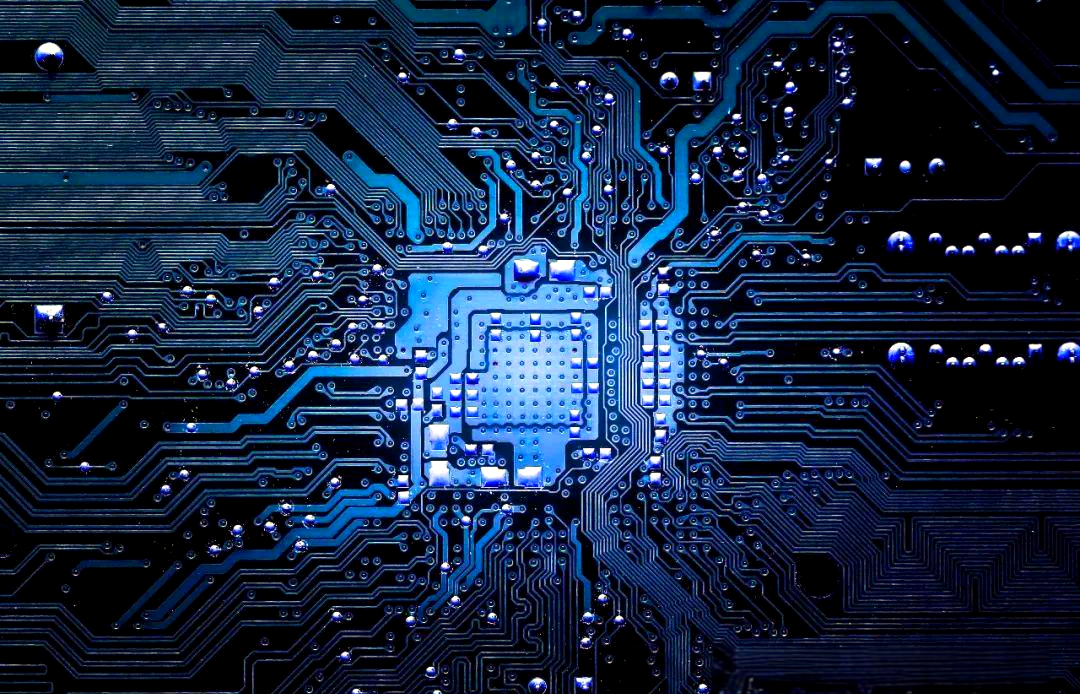

Key 3C components such as chips, PCBs, connector pins, and camera modules are extremely small and demand ultra-high precision.
Even minimal deviation can cause functional failure.

• A 0.01 mm height deviation in connector pins may lead to charging or data transmission failure

• Cold or missing solder joints on PCBs can result in crashes or poor signal performance

Industrial Camera Solution:

• High-resolution cameras (5 MP or higher) combined with AI denoising algorithms detect dimensional deviation, scratches, damage, contamination, and surface defects

• For pin coplanarity inspection, 3D industrial cameras with laser scanning generate point-cloud images, achieving 1.2 μm measurement accuracy

• Single-part inspection completed within 1 second

✅ Case Study:
A major smartphone ODM previously relied on 200 inspectors working in shifts to check mid-frame scratches, yet still faced delivery delays.
After deploying an industrial vision system:

• Detection accuracy reached 99.97%

• Annual labor cost savings exceeded RMB 4.2 million

Scenario 2: SMT Placement Inspection

Microscopic Quality Control on PCB Boards

SMT is a core process in 3C manufacturing — placing tiny electronic components onto PCBs.
Some components are as small as 0.1 mm, making manual judgment impossible.

Misalignment, missing parts, or reversed components can render the entire board defective.

Industrial Camera Solution:

• High-resolution CCD cameras and telecentric lenses mounted on SMT machines

• Sub-pixel positioning algorithms monitor placement accuracy in real time

• Immediate alarms and machine stop when misplacement is detected, preventing batch defects

✅ Key Advantages:

• Inspection speed up to 150 PCS/min

• Placement accuracy controlled within ±0.01 mm

• Significant improvement in PCB yield and reduced rework

Scenario 3: Assembly & Alignment Guidance

Perfect Fit, Zero “Crooked” Assemblies

3C assembly demands extreme alignment accuracy:

• Smartphone screen to frame bonding

• Camera module installation

• Earbud shell closing

A 0.02 mm deviation can cause screen lifting, sharp edges, or poor tactile feel.

Industrial Camera Solution:

• Vision-guided systems capture part positions in real time

• Coordinates are sent to robotic arms for precise pick-and-place operations

• Positioning accuracy reaches ±0.01 mm

For TWS earbud shell inspection:

• Three cameras arranged circumferentially generate a full 3D model via point-cloud stitching

• Seam deviation detection completed in under 0.5 seconds, suitable for high-speed lines

✅ Typical Applications:
Screen lamination, camera module assembly, earbud shell closure, laptop keyboard installation — virtually every 3C assembly process.

Scenario 4: Appearance Defect Inspection

Protecting the Product’s “Visual Quality”

Consumers judge 3C products first by appearance:

• Scratches, stains, dents

• Dead pixels or dark spots

• Color inconsistency and deformation

Manual inspection is subjective and prone to fatigue-related errors.

Industrial Camera Solution:

• Multi-angle camera setups with customized lighting (diffuse, polarized, shadow-free)

• Eliminate reflections on metal or glossy surfaces

• AI algorithms detect scratches, stains, color deviation, dents, and pixel defects

Even 0.02 mm micro-scratches can be reliably detected, with a false-detection rate below 0.1%.

✅ Applicable Products:
Smartphone housings, displays, earbuds, laptops, camera lenses, and printed logos or markings.

Scenario 5: Character & Barcode Recognition

Full Product Traceability from Birth to After-Sales

Each 3C product requires traceability throughout its lifecycle:

• Production batch

• Manufacturing date

• Inspection records

Manual reading is slow and error-prone.

Industrial Camera Solution:

• OCR and barcode algorithms read characters, barcodes, and QR codes even under low contrast or complex backgrounds

• Recognition speed: dozens per second

• Accuracy close to 100%

• Data automatically uploaded to MES/ERP systems

✅ Typical Use Cases:
Chip marking recognition, PCB barcode reading, IMEI scanning, earbud serial number tracking.

Pro Tips: 3 Key Factors When Choosing Industrial Cameras for 3C Manufacturing

Many manufacturers overspend or underperform due to improper camera selection.
Focus on these three essentials to avoid pitfalls:

1. Precision Matching

• Component and pin inspection: ≥5 MP, 0.01 mm accuracy

• Appearance inspection: 2–5 MP, balancing speed and resolution

• 3D inspection: prioritize Z-axis repeatability accuracy

2. Speed Compatibility

• High-speed lines (SMT, mass appearance inspection):
  choose 30 fps or higher, even 120 fps ultra-high-speed cameras

3. Environmental Adaptability

• Reflective surfaces → polarizing filters

• Dusty or humid environments → IP65 / IP67 protection

• Strong ambient light → cameras with high ambient-light suppression

This ensures long-term stability and consistent inspection performance.
