Why Industrial Cameras Require Image Acquisition Cards: The Core Role of Frame Grabbers

In fields where imaging quality and efficiency are pushed to the extreme—such as industrial inspection, medical imaging, and semiconductor manufacturing—high-end cameras have long been essential equipment. Yet many people notice that these cameras, often costing hundreds of thousands, are rarely used alone; instead, they are typically paired with an image acquisition card (frame grabber) to achieve their full performance. Some may regard the card as a “redundant accessory,” but this is a misconception. An image acquisition card is far more than a simple adapter—it is the key component that unlocks the full potential of high-end cameras. The three core missions it undertakes directly define the upper limit of a vision system’s performance.

To understand this pairing logic, one must first recognize a fundamental premise: the essential difference between high-end industrial cameras and consumer cameras lies in the output. High-end cameras deliver massive volumes of high-speed raw image data, rather than compressed, ready-to-use images. Native interfaces on standard computers (such as USB or conventional Ethernet) are quickly overwhelmed by this “data flood.” Image acquisition cards were created precisely to resolve this core contradiction.

Mission 1: A Dedicated High-Speed Data Channel to Prevent Frame Loss and Stuttering

The primary advantage of high-end cameras lies in their simultaneous breakthroughs in resolution and frame rate. For example, a 20-megapixel camera operating at 150 fps can generate several gigabytes of data per second—far exceeding the capacity of common interfaces. Take USB 3.0 as an example: while its theoretical bandwidth is about 5 GB/s, protocol overhead reduces the effective bandwidth to roughly 3 GB/s in practice. When faced with ultra-high-resolution, high-speed image streams, frame loss and stuttering become almost inevitable.

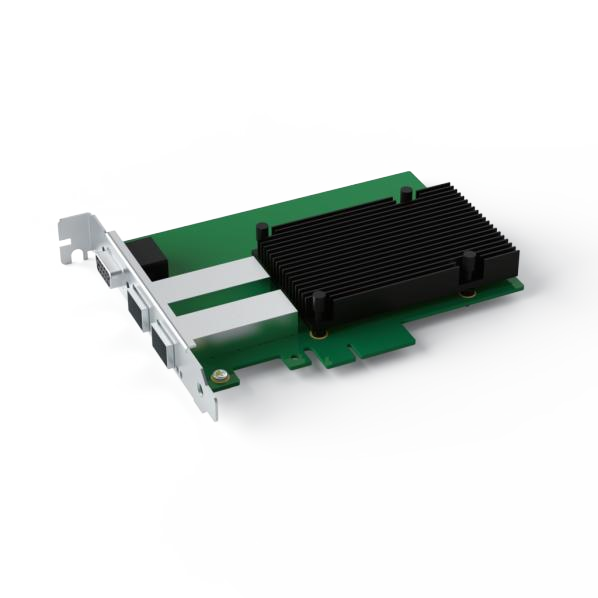

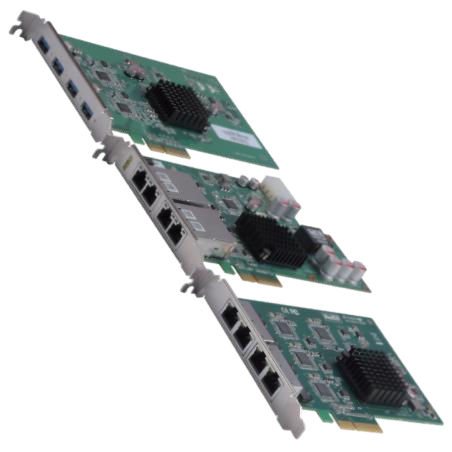

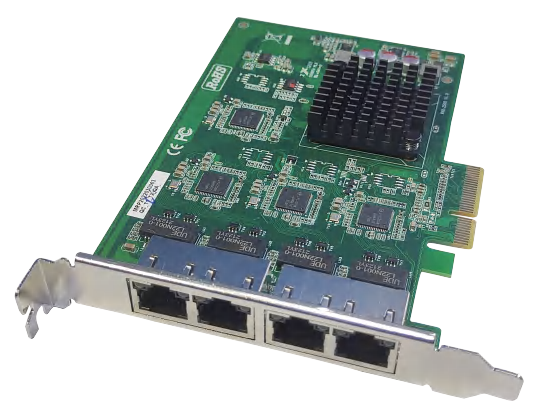

The foremost mission of an image acquisition card is to establish a dedicated high-speed data pathway. Most industrial-grade frame grabbers adopt a PCIe bus architecture. A PCIe 4.0 x4 frame grabber can deliver up to 32 GB/s of bandwidth, sufficient to support multiple 4K or even 8K cameras operating simultaneously. Frame grabbers designed for specialized high-speed interfaces—such as Camera Link and CoaXPress—can achieve data rates of up to 6.8 GB/s and 12.5 Gbps, respectively, perfectly matching the output characteristics of high-end cameras.

More importantly, frame grabbers integrate high-speed FIFO buffers that act as “data reservoirs,” absorbing sudden bursts of data and ensuring zero data loss during transmission from the camera to system memory. This capability is critical in scenarios such as high-speed production line inspection (e.g., defect detection for thousands of bottle caps per minute) and semiconductor wafer inspection.

Mission 2: A Precision Timing and Synchronization Hub to Ensure Imaging Accuracy

Applications for high-end cameras often impose stringent requirements on capture timing and multi-device coordination. For instance, in automotive component inspection, the camera must expose precisely at the moment a part reaches a specific position. In 3D vision systems, multiple cameras must capture images simultaneously from different angles to enable accurate 3D reconstruction. Such requirements cannot be met through software control alone: software triggering introduces millisecond-level latency and is susceptible to system load fluctuations. Image acquisition cards, by contrast, provide hardware-level precision synchronization.

As the “synchronization hub” of a vision system, frame grabbers support various hardware trigger modes—such as edge, level, and pulse triggering—and can interface directly with PLCs and photoelectric sensors to enable automated capture the instant a part is in place. Trigger latency can be reduced to the microsecond level. In multi-camera systems, frame grabbers use precise clock signals or PTP (Precision Time Protocol) to constrain synchronization errors between cameras to within 0.1 μs, ensuring perfect temporal alignment across viewpoints and eliminating measurement errors caused by timing offsets.

Additionally, some frame grabbers can output control signals to synchronize strobe lighting, further enhancing image clarity and forming a fully coordinated timing chain encompassing acquisition, triggering, and illumination.

Mission 3: Front-End Signal Optimization and Preprocessing to Reduce Backend Load

While the raw signals output by high-end cameras offer high precision, they are susceptible to industrial interference and often require format conversion before computer processing. Acting as a “front-end steward,” the image acquisition card is responsible not only for signal conditioning and conversion, but also for basic preprocessing that lays the groundwork for efficient backend algorithms.

In terms of signal integrity, industrial-grade frame grabbers comply with EMC (electromagnetic compatibility) standards and employ metal shielding enclosures along with differential signal transmission to effectively resist electromagnetic interference from motors and inverters commonly found on factory floors. This prevents artifacts such as noise and banding in images. For analog cameras (including some legacy medical endoscopes), frame grabbers use built-in ADCs (analog-to-digital converters) to convert analog signals into digital data while preserving color fidelity and resolution. For digital cameras, they directly parse protocols such as HDMI and Camera Link to ensure lossless signal transmission.

On the preprocessing side, high-end frame grabbers integrate FPGA chips capable of performing operations before data reaches the CPU, including pixel format conversion (e.g., RAW to RGB), flat-field correction, bad pixel correction, and ROI (region of interest) cropping. These hardware-level preprocessing steps not only reduce data volume (by removing irrelevant regions) but also significantly lower CPU workload, allowing backend algorithms to focus on core tasks such as defect detection and dimensional measurement. In semiconductor wafer inspection, for example, preprocessing by the frame grabber can filter out invalid data in advance, boosting defect detection efficiency by over 30%.

A “Core Partner” Tailored for High-End Requirements

In summary, the three core missions of image acquisition cards—high-speed data transmission, precise timing synchronization, and signal optimization with preprocessing—perfectly align with the fundamental requirements of high-end cameras for high bandwidth, high precision, and high stability. While plug-and-play cameras using USB or GigE interfaces can meet the needs of low- to mid-frame-rate and low- to mid-resolution applications, frame grabbers remain an irreplaceable core component in ultra-high-speed and high-precision industrial environments. Without the support of an image acquisition card, even the most advanced camera is like a “ship without a rudder,” unable to fully realize its value in precision manufacturing, medical diagnostics, or scientific research.

Therefore, image acquisition cards are not merely a bridge between the camera and the system; they are a critical hub that ensures the integrity and real-time performance of image data. When confronted with complex environmental interference or concurrent multi-channel high-speed signals, their hardware-level stability significantly enhances the reliability of the entire imaging system. As industrial automation continues to demand higher precision and efficiency, ongoing technological advancements in frame grabbers will further propel high-end vision applications toward greater intelligence and performance.

Looking ahead, with the deep integration of 5G, edge computing, and AI algorithms, image acquisition cards will evolve beyond data transmission and preprocessing into intelligent sensing nodes. Frame grabbers equipped with embedded AI computing capabilities will be able to perform preliminary defect screening and target pre-recognition at the front end, dramatically reducing the processing burden on backend servers.
