Product Recommendation | MV-UC1601C: Excellent cost-performance ratio, low cost and high pixel count!

Product Recommendation | MV-UC1601C: Excellent cost-performance ratio, low cost and high pixel count!

2025-08-08 15:38

In the field of intelligent manufacturing, companies often face the dilemma of balancing performance and cost when promoting intelligent upgrades. MindVision's independently developed industrial camera MV-UC1601C achieves significant cost advantages with its streamlined architecture, helping companies achieve cost-effective intelligent upgrades.

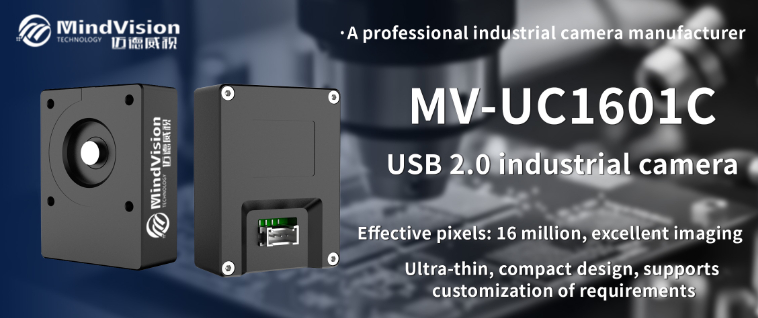

MV-UC1601C:16MP Cost-Effective Industrial Camera



Product Features


Excellent imaging performance, flexible adaptation



16-megapixel CMOS sensor

·Equipped with a 16-megapixel sensor, it captures rich image details and can clearly capture micron-level details.

·Supports multiple resolutions and frame rates, balancing clear image quality and dynamic capture capabilities to meet the needs of static detail shooting and high-speed scene recording. It can be flexibly switched according to different industrial inspection scenarios and applications.


Ultra-thin integration saves space and steps

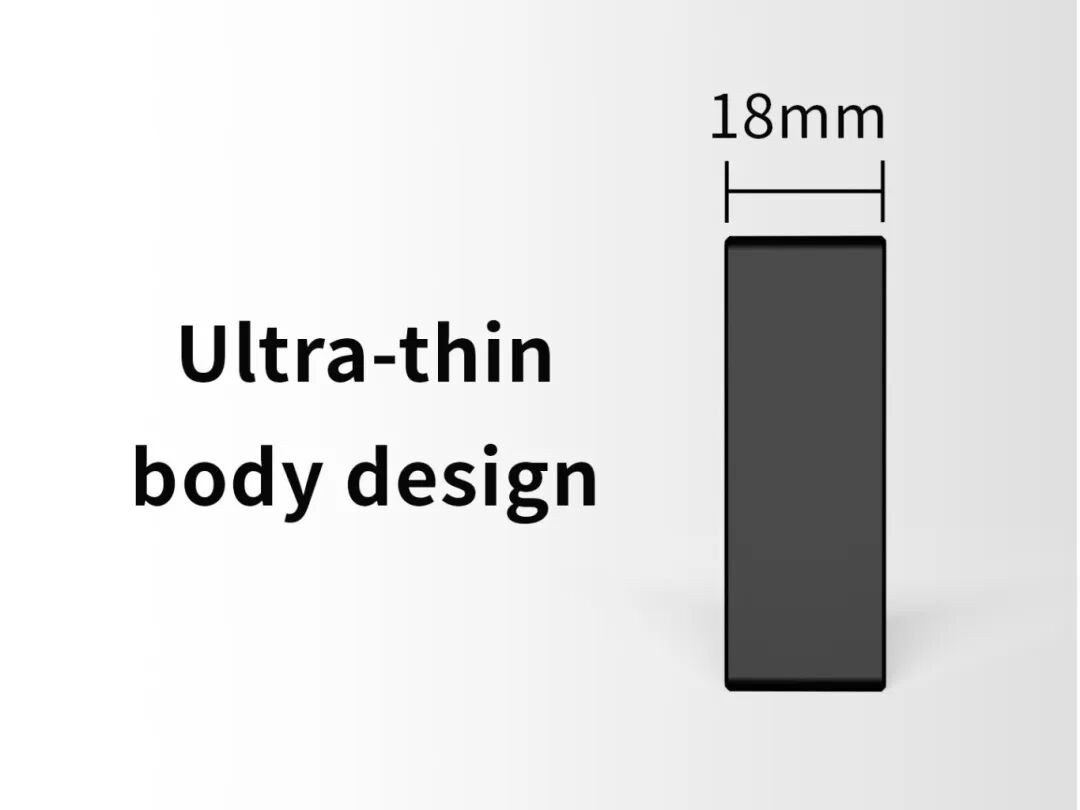

Ultra-thin camera design

Featuring a highly compact integrated design, the body is only 18 mm thick and comes with a built-in lens, eliminating the need for external lens selection and optical path calibration. It also significantly reduces equipment space while ensuring image quality, making it particularly suitable for industrial applications with limited space.

Widely compatible, seamless integration



Widely compatible, seamless integration

·Seamlessly integrates with a variety of devices and mainstream platforms (Windows, Linux, Android, Mac, etc.) to enhance convenience.

·Equipped with a standard USB 2.0 interface and a dedicated plug-in device cable. Plug-and-play functionality enables easier deployment and significantly improves system integration efficiency.

Support customization to meet individual needs


Supports comprehensive customization, allowing users to flexibly adjust hardware configurations and software functions based on detection priorities and environmental conditions, ensuring stable and efficient camera operation in complex scenarios and delivering professional-grade visual solutions at optimal cost.



Product Parameters



MV-UC1601C

optical dimensions

1/2.8"

pixel size

1.12umx1.12um

Sensor type

CMOS

Camera type

color

effective pixels

16 million

Exposure method

rolling shutter

Focusing method

manual focus

Resolution and frame rate

4656x3496@9fps

data interface

USB2.0

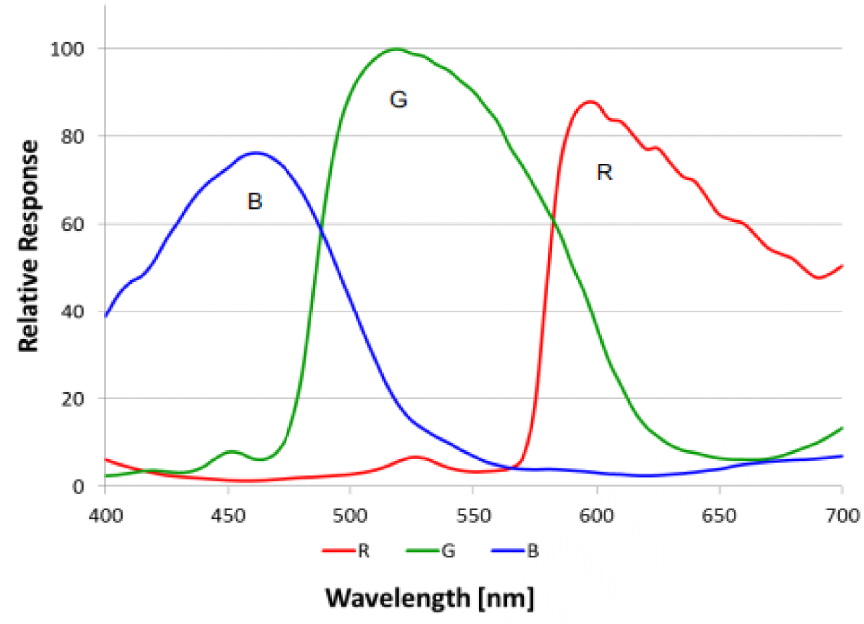

Spectrum Diagram


MV-UC1601C Spectrum Diagram




Application Industry


laser marking

laser marking



packaging printing



packaging printing

scientific research




scientific research

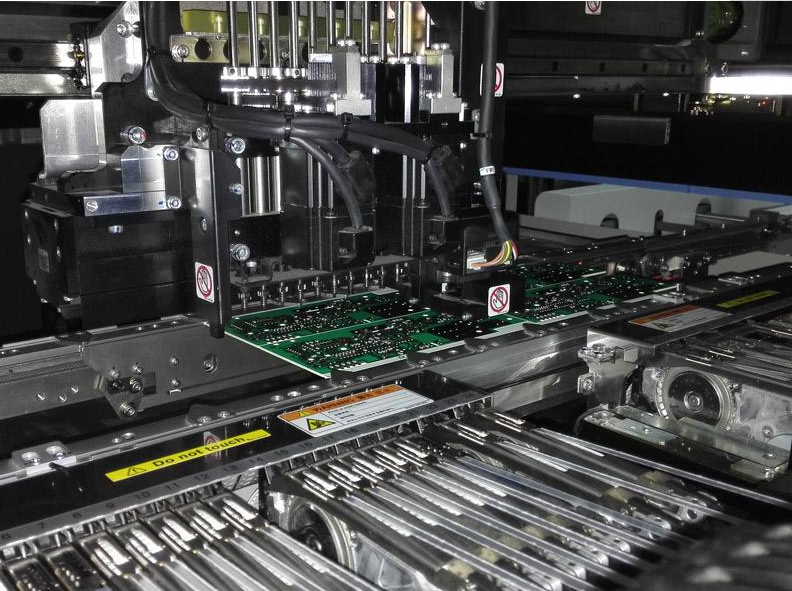

industrial inspection




industrial inspection
