Semiconductors (including PCBs) currently account for 12.2% of machine vision sales in manufacturing (based on industry exhibition reports), and this figure is growing rapidly alongside global semiconductor capacity expansion — particularly the ongoing build‑out of wafer fabrication and advanced packaging lines in China. Industry data shows that optical inspection accounts for over 75% of the semiconductor metrology and inspection segment, making vision systems strategically irreplaceable. The global AI AOI wafer inspection system market alone reached approximately $2.68 billion in 2025 and continues to expand.
What sets semiconductor inspection apart is this: it demands the highest precision of any industrial vision application, bar none. From nanometer‑scale particle defects on wafer surfaces to micron‑level coplanarity measurement in advanced packaging, to solder joint quality judgment on PCBs — every step pushes against the physical limits of optical imaging. More critically, semiconductor manufacturing has an extremely low tolerance for error: a single 300mm wafer can be worth thousands to tens of thousands of dollars, and a single missed detection causing batch scrap can result in million‑dollar losses. It is precisely for this reason that the industrial camera — the “eye” of the vision system — with its resolution, noise, dynamic range, interface bandwidth, and environmental robustness, directly sets the upper bound of the inspection system’s capability.

The precision requirements of semiconductor vision inspection span nearly five orders of magnitude — from centimeter‑level (full PCB boards) to nanometer‑level (wafer defects). Understanding this precision ladder is the foundation for equipment selection, and each level imposes distinctly different hardware demands on the industrial camera.

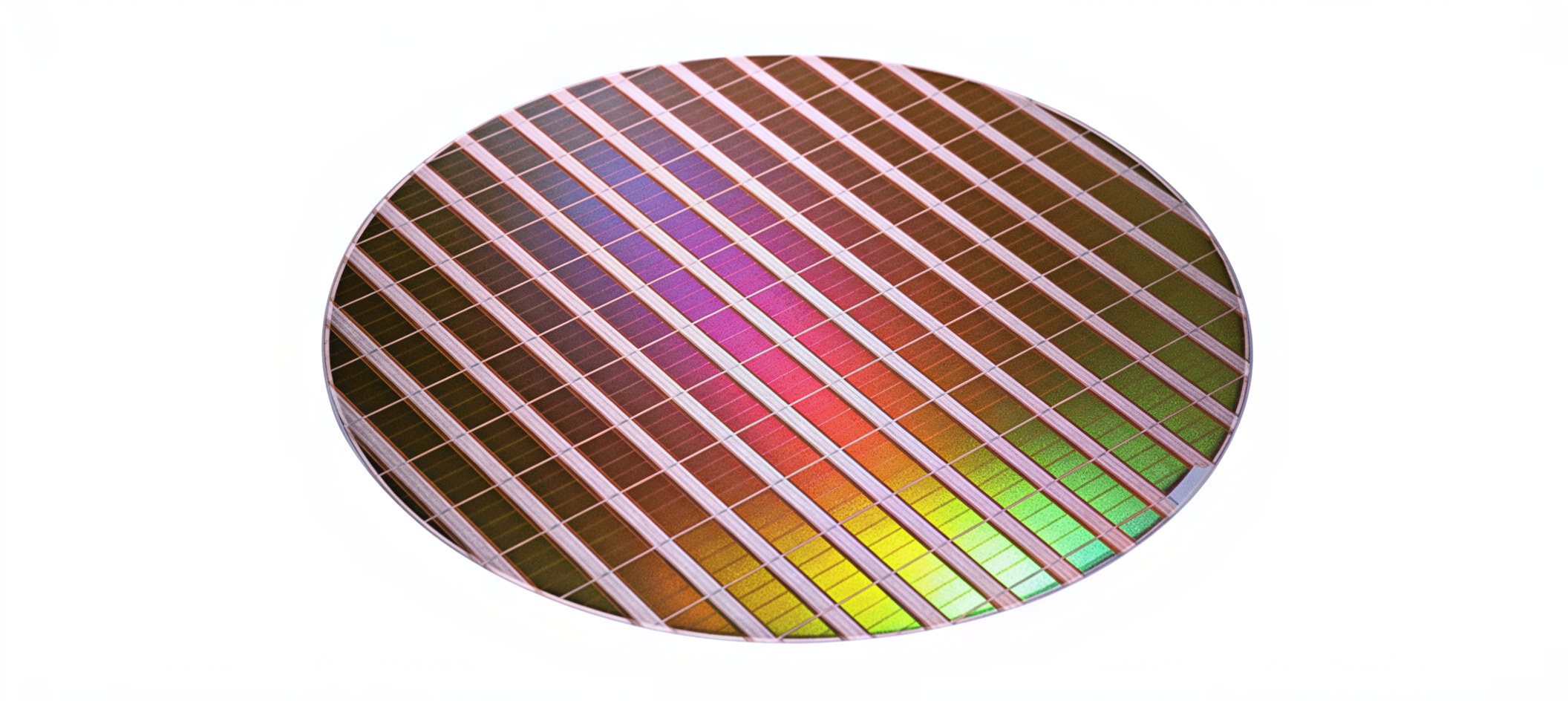

The types of defects in wafer fabrication (front‑end‑of‑line processes) are extraordinarily diverse: particles, scratches, residue, pattern defects, crystal defects, film non‑uniformity, and more. At advanced process nodes (7nm and below), killer defect sizes have shrunk to the 10–20nm range — which happens to sit near the diffraction limit of visible light.
Visible light wavelengths range approximately from 400 to 700nm. According to the Rayleigh criterion, the resolution limit of conventional optical systems is around 200–350nm — far from sufficient to directly resolve 20nm‑level defects. However, cutting‑edge research is breaking this barrier — the Microsphere‑Assisted Hyperspectral Imaging (MAHSI) system published in Light: Science & Applications in 2024, utilising the near‑field effect of microsphere lenses, achieved an optical resolution of 66nm, offering a new path for small‑spot optical metrology in semiconductor devices and suggesting future wafer inspection breakthroughs at the nanoscale under conventional optical systems. Yet, irrespective of algorithmic advances, the raw image SNR and quantum efficiency of the industrial camera remain the fundamental bedrock — no super‑resolution technique can recover true defect information from a poor‑quality input.

In parallel, SWIR (~900–1700nm) — though offering lower resolution — has carved out a distinctive niche in semiconductor inspection. Silicon is highly transparent to SWIR, enabling backside or through‑mold imaging to reveal internal defects. Academic research (e.g., in Measurement journal) shows that a Linnik‑type SWIR vertical scanning interferometer can detect internal metal microstructures in hybrid bonding samples with a lateral resolution of approximately 1.6μm (approaching the diffraction limit) and a vertical resolution of 10nm. In 2.5D/3D advanced packaging (such as HBM stacking), multilayer structures demand alignment accuracy at the 1μm level, making SWIR imaging a core enabler for interconnect yield.
Wafer‑level inspection pushes pixel size, quantum efficiency, read noise, and dark current to their absolute limits. The value of large‑format, high‑resolution cameras lies not just in “seeing clearly” but in “seeing a larger area in one shot” — in wafer full‑inspection scenarios, a larger field of view directly translates into higher throughput, the number‑one metric fabs use to evaluate inspection equipment. For instance, cameras equipped with large‑format global‑shutter sensors (1‑inch and above) cover a wider effective area in a single frame; paired with high‑bandwidth interfaces (e.g., CoaXPress), they significantly reduce scanning strokes and stitching overhead, boosting overall throughput at equivalent precision. Moreover, pixel size and dark‑current control in SWIR cameras are especially critical, because dark‑current noise accumulates more readily at longer wavelengths and must be suppressed through advanced sensor design and thermal management.

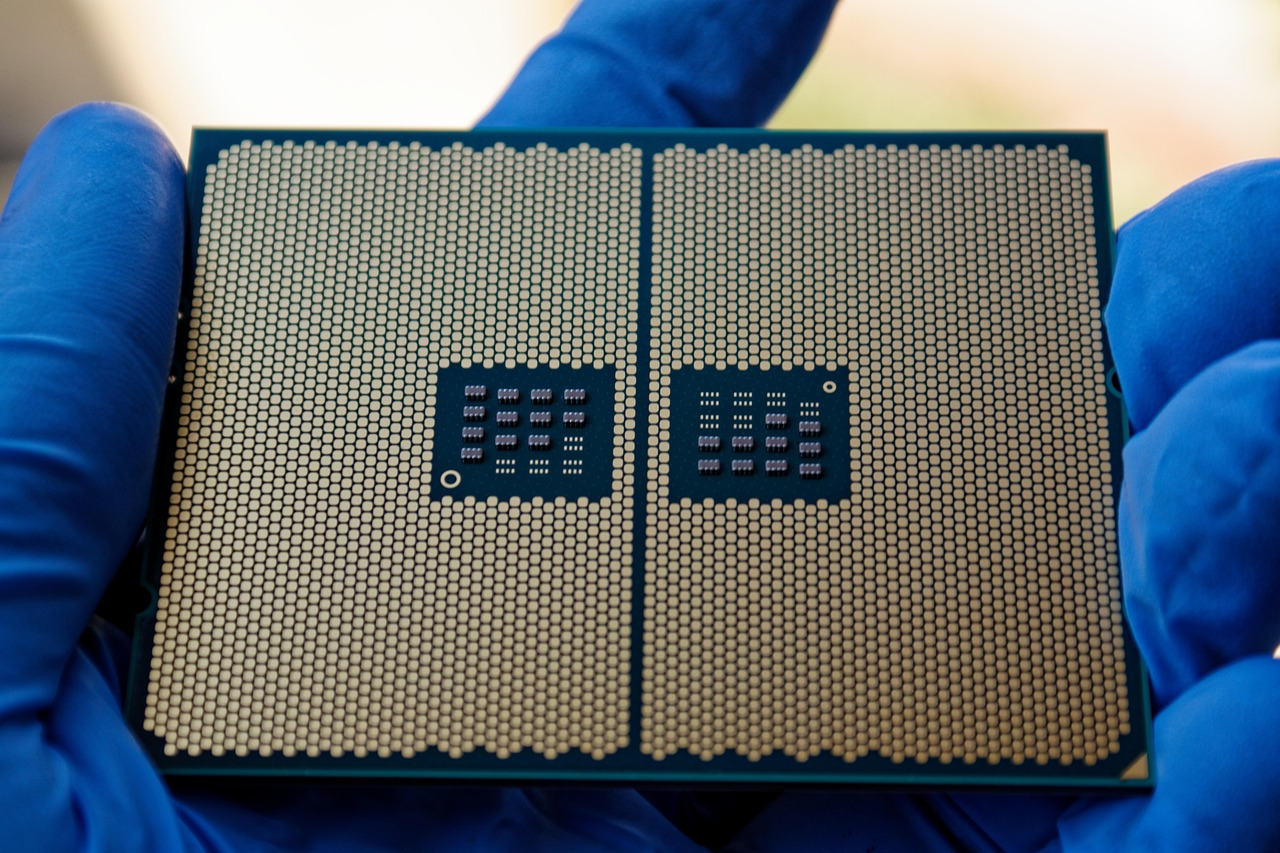

Inspection accuracy requirements in packaging (back‑end‑of‑line processes) typically fall in the 1–50μm range. Although less demanding than wafer‑level in absolute precision, package inspection faces a different challenge: multiple process steps, high volume, and stringent consistency.
Typical inspection content includes: wire bonding quality (ball diameter ±5μm, bonding position offset ±3μm); flip‑chip bump inspection (height ±2μm, diameter ±3μm, coplanarity <10μm); molding appearance; and post‑trim/form lead inspection (coplanarity ±50μm).

The requirements can be summarised in three keywords: stability, consistency, repeatability. Packaging lines typically run 24/7, and cameras must maintain zero drift over extended operation — imaging results must be consistent every startup, every day, every week. This demands excellent mechanical rigidity, well‑engineered thermal dissipation to suppress sensor temperature drift, and robust interface locking mechanisms against vibration. High‑quality industrial cameras typically reinforce these details (e.g., all‑metal housings, thermal grease filling, locking connectors) to ensure image quality remains unchanged over thousands of hours of continuous operation. In addition, package inspection often employs multi‑spectral or multi‑angle illumination, so the camera’s trigger latency and frame‑to‑frame consistency directly affect the accuracy of 3D reconstruction.

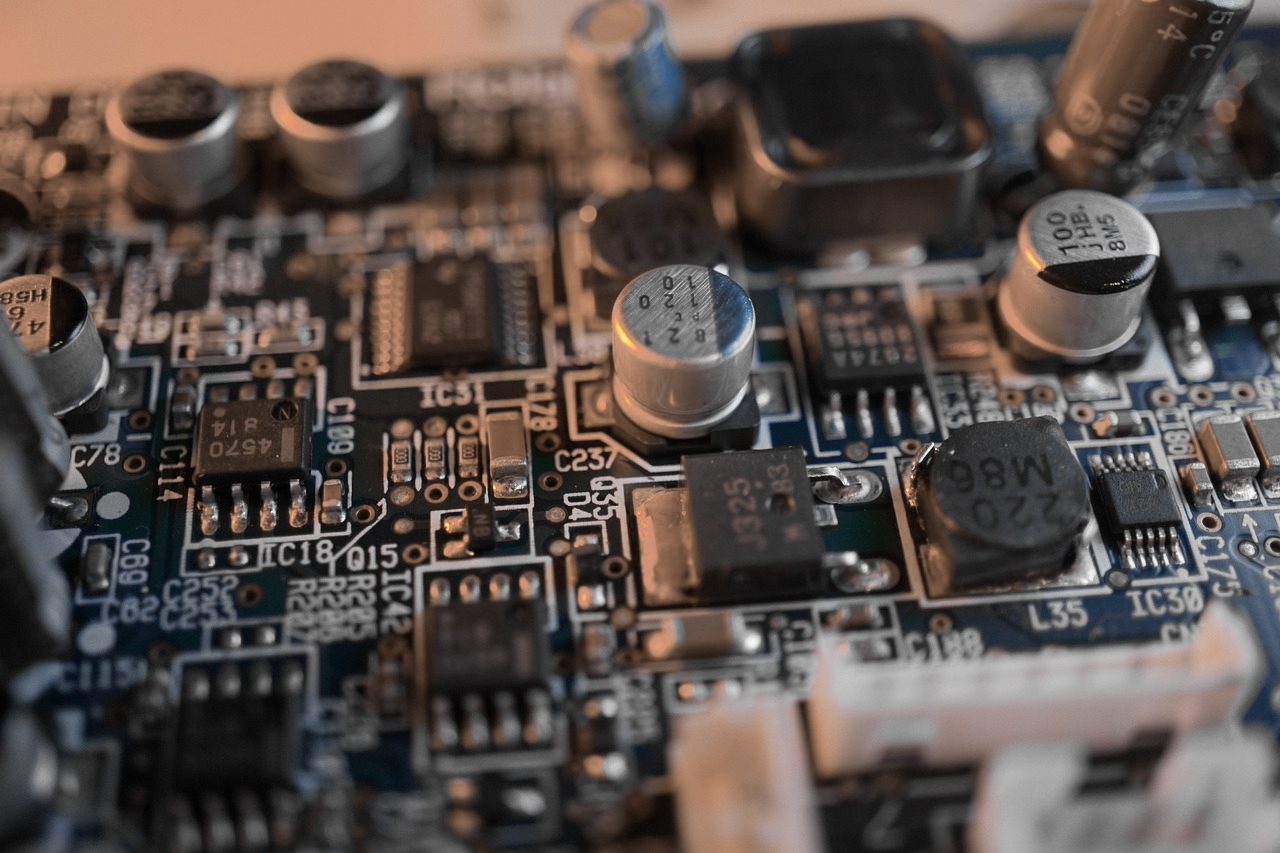

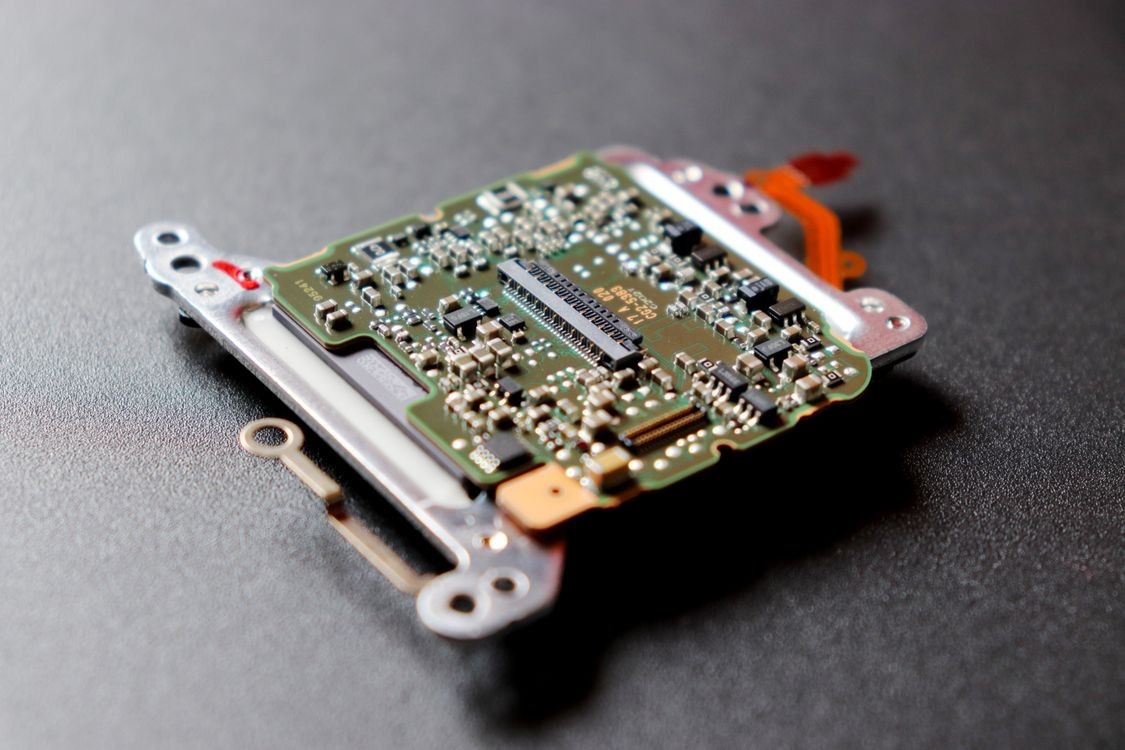

PCB/PCBA inspection represents the highest‑volume and most technologically mature segment of semiconductor vision applications. It covers bare‑board AOI, solder paste inspection (SPI), post‑placement AOI, post‑solder AOI, and X‑ray inspection.
The core challenge in PCB inspection is speed. A high‑speed SMT line can produce thousands to tens of thousands of PCBA boards per hour, and AOI equipment must complete high‑resolution full‑board scanning within an extremely short time. Mainstream industry equipment specifications are quite stringent: optical resolution ≤5–7.5μm/pixel, single FOV inspection speed <250ms, with stable detection of 01005 ultra‑small components (0.4×0.2mm) and lead pitch detection down to 0.1mm.

This imposes three‑dimensional demands on cameras — high resolution, high frame rate, and high data bandwidth. In high‑tact production lines, 1‑inch format global‑shutter cameras in the 4–12MP range are favoured for their excellent balance among resolution, frame rate, and SNR. They typically offer high‑speed interfaces like CoaXPress or GigE Vision to sustain stable data streaming for high‑speed acquisition, and their relatively larger pixel sizes (e.g., 3.45–5.5μm) maintain superior SNR even under short‑exposure strobe lighting, avoiding the noise degradation caused by over‑shrinking pixels. The actual transmission throughput (rather than theoretical peak) of the industrial camera directly determines whether the AOI equipment can keep up with the line tact time, so interface protocol efficiency and driver stability are often more critical than sheer pixel count.
In semiconductor inspection, you cannot look at resolution numbers alone. The following three variables are equally decisive, and each is intimately tied to the system‑level design of the industrial camera.
For micron‑level defect detection (such as package inspection and PCB AOI), pixel sizes in the 3.45–5.5μm range typically represent a sweet spot: pixels are large enough to ensure reasonable photon collection capacity and dynamic range, while still small enough to meet resolution requirements. Well‑designed camera families optimise for this range, balancing dark noise and full‑well capacity in sensor selection and analog front‑end design, delivering low‑noise, high‑dynamic‑range images under varied lighting conditions. The effective resolution of an industrial camera depends not only on pixel size but also on readout circuit design and digital processing algorithms — the pixel size on the datasheet does not represent final image quality; it must be evaluated together with measured modulation transfer function (MTF) and SNR curves.
Multiplying nominal frame rate by resolution gives theoretical data rate, but actual system throughput is constrained by interface protocol overhead, host‑side receive buffer size, PCIe bus bandwidth allocation, and the number of memory copies in the image processing pipeline.
Mainstream high‑speed interface options in semiconductor inspection:
| Interface | Single‑link Bandwidth | Advantages | Typical Applications |
|---|---|---|---|
| CoaXPress (CXP) | 6.25 Gbps (CXP‑6) / 12.5 Gbps (CXP‑12) | Ultra‑low latency, long distance (>40m coax), high trigger accuracy | Wafer inspection, high‑speed linescan |
| GigE Vision | 1/2.5/5/10 Gbps | Easy multi‑camera synchronisation, standard Ethernet cabling, low cost | Distributed multi‑camera systems, PCB AOI |
| Camera Link | 2.04 Gbps (Base) / 5.44 Gbps (Full) | Mature and stable, reliable hardware trigger | Package inspection, legacy equipment |
Interface selection requires holistic consideration of line tact time, multi‑camera architecture, cabling distance, and cost budget. An industrial camera platform that supports multiple interface standards offers system integrators great flexibility, allowing quick switching according to project needs without redesigning the entire imaging chain.
Vibration, temperature fluctuations, and cleanliness variations all affect vision system imaging quality. Micro‑vibrations from precision equipment can introduce sub‑pixel‑level blur; temperature changes directly impact dark current noise; cleanrooms impose strict limits on camera housing sealing. Performance figures on a datasheet often represent a “momentary” measurement, whereas the production line demands “every‑moment” consistency. Therefore, only industrial cameras that have undergone rigorous vibration, thermal cycling, and burn‑in tests can truly meet the stringent environmental demands of semiconductor manufacturing. High‑quality cameras typically incorporate specialised power filtering, clock jitter suppression, and electromagnetic compatibility (EMC) protection to ensure clean images even near strong interferers like variable‑frequency drives and motors.
Traditional semiconductor vision inspection relies on rule‑based algorithms (grayscale thresholds, template matching, etc.), which often struggle to simultaneously optimise capture rate and false positive rate for non‑standard defects. Deep learning is fundamentally changing this predicament. According to cutting‑edge research in Expert Systems with Applications, the systematic integration of deep learning with traditional computer vision algorithms achieved a 5.2‑fold improvement in defect detection sensitivity, with accuracy and recall both steadily exceeding 99%, and an average processing latency of only 1.43 seconds — meaning AI is not only more accurate but also fast enough to match high‑speed production line rhythms.
Furthermore, deep learning has shown outstanding performance in wafer defect segmentation and classification (e.g., SEM image analysis of FLASH NAND structures) and HBM bump inspection, progressively upgrading vision inspection from a “quality gatekeeper” to a “process optimisation” tool. All of this imposes a fundamental new requirement on industrial cameras: not only must they output high‑quality images for AI inference, but they must also provide low‑noise, highly linear, and highly consistent training samples at the data level — because the generalisation capability of deep learning models heavily depends on the distributional stability of training data, and any slight non‑linearity or time‑varying noise in the camera can be amplified by the model, leading to false judgements. “Garbage in, garbage out” has never been more true than in the AI era — the raw data quality of the industrial camera directly sets the upper bound of AI detection performance.
Addressing the diverse requirements across semiconductor inspection levels and the new demands of the AI era, MindVision has launched the GEC Series (Visible Light) and the Short‑Wave Infrared (SWIR) Series, providing a solid hardware foundation and flexible configurations for system integration.
Offers resolutions from 4MP to 25MP, with sensor sizes ranging from 1.1″ to 4/3″ and 1.3″, pixel sizes from 2.5μm to 6.6μm, and both global and rolling shutter options to suit different speed and precision needs. Global‑shutter models (e.g., MV‑GEC1206, MV‑GEC1606, MV‑GEC2500) excel in high‑motion scenarios; rolling‑shutter models (e.g., MV‑GEC404, MV‑GEC501, MV‑GEC2100) offer superior low‑noise and high‑dynamic‑range performance. All GEC cameras support GigE Vision or CoaXPress interfaces and are compatible with mainstream software like Halcon and VisionPro for easy integration.
| Model | Sensor Size | Pixel Size | Resolution | Frame Rate | Shutter Type |
|---|---|---|---|---|---|
| MV-GEC404C/M | 1.1″ | 5.94μm | 2048×2048 (4MP) | 28fps | Rolling |
| MV-GEC501M | 4/3″ | 6.6μm | 2640×1968 (5MP) | 21.25fps | Rolling |
| MV-GEC1206GC/M | 1.1″ | 3.5μm | 4112×3088 (12MP) | 9.25fps | Global |
| MV-GEC1606GC/M | 4/3″ | 3.5μm | 4112×4112 (16MP) | 7.25fps | Global |
| MV-GEC2100C | 4/3″ | 3.3μm | 5280×3956 (21MP) | 5.5fps | Rolling |
| MV-GEC2500GC/M | 1.1″ | 2.5μm | 5120×5120 (25MP) | 4.5fps | Global (GMAX0505) |
| MV-GEC2501GM | 1.3″ | 2.7μm | 5120×5120 (25MP) | 4.5fps | Global |
Employs high‑performance InGaAs detectors with a response wavelength of 0.4–1.7μm, ideal for wafer backside inspection, advanced packaging internal inspection, and low‑light scientific imaging. The series offers resolutions from 0.3MP to 5MP, pixel sizes from 3.45μm to 15μm, and frame rates up to 354fps (MV‑GEC31I). All models support black‑level correction for excellent image uniformity, and the GigE interface is plug‑and‑play, driver‑free for major vision software, significantly reducing development overhead.
| Model | Sensor Size | Pixel Size | Resolution | Frame Rate | Detector |
|---|---|---|---|---|---|
| MV-GEC31I | 9.6×7.68mm | 15μm | 640×512 (0.3MP) | 354fps | InGaAs (MindVision) |
| MV-GEC30I | 1/4″ | 5μm | 640×512 (0.3MP) | 241fps | InGaAs (IMX991) |
| MV-GEC130I | 1/2″ | 5μm | 1280×1024 (1.3MP) | 72fps | InGaAs (IMX990) |
| MV-GEC500I | 1/1.4″ | 3.45μm | 2592×2056 (5MP) | 22fps | InGaAs (IMX992) |
| MV-XGC500I* | 1/1.4″ | 3.45μm | 2592×2056 (5MP) | 131fps | InGaAs (IMX992) |
*Note: MV-XGC500I is a high‑speed variant for more demanding tact‑time scenarios.
Both series are engineered with industrial‑grade robustness, featuring excellent thermal stability and vibration resistance, and offer multiple interface options (GigE, CoaXPress) for flexible system integration.
Semiconductor inspection is a precision race without a finish line. From microns to nanometers, from 2D to 3D, from visible light to SWIR and multi‑spectral fusion, from rule‑based algorithms to AI‑driven decision‑making — behind every technological iteration lie ever‑higher demands on industrial camera resolution, frame rate, noise level, interface bandwidth, and environmental stability.
The 12.2% market share and continuously expanding semiconductor capacity investment mean that demand certainty in this track is extremely high. This is not a flash‑in‑the‑pan hotspot riding a cyclical wave — it is a long‑term structural opportunity driven by global computing demand growth. For vision solution providers and equipment integrators, understanding the specific demands at each level of the precision ladder, selecting the right hardware platform, and executing system‑level optimisation are the prerequisites for earning a seat at this table.
The MindVision GEC series and SWIR series are developed exactly upon this design philosophy, committed to empowering semiconductor vision inspection with solid imaging quality and flexible product combinations for higher precision and greater efficiency.
Beyond semiconductor inspection, MindVision industrial cameras are also well‑suited for a wide range of industrial vision applications, including photovoltaic, display panel, and more. If you require technical support for industrial camera selection, please contact the MindVision overseas team:
