How to Choose the Right Industrial Camera for Your Machine Vision System

1. Introduction

Industrial cameras are the eyes of modern automated manufacturing. Whether you are inspecting PCBs for microscopic defects, sorting packages at high speed, or guiding a robotic arm to sub-millimeter precision, the camera you select defines the ceiling of your entire system's performance. Yet with hundreds of models across multiple interfaces, resolutions, and sensor technologies, choosing the right machine vision camera is rarely straightforward. This guide breaks down every critical parameter — in plain engineering terms — so you can make a well-informed decision before your next project.

2. What Is an Industrial Camera? (And Why It's Not a Regular Camera)

An industrial camera is purpose-built for machine vision applications, and it differs fundamentally from consumer or even prosumer cameras. The differences are not cosmetic — they affect whether your inspection system is reliable over a multi-year production lifecycle.

Key distinguishing characteristics include:

Global shutter sensor: Every pixel on the sensor is exposed simultaneously, eliminating the motion distortion (“rolling shutter jello”) that plagues consumer cameras when imaging fast-moving parts.

Precise hardware triggering: Industrial cameras accept external trigger signals (TTL, opto-isolated) to synchronize image capture with conveyor speed or robot position to within microseconds.

Extended operating temperature range: Designed for factory environments — typically –10 °C to +60 °C — rather than the controlled conditions assumed by consumer devices.

Long product lifecycle and driver stability: Manufacturers commit to multi-year availability and stable SDK support, which is essential when the camera is embedded inside a validated inspection line.

For any serious automated inspection task, these properties are non-negotiable. A consumer camera may appear cheaper at acquisition, but the hidden costs in integration, rework, and production downtime far outweigh the initial savings.

3. Key Parameters to Understand Before Buying

Before comparing specific models, every engineer should understand the six fundamental parameters that define a machine vision camera's capability.

3.1 Resolution & Pixel Size

Resolution determines the smallest feature your system can reliably detect. As a rule of thumb, your target feature should span at least 2–3 pixels. A 5 MP camera with a 2/3" sensor, for example, delivers roughly 3.45 µm pixels — adequate for detecting 10 µm surface scratches at a working distance of 300 mm with the right optics.

However, higher resolution is not always better. Larger images consume more bandwidth, more memory, and more processing time. Select the resolution that meets your inspection specification, not the highest available.

3.2 Frame Rate

Frame rate must match the speed of your production line. If parts pass the inspection station at 1,000 mm/s and your field of view is 50 mm wide, you need at least 20 fps — and in practice, significantly more to allow for stable triggering margins. Higher frame rates also require faster lenses and brighter illumination.

3.3 Shutter Type: Global vs. Rolling

For any application involving motion — parts on a conveyor, rotating components, robotic assembly — a global shutter is the correct choice. It eliminates geometric distortion caused by sequential row readout. Rolling shutter sensors are cost-effective for static or very slow-moving subjects, such as document scanning or stationary part inspection with a strobed light source.

3.4 Interface: GigE / 10GigE / CoaXPress / USB3.0 / USB2.0

The camera interface determines maximum sustained bandwidth, cable length, and system topology:

GigE remains the most widely deployed interface for its combination of range, cost, and compatibility with standard networking infrastructure. For high-resolution area scan or fast line scan applications, CoaXPress or 10GigE are the appropriate choices.

3.5 Sensor Size

A larger sensor captures more light and delivers a wider field of view at a given working distance, but requires a larger — and more expensive — lens. Common sensor formats range from 1/3" (compact, economical) to 1" and larger (high-sensitivity, low-noise). Match sensor size to your optical budget and illumination constraints.

3.6 Color vs. Monochrome

Monochrome sensors are more sensitive (no Bayer filter loss), offer higher contrast, and are the default choice for most dimensional measurement and defect detection tasks. Color cameras are necessary when the inspection criteria depend on hue — distinguishing wire color codes, detecting staining, or verifying label printing. For most industrial applications, start with monochrome unless color is a stated requirement.

4. Area Scan Camera vs. Line Scan Camera: Which One Do You Need?

This is one of the most common questions in machine vision system design. Both types serve distinct use cases, and selecting the wrong one leads to compromises in image quality, system complexity, or cost.

Area scan cameras are the right default for the majority of factory automation tasks: picking, placing, measuring, reading codes, and checking discrete parts. They are simpler to integrate and available at a wide range of price points.

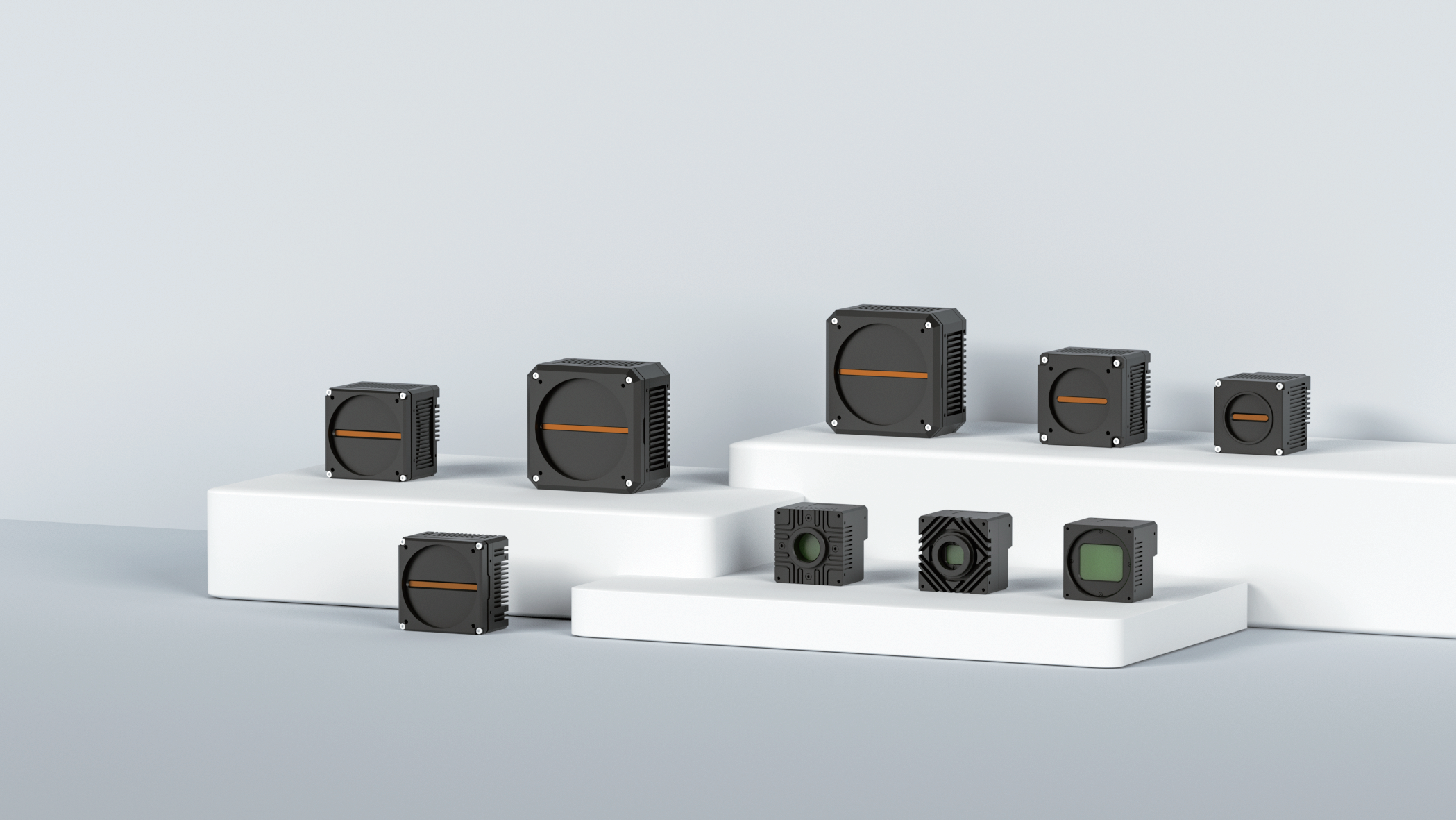

Line scan cameras become the preferred solution when inspecting continuous materials (roll goods, glass sheets, solar panels, printed labels) or when the inspection width greatly exceeds what a practical area scan sensor can cover at adequate resolution. They are widely used with GigE, 10GigE, and CoaXPress interfaces to match throughput requirements.

5. Beyond Standard Cameras: Specialized Imaging for Demanding Applications

Standard visible-light cameras cover the majority of inspection tasks, but some applications require specialized sensor technologies to make previously invisible features detectable.

UV Industrial Camera

UV cameras are sensitive to ultraviolet wavelengths (typically 200–400 nm). They are used in fluorescent dye inspection (finding cracks and leaks), PCB trace verification, and surface contamination detection where UV excitation causes target materials to fluoresce. UV imaging can reveal defects that are completely invisible under standard white or near-infrared illumination.

Short-Wave Infrared (SWIR) Camera

SWIR cameras (900–1700 nm) see through many materials that block visible light — silicon wafers, certain plastics, thin films, and agricultural produce. They are used for semiconductor wafer inspection, moisture detection in food and agriculture, film thickness measurement, and solar cell electroluminescence testing. SWIR imaging provides a fundamentally different view of material properties.

Thermal Infrared Camera

Thermal cameras detect emitted heat rather than reflected light, producing a temperature map of the scene. They are essential for monitoring battery packs for thermal runaway risk, detecting motor and electrical component overheating in predictive maintenance, and process temperature uniformity inspection. No contact with the measured surface is required.

3D Industrial Camera

3D cameras — using structured light, laser triangulation, or time-of-flight principles — add depth information to the image. They enable height measurement of solder joints, volume measurement of packaged goods, robot bin-picking guidance, and flatness inspection of large surfaces. 3D imaging eliminates the ambiguities inherent in projecting a 3D world onto a 2D sensor.

6. Matching the Right Camera to Your Industry

Camera selection is not purely a sensor exercise — it must account for the specific defect types, throughput requirements, and environmental conditions of your target industry.

3C Electronics

PCB and FPC inspection demands high resolution to detect sub-100 µm opens, shorts, and solder defects. Area scan cameras with resolutions from 5 MP to 20 MP, global shutters, and GigE or USB3.0 interfaces are standard. UV cameras add value for solder paste fluorescence verification.

Semiconductor

Wafer and die inspection requires the highest spatial resolution combined with vibration isolation and cleanroom compatibility. CoaXPress cameras with large sensors deliver the bandwidth needed for full-wafer imaging. SWIR cameras inspect silicon substrates from the back side.

New Energy

Battery cell and electrode inspection involves both dimensional measurement (electrode tab alignment, coating width) and surface defect detection (pinholes, delamination). Line scan cameras are preferred for electrode roll inspection; area scan cameras handle discrete cell checks at end-of-line.

Logistics

High-throughput parcel sorting requires cameras that can read 1D/2D barcodes and capture dimensional data at conveyor speeds exceeding 2 m/s. GigE area scan cameras with global shutters and wide dynamic range handle ambient lighting variation in warehouse environments.

Automotive

Weld seam inspection, stamped part measurement, and surface finish verification all fall within the automotive quality control scope. 3D cameras measure geometric features; high-resolution area scan cameras detect surface defects; thermal cameras monitor welding process stability.

7. Common Mistakes When Selecting an Industrial Camera

Even experienced engineers encounter the same recurring selection errors. Awareness of these pitfalls saves significant integration time.

Selecting excessive resolution: A 20 MP camera generates four times the data of a 5 MP camera. If your interface bandwidth or host PC processing throughput cannot handle the data rate, frame rate drops and the system throughput bottleneck shifts from the production line to the vision system. Always calculate the required data rate before committing to a resolution.

Ignoring interface bandwidth and CPU load: The camera interface must be matched to the host system. A 10GigE camera connected to a 1GigE NIC will be throttled. Multiple cameras on the same switch require careful bandwidth planning. USB3.0 cameras can saturate CPU buses on embedded systems — verify your platform specifications.

Overlooking environmental and mechanical stability: Factory floors produce vibration, EMI, temperature swings, and particulate contamination. Cameras without adequate thermal margins, sealed housings, or robust mounting threads will exhibit drift or premature failure. Check the operating temperature specification and IP rating for your installation environment.

Neglecting SDK and software compatibility: The camera must integrate with your vision software platform — whether that is a commercial package like Halcon or VisionPro, an open-source framework, or a custom application. Verify that the manufacturer provides a stable, well-documented SDK for your target operating system and that the driver model is compatible with your frame grabber or NIC.

8. Why Choose MindVision as Your Industrial Camera Manufacturer

MindVision is a dedicated industrial camera manufacturer with a product portfolio that spans the full range of machine vision requirements — from cost-effective entry-level GigE industrial cameras starting at approximately $165, to high-performance CoaXPress and 10GigE models for demanding high-speed applications.

The breadth of MindVision's product line means that system integrators can source multiple camera types — area scan, line scan, smart cameras, and specialized imaging (UV, SWIR, thermal infrared, 3D) — from a single vendor with consistent SDK architecture. This simplifies driver management, reduces integration overhead, and provides a unified technical support channel across different project phases.

MindVision also offers board-level camera modules for OEM integration and custom configuration services for projects with unique mechanical, optical, or firmware requirements. With a customer base spanning 3C electronics, semiconductor, new energy, automotive, and logistics sectors globally, MindVision brings application-specific experience to both standard and specialized deployments.

For engineers evaluating options, MindVision's combination of product depth, competitive pricing, and customization capability represents a practical alternative to larger incumbents — without compromising on technical specifications or support.

9. Conclusion

Selecting the right industrial camera for a machine vision system is a structured process, not a guessing exercise. Start with your inspection requirement — the smallest feature, the required throughput, and the environmental constraints. Map those requirements to resolution, frame rate, shutter type, and interface. Then evaluate whether a standard area scan camera suffices or whether line scan, 3D, or specialized spectral imaging is warranted. Finally, verify software compatibility and confirm that the manufacturer can support the product lifecycle your application demands.

Ready to specify your next machine vision camera? Browse MindVision's complete product line at mindvision.ltd or contact the MindVision engineering team to discuss your specific application requirements.
