As machine vision technology penetrates deeper into high-precision and full-spectrum applications, traditional visible light imaging often falls short when dealing with special materials (such as silicon wafers, plastics, and organic liquids) or specific wavelengths (such as infrared lasers). Short-Wave Infrared (SWIR), with its unique "physical penetration" and "chemical signature identification" capabilities, is becoming an absolute mainstay in industrial inspection, scientific research, and beyond.

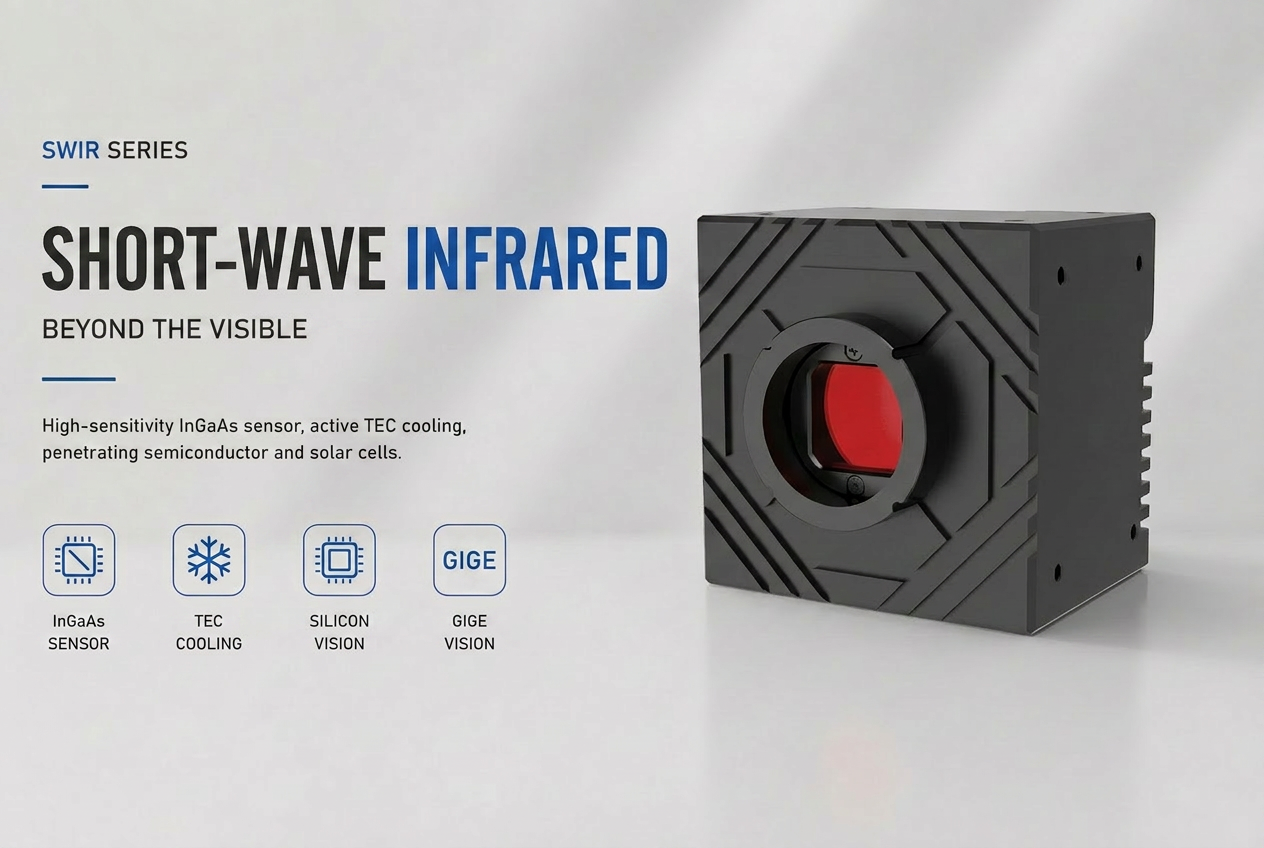

As a pioneer in the industrial camera sector, MindVision has launched the MV-GEC130I SWIR Industrial Camera. Equipped with a high-sensitivity InGaAs detector, active Thermoelectric Cooling (TEC) technology, and an outstanding software/hardware ecosystem, it delivers a highly cost-effective and ultra-stable system-level imaging solution for cutting-edge applications like semiconductor defect inspection, solar cell detection, and laser spot tracking.

Short-Wave Infrared generally refers to the electromagnetic spectrum between 0.9μm and 1.7μm (extending up to 2.5μm). Compared to visible light (0.4~0.76μm) and long-wave infrared (8~14μm, thermal imaging), SWIR possesses indispensable physical characteristics:
· Material Penetration Effect: Many materials completely opaque to visible light appear semi-transparent or entirely transparent in the SWIR spectrum. For example, monocrystalline silicon is transparent to SWIR wavelengths greater than 1.1μm. This enables direct observation of internal defects or wafer backsides without destructive de-packaging.
· Specific Chemical Absorption Signatures: Water (H₂O), hydrocarbons, and plastics have distinct absorption peaks in the SWIR region. Leveraging this, SWIR cameras easily identify moisture distribution, foreign object intrusion, and sort plastics of different chemical makeups based on light intensity contrast.
· Low Scattering & High Penetration: Because SWIR wavelengths are longer than visible light, they scatter significantly less in air. This allows them to penetrate smoke, haze, certain coatings, and turbid liquids to capture clear, high-contrast underlying details.
The MindVision MV-GEC130I is a scientific-grade SWIR GigE camera specifically engineered for low-light scientific research, microscopy, and high-precision online industrial inspection. Here are the four key hardware technologies that support its high-end performance:
The MV-GEC130I utilizes an advanced InGaAs (Indium Gallium Arsenide) focal plane array. Unlike conventional infrared cameras that only respond to wavelengths above 900nm, this camera features a specialized chip design and process optimization that broadens the spectral response range to 0.4μm ~ 1.7μm. This means it can capture both SWIR and visible light on a single sensor, simplifying optical system design and enabling cross-band multi-spectral fusion inspection.
InGaAs materials are highly susceptible to dark current noise at room temperature due to thermal excitation, which can lead to excessive hot pixels in low-light or long-exposure imaging. The MV-GEC130I is integrated with a highly efficient TEC (Thermoelectric Cooling) system, achieving a cooling temperature difference of up to 20°C below ambient. By precisely controlling the sensor temperature, dark current noise is suppressed exponentially. This dramatically improves the Signal-to-Noise Ratio (SNR) and dynamic range, ensuring clean, high-fidelity infrared images even under weak-light scientific conditions or extended exposure times.
Due to manufacturing limits, InGaAs sensors inherently exhibit higher pixel non-uniformity than silicon-based CMOS. MindVision solves this by integrating robust hardware-level ISP algorithms directly in the camera firmware:
· Black Level Correction: Ensures superb background uniformity and image consistency.
· Defect Pixel Correction: Automatically identifies and compensates for bad pixels in real-time.
· 3D Noise Reduction & Custom LUTs: Significantly reduces random noise and allows users to customize gray-level mapping for specific spectral reflectances.
Featuring a 1280 × 1024 resolution with a 5μm × 5μm pixel size, the camera achieves a frame rate of up to 72 FPS at full resolution and fully supports custom ROI (Region of Interest) resolutions. The GigE interface enables lossless, zero-latency transmission over distances up to 100 meters and natively supports GigE Vision and GenICam protocols for seamless integration into high-throughput industrial inspection lines.
The exceptional spectral characteristics and thermal management of the MV-GEC130I make it a cornerstone in precision manufacturing and cutting-edge laboratory research:
· 1. Semiconductor Wafer & Chip Defect Inspection
During semiconductor packaging and wafer stacking, micro-cracks or alignment deviations can easily occur. Because monocrystalline silicon is transparent to SWIR (>1100nm), the MV-GEC130I, paired with a SWIR backlight, can directly "see through" the silicon wafer.
o Inspection Items: Internal micro-cracks, scratches, voids, MEMS device package hermeticity, and wafer-to-wafer micron-level alignment.
o Value: Enables 100% non-destructive, online yield inspection.
· 2. Solar Wafer & Cell EL / PL Inspection
In the photovoltaic industry, defects such as cracks, micro-cracks, and broken gate lines severely degrade solar cell efficiency.
o EL (Electroluminescence): Feeding a forward current through the cell causes it to emit infrared light in the 1150–1350nm range.
o PL (Photoluminescence): Uses a specific wavelength laser to excite fluorescence from the wafer.
o MV-GEC130I Advantage: The high sensitivity of the InGaAs chip, combined with active TEC cooling, allows the camera to capture extremely faint emissions, instantly revealing cracks, grid breaks, and uneven carrier lifetime distributions.
· 3. Laser Spot Tracking & Precision Profiling
In optical communications, industrial laser processing, and military research, 1064nm, 1310nm, and 1550nm are the most commonly used infrared laser wavelengths. Traditional silicon-based cameras cannot detect these wavelengths due to physical sensor limitations (almost zero response above 1100nm).
o Application: The MV-GEC130I directly detects and profiles 1064nm pump lasers and 1550nm telecommunication fiber lasers, analyzing beam shape, spatial energy distribution, and collimation.
· 4. Scientific Low-Light & Microscopy Fluorescence Imaging
In life sciences and chemistry, Second Near-Infrared (NIR-II, 1000nm–1700nm) fluorescence imaging offers deep penetration, low scattering, and minimal autofluorescence interference.
o Research Use: Active TEC cooling allows long integration exposure times to record the dynamics of novel fluorescent probes (like carbon nanotubes or quantum dots) inside biological tissues with high SNR.
· 5. Hyperspectral Imaging & Industrial Sorting
Different materials possess distinct absorption spectral footprints in the SWIR range.
o Sorting Applications: Sorting visually identical plastics (PET, PP, PE); non-destructively removing debris (stones, metal, twigs) from tea leaves or nuts; and identifying internal rot or moisture variations in agricultural products via water absorption peaks (e.g., 1450nm).
MindVision provides a mature and powerful software ecosystem for the MV-GEC130I, significantly shortening development cycles for system integrators:
· Native Third-Party Support: Driverless compatibility with industry-leading vision software including Halcon, VisionPro, Labview, and Cognex.
· Robust Cross-Platform SDKs: Supports Windows XP/7/8/10/11 (32/64-bit), Linux (32/64-bit), ARM Linux, Android, and macOS.
· Multi-Language SDKs: Offers comprehensive development packages and sample codes for C, C++, C#, VB6, VB.NET, Delphi, BCB, Python, and Java, backed by professional technical support.
For your system sourcing and integration evaluation, we have compiled the camera's core specifications below:
Category | Technical Feature | Specification Details |
Sensor Characteristics | Sensor Material | 1/2" Scientific-grade InGaAs (Indium Gallium Arsenide) FPA |
Resolution / Pixels | 1.3 Megapixels / 1280 × 1024 | |
Pixel Size | 5.0 μm × 5.0 μm | |
Spectral Range | 0.4 μm ~ 1.7 μm (covers both visible light and SWIR) | |
Cooling System | Cooling Method | High-efficiency Thermoelectric Cooling (TEC) |
Cooling Performance | ΔT up to 20 ℃ (effectively minimizes dark current noise) | |
Exposure & Gain | Shutter Mode / Exposure Range | Global Shutter / 0.0130 ms ~ 7987.2 ms |
Sensitivity | 121mV (1/30s) | |
Maximum Gain | 126x | |
AD Conversion Width | 12bit | |
Interface & Protocol | Communication Interface | Gigabit Ethernet (GigE - RJ45) |
Compliance Standards | GigE Vision, GenICam | |
Video Output Format | Mono 8bit / Mono 12bit | |
Frame Buffer | 256M Bytes DDR3 | |
Electrical & GPIO | Pin Definition / Connector | 12-Pin Circular connector (Trigger, Strobe, GPIO) |
Input Voltage / Power | 12V ~ 24V DC ±10% / Power consumption < 12W | |
Physical & Environmental | Dimensions (W×H×L) | 69 mm × 69 mm × 44 mm (excluding lens mount & rear interface) |
Weight / Lens Mount | < 250 g / Standard C-Mount | |
Operating Temp / Humidity | 0 ℃ ~ 50 ℃ / 20% ~ 80% RH (non-condensing) | |
Storage Temp / Humidity | -30 ℃ ~ 60 ℃ / 20% ~ 95% RH (non-condensing) | |
SDK & OS Support | Operating Systems | Windows XP/7/8/10/11, Linux, ARM Linux, Android, macOS |
Programming Languages | C, C++, C#, VB6, VB.NET, Delphi, BCB, Python, Java |
SWIR cameras were once cost-prohibitive for many integrators. The MindVision MV-GEC130I breaks this barrier, providing a high-performance, robust, and cost-effective solution that matches foreign competitors in image uniformity, cooling stability, and software integration.
Whether you are performing wafer alignment, EL solar micro-crack screening, or low-light microscopy research, the MV-GEC130I is your ultimate "penetrating eye" in the 0.4~1.7μm spectrum.
