Eliminate Frame Loss in Machine Vision Systems

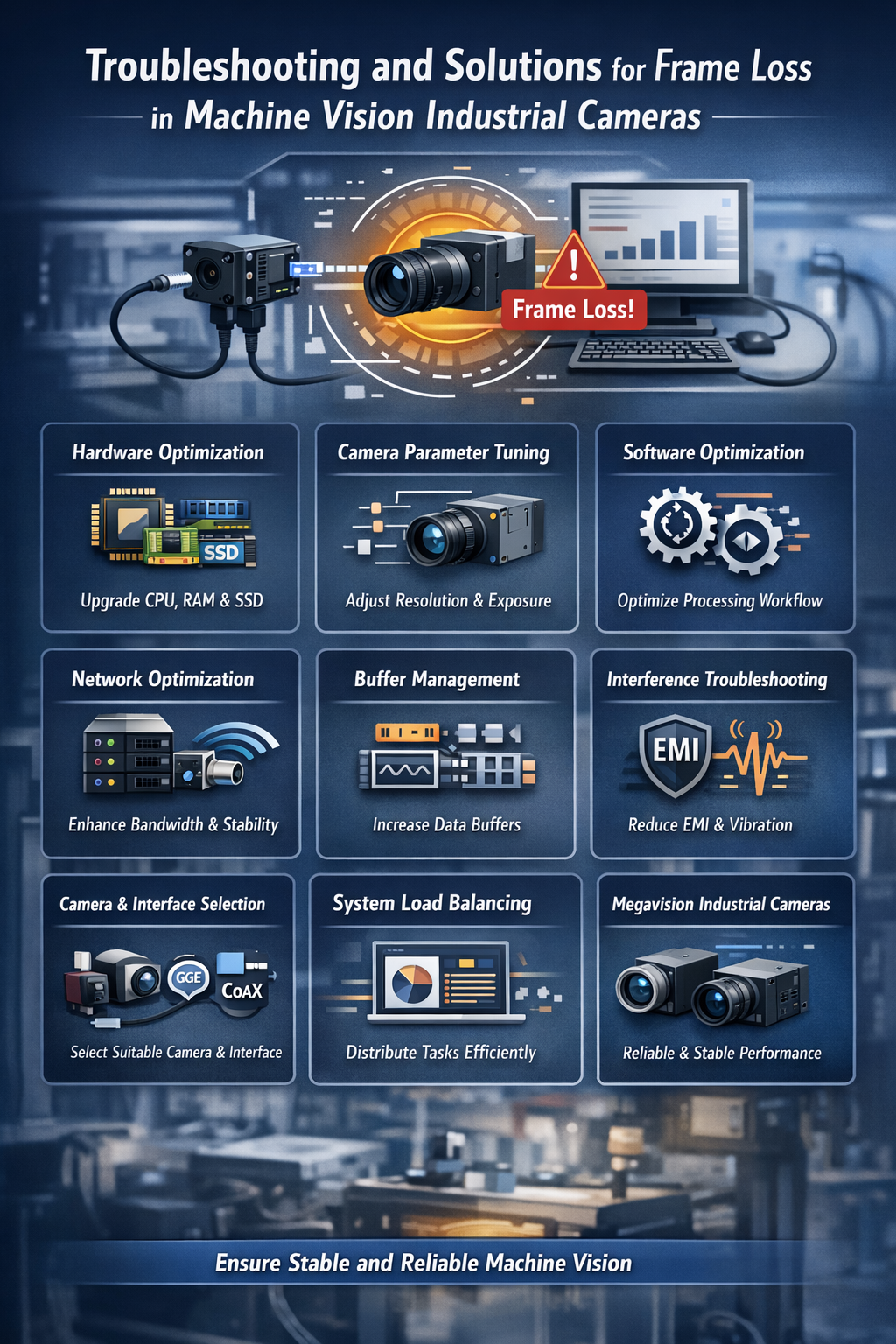

Troubleshooting and Solutions for Frame Loss in Machine Vision Industrial Cameras

In machine vision industrial applications, frame loss is a typical pain point that affects inspection accuracy and production line stability. Especially in high-speed inspection and precision measurement scenarios, even a single dropped frame may lead to product misjudgment or missed detection, increasing production costs and potentially causing line downtime.

Essentially, frame loss occurs when bottlenecks or interference arise across the entire image data pipeline—acquisition, transmission, processing, and storage—resulting in some frames not being fully received or processed. The causes span hardware, software, and environmental factors, and are rarely due to a single issue.

For field engineers, resolving frame loss requires systematic troubleshooting and targeted optimization based on system configuration and application scenarios. The following practical guidelines summarize proven solutions from industrial field experience.

1. Hardware Optimization: Build a Solid Foundation for Data Transmission and Processing

Hardware limitations or connection issues are the primary causes of frame loss, especially in high-resolution and high-frame-rate applications.

• Upgrade host processing and storage hardware
  High-resolution, high-bit-depth image data demands strong CPU, memory, and storage performance. Insufficient processing power or memory leads to delayed decoding and processing, causing frame loss.
  Recommendations:

  • Industrial-grade CPUs (multi-core, high-frequency, e.g., Intel Xeon or AMD Ryzen Industrial series)

  • Minimum 16GB RAM (32GB+ for high-frame-rate scenarios)

  • SSD storage (≥500 MB/s read/write speed)
    Avoid mechanical drives due to latency. Ensure motherboard interfaces match camera and frame grabber bandwidth.

• Ensure stable camera-to-host connections
  The transmission link is critical. Poor cables or loose connections can cause packet loss and dropped frames.

  • Use manufacturer-recommended cables (USB3.0, GigE, CoaXPress)

  • Avoid low-quality or extended cables (USB3.0 < 5m; GigE > 100m requires repeaters)

  • Regularly inspect and clean connectors

  • Use appropriate interface cards (e.g., PCIe 4.0, x4 or above)

2. Camera Parameter Tuning: Balance Acquisition Efficiency and Data Load

Improper camera settings may generate excessive data or increase processing difficulty.

• Adjust resolution and frame rate
  Higher resolution and FPS increase data volume. Reduce settings when possible:

  • Lower resolution (e.g., 8MP → 4MP)

  • Enable ROI (Region of Interest)

  • Match frame rate to system processing capability

• Optimize exposure and gain

  • Long exposure reduces effective frame rate and may cause motion blur

  • High gain increases noise and processing load
    Adjust exposure and gain to balance clarity and performance. Ensure exposure time fits within frame interval (e.g., ≤16.7 ms for 60 FPS).

3. Software Optimization: Improve Data Processing Efficiency

• Optimize image processing workflows

  • Disable unnecessary display or processing steps

  • Use multi-threaded asynchronous architecture (producer-consumer model)

  • Optimize algorithms (e.g., in Halcon or OpenCV) to reduce CPU usage

• Ensure driver compatibility

  • Update to the latest camera drivers

  • Verify compatibility with OS (Windows/Linux) and vision software (Halcon, VisionPro)

  • Use SDK diagnostic tools to detect transmission errors

4. Network Optimization (for GigE / 10GigE Cameras)

• Increase bandwidth and stability

  • Use matching network equipment (GigE or 10GigE)

  • Isolate camera network from office network

  • Enable full-duplex mode, adjust NIC parameters

• Reduce interference and packet loss

  • Use shielded Ethernet cables

  • Avoid routing alongside power lines

  • Use fiber optics for long-distance transmission

5. Buffer Optimization: Handle Peak Data Loads

• Adjust system buffers

  • Set appropriate buffer sizes in SDK or frame grabber

  • Enable camera onboard memory (FIFO)

• Optimize storage buffering

  • Use memory caching before disk writing

  • Avoid real-time write bottlenecks

6. Interference Troubleshooting: Eliminate Environmental Factors

• Electromagnetic interference (EMI)

  • Keep systems away from motors, inverters, high-voltage equipment

  • Use shielded cables and proper grounding (<4Ω)

• Vibration issues

  • Secure camera mounting

  • Use anti-vibration brackets

  • Regularly check connectors and lenses

7. Camera and Interface Selection: Prevent Issues at the Source

• Camera selection

  • Match resolution and frame rate to application

  • Use global shutter for high-speed scenarios

  • Choose industrial-grade cameras for harsh environments

  • Ensure synchronization support for multi-camera setups

• Interface selection

  • USB3.0: short distance, cost-effective

  • GigE: long distance, flexible networking

  • CoaXPress: high bandwidth (up to 12.5 Gbps), high stability

  • Camera Link: low latency, high precision

Ensure compatibility across all components.

8. System Load Balancing: Avoid Resource Contention

• Allocate system resources properly

  • Prioritize acquisition and processing threads

  • Reduce background processes

  • Adjust process priority (especially in Linux)

• Avoid multi-device contention

  • Distribute workloads across systems

  • Use distributed architectures for multi-camera setups

9. Megavision Industrial Cameras: Reliable Transmission, Eliminating Frame Loss Risks

Beyond troubleshooting and optimization, selecting a stable and reliable industrial camera is key to preventing frame loss at the source.

Megavision industrial cameras, with deep expertise in machine vision, leverage advanced hardware design and software optimization to ensure high stability and minimal frame loss. By optimizing camera hardware, transmission links, and driver compatibility, Megavision provides engineers with dependable solutions to eliminate frame loss concerns and ensure stable system operation.

You may contact us at chenguo@mindvision.com.cn to gain more in-depth technical insights and practical applications in the fields of machine vision and optical imaging.
