Pixel Format: A Critical Parameter Often Overlooked in Industrial Vision System Development

Industrial Vision Pixel Format Selection Guide: Choose the Right Format to Double Inspection Effic

2026-03-24 13:36

Many people overlook a critical parameter when building industrial vision systems—the pixel format. Little do they know, it directly determines image storage efficiency, color accuracy, and data processing workload. Choosing the right format can double inspection efficiency, while the wrong choice may lead to false detections and missed defects.

1. What Exactly Is Pixel Format?

Put simply, pixel format refers to the data storage method and organizational rule for each pixel when an industrial camera captures images. It acts like the packaging format for image data—different packaging methods determine the data size, contained information (grayscale/color), and difficulty of subsequent processing.

The core value of an industrial camera is to accurately capture valid information, and pixel format directly defines what information is collected:

If you only need to detect part defects, no color information is required.
If you need to distinguish colored materials, a color-reproducing format is essential.

Common pixel formats for industrial cameras fall into four main categories: Mono (monochrome), Bayer, RGB, and YUV.

2. Four Common Pixel Formats: Features, Differences & Applications

The key difference between pixel formats lies in whether color information is included and how it is stored, which defines their suitable scenarios.

1) Mono Format: The Efficiency King of Monochrome Imaging

Mono (monochrome/grayscale) format is the mainstream choice for industrial monochrome cameras.

Each pixel stores only luminance (grayscale) data, with no color information.

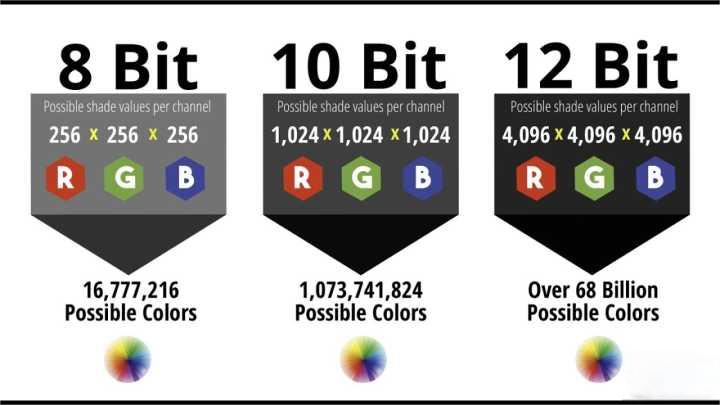

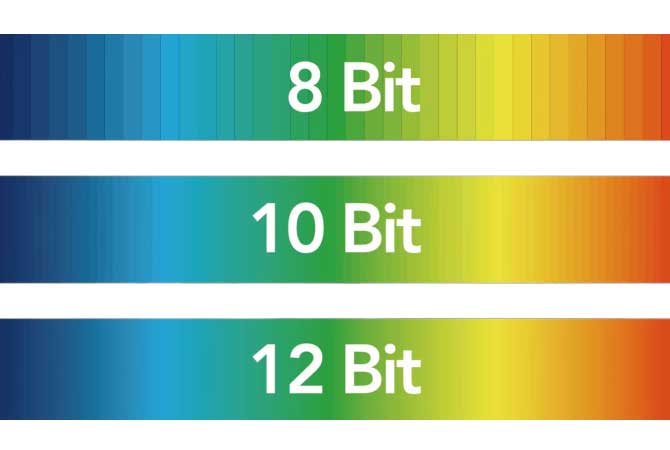

Mono 8: 8 bits per pixel, grayscale range 0–255 (0 = pure black, 255 = pure white)
Mono 10: 10 bits per pixel, grayscale range 0–1023, with richer detail

Core Advantages:

Smallest data volume, highest storage/transmission efficiency, and highest camera frame rate; low sensitivity to lighting changes, ensuring stable inspection.

Applications:

Color-independent tasks such as dimensional measurement, surface defect detection (scratches, cracks, missing material), and barcode reading.

Example: A 3C product frame dimension inspection using Mono 8 achieves 300 FPS, far exceeding color formats and matching high-speed production line cycles.

2) Bayer Format: Raw Data Format for Color Cameras

Bayer is the native raw format for color industrial cameras, designed to capture color with minimal data.

A Bayer filter array (common GR/GB/BG patterns) covers the image sensor; each pixel records only one of R/G/B, with the other two colors interpolated from adjacent pixels.

Core Advantages:

Much smaller data size than RGB (close to Mono), balancing color recognition, frame rate, and storage efficiency.

Limitations:

Color accuracy depends on interpolation, causing slight color shifts and potential false colors at edges.

Applications:

Color inspection with moderate accuracy requirements, such as material color sorting and basic product color deviation checks.

Example: A food packaging sorting line uses Bayer format to distinguish flavor packages, meeting inspection needs while limiting processing load.

3) RGB Format: The Champion of True Color Reproduction

RGB is the standard full-color format. Each pixel contains complete R (red), G (green), and B (blue) channel data with no interpolation required, delivering the most authentic color reproduction.

RGB 24: 24 bits per pixel (8 bits per channel), offering extensive and precise color representation.

Core Advantages:

Ultra-high color accuracy and rich detail, ideal for precise color analysis.

Limitations:

Largest data volume (3× that of Mono 8), consuming significant storage/bandwidth, reducing frame rate, and increasing algorithm processing pressure.

Applications:

High-precision color tasks such as textile color difference detection, cosmetic color grading, and print color calibration.

Example: High-end fabric inspection requires RGB 24 to identify subtle color differences and prevent defective products from passing.

4) YUV Format: Efficient Choice for Video Processing

YUV is optimized for video transmission and processing, separating luminance (Y) and chrominance (U/V).

Human eyes are far more sensitive to brightness than color, so chrominance sampling can be reduced to compress data without obvious visual quality loss.

Common subsampling formats:

YUV 444 ≈ RGB 24 (full chrominance)
YUV 422 ≈ 2/3 of RGB 24
YUV 420 ≈ 1/2 of RGB 24

Core Advantages:

Smaller data than RGB with near-RGB color accuracy; luminance-chrominance separation speeds up image processing (edge detection, tracking).

Applications:

Dynamic video analysis such as assembly line workpiece tracking, moving object defect detection, and industrial monitoring.

Example: Automotive component assembly tracking uses YUV 422 for smooth video transmission and reliable color recognition.

3. Key Supplement: Pixel Format vs. Packet

"Packet" refers to compact data packing to optimize memory usage and reduce waste.

Without packet mode, pixels are stored in fixed-width memory (e.g., 16 bits). For Mono 10 (10 bits per pixel), 6 bits would be wasted in 16-bit storage.

Mono 10 Packet tightly packs 10-bit data into 12-bit memory, wasting only 2 bits and greatly improving storage/transmission efficiency.

Practical Tip:

Use Packet-enabled pixel formats in bandwidth- or storage-constrained scenarios (high-speed inspection, long-term continuous capture).

4. Four-Dimension Comparison for Quick Selection

Dimension	Ranking (from minimal to maximal / weakest to strongest)
Pixel Info	Mono < Bayer < YUV < RGB
Data Volume	Mono ≈ Bayer < YUV (420/422) < YUV 444 ≈ RGB
Frame Rate	Mono > Bayer > YUV > RGB (same camera model)
Imaging Quality	Mono (grayscale only) < Bayer < YUV 422 < RGB ≈ YUV 444

5. Practical Guide: How to Set Pixel Format

A critical prerequisite: stop image acquisition first—parameters cannot be modified during streaming.

Steps:

Open camera control software (Halcon, LabVIEW, or manufacturer’s SDK) and connect the camera.
Locate Pixel Format under Camera Parameters / Properties.
Click Stop Acquisition to interrupt the image stream.
Select the desired format (e.g., Mono 8 for defect inspection, Bayer GR8 for color sorting).
Click Start Acquisition and verify image quality.
Adjust as needed if results are unsatisfactory.

Note: Supported formats vary by camera manufacturer (e.g., Mono 12, RGB 32). Always match camera specs with inspection requirements.

Final Note: Core Selection Logic — Match Your Needs

Choose pixel formats based on actual requirements, not "advancedness":

No color needed → Mono (highest efficiency)
Basic color differentiation → Bayer (balance of efficiency and cost)
Precision color or dynamic video → RGB / YUV (choose subsampling based on data load)
