The semiconductor industry is a high-precision, high-tech industry, where the precision and stability of defect detection directly determine the quality and yield of semiconductor products. From wafer manufacturing, chip packaging to final testing, every link requires strict defect detection — tiny defects such as scratches, spots and pinholes on the wafer surface, and welding defects in chip packaging, if not detected in time, will lead to the failure of semiconductor products, resulting in huge economic losses. Industrial cameras, as the core component of semiconductor defect detection systems, their performance directly affects the detection accuracy and efficiency. However, due to the high precision and complexity of semiconductor defect detection, choosing the right industrial camera is not an easy task. As a professional provider of high-precision industrial camera solutions, MindVision summarizes 5 key factors for choosing industrial cameras for semiconductor defect detection, combined with its own high-precision industrial camera products, to help you build a reliable semiconductor defect detection system.
Factor 1: Imaging Precision (Resolution & Pixel Size) — The Foundation of Defect Detection

Semiconductor defects are often extremely tiny (even less than 0.1mm), such as micro-scratches on wafers and pinholes in chip packaging, which require industrial cameras to have extremely high imaging precision to capture these subtle defects. The imaging precision of the camera is mainly determined by resolution and pixel size: the higher the resolution, the more detailed the image; the smaller the pixel size, the stronger the ability to capture tiny targets. For semiconductor defect detection, it is recommended to choose industrial cameras with resolution not less than 5 million pixels and pixel size not larger than 3.2μm. MindVision’s MV-PX6500GC/GM series high-speed area scan cameras are specially optimized for semiconductor defect detection: they have 65 million effective pixels and 3.2μm pixel size, which can accurately capture tiny defects such as wafer surface scratches and chip welding defects; they support global exposure technology, which eliminates motion blur during high-speed shooting and ensures the clarity and stability of defect images.
Factor 2: Bit Depth — The Key to Distinguishing Subtle Defects

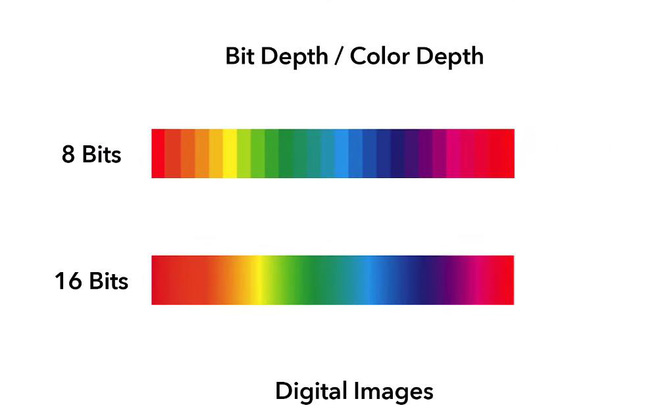

Semiconductor products (such as wafers, chips) often have subtle differences in surface brightness and color, which are closely related to defects (such as oxide layers on wafer surfaces, uneven welding). The bit depth of the industrial camera determines its ability to capture these subtle brightness differences: the higher the bit depth, the more levels of gray the camera can present, and the stronger the ability to distinguish subtle defects. Ordinary 8bit cameras can only present 256 levels of gray, which is easy to miss subtle defects; 12bit or 16bit cameras can present 4096 or 65536 levels of gray, which can clearly capture the subtle brightness differences on the surface of semiconductor products. MindVision’s MV-SUA501GC/GM series industrial cameras with 12bit depth are very suitable for semiconductor defect detection: they can capture 0.024% of the brightness difference on the surface of semiconductor products, and clearly distinguish subtle defects such as oxide layers and tiny scratches; they support 12bit raw data output, retaining the most original imaging details and avoiding defect omission caused by data compression.
Factor 3: Frame Rate — Adapt to High-Speed Semiconductor Production Lines
The semiconductor production line is highly automated and high-speed, and the defect detection system needs to complete the detection of a large number of semiconductor products in a short time, which requires industrial cameras to have a high frame rate to ensure real-time detection. The frame rate of the camera is related to resolution: the higher the resolution, the lower the frame rate under the same interface. For semiconductor defect detection, it is necessary to balance resolution and frame rate according to the speed of the production line. For example, in the high-speed detection of chip packaging defects, it is recommended to choose industrial cameras with a frame rate of not less than 30fps under 5 million pixels. MindVision’s GigE and USB3.0 series industrial cameras can meet the high-speed detection needs of semiconductor production lines: the USB3.0 series (such as MV-SUA501GC/GM) has a maximum frame rate of 40.5fps under 5 million pixels; the GigE series (such as MV-PX6500GC/GM) supports CXP12 interface, with a transmission bandwidth of up to 4850Mbyte/s, ensuring high-speed image transmission and meeting the high-speed detection needs of large-size wafer detection.
Factor 4: Anti-Interference Ability — Adapt to the Complex Industrial Environment of Semiconductor Production
The semiconductor production workshop has complex environmental factors (such as electromagnetic interference, temperature changes, dust), which will affect the stable operation of industrial cameras and the quality of image transmission. Therefore, when choosing industrial cameras for semiconductor defect detection, it is necessary to pay attention to their anti-interference ability. Industrial cameras with good anti-interference ability can ensure stable imaging and data transmission in complex environments, reducing the probability of detection errors and equipment failures. MindVision’s industrial cameras are strictly tested for anti-interference: they adopt high-quality shielding materials to effectively resist electromagnetic interference in the production workshop; they have good temperature adaptability (operating temperature 0~50℃), which can adapt to the temperature changes in the semiconductor production workshop; the sealed design of the camera body can prevent dust from entering, ensuring long-term stable operation.
Factor 5: Compatibility & Secondary Development — Facilitate System Integration
The semiconductor defect detection system is a complex integrated system, which requires industrial cameras to be compatible with mainstream machine vision software (such as Halcon, VisionPro, Labview) and industrial control systems, so as to realize seamless integration of the entire detection system. In addition, different semiconductor defect detection scenarios have personalized needs, which require industrial cameras to support secondary development, so that enterprises can customize detection functions according to their own needs. MindVision’s industrial cameras have excellent compatibility and secondary development capabilities: they are fully compatible with Windows, Linux and other operating systems, and support Vision and GenICam protocols, which can be seamlessly connected with mainstream machine vision software; the self-developed SDK supports multiple programming languages (C/C++/Python, etc.), which is easy to secondary develop and can meet the personalized detection needs of different semiconductor production scenarios.
In addition to the above 5 key factors, when choosing industrial cameras for semiconductor defect detection, enterprises also need to consider the brand’s R&D strength, after-sales service and product certification. MindVision, as a national high-tech enterprise, has nearly 300 R&D personnel, focusing on the R&D and innovation of high-precision industrial cameras; its products have passed CE, RoHS and other authoritative certifications, complying with global industrial standards; it provides 24/7 online technical support and perfect after-sales service, ensuring the stable operation of the detection system.
Conclusion: Choosing the right industrial camera is the key to improving the accuracy and efficiency of semiconductor defect detection. By focusing on the 5 key factors of imaging precision, bit depth, frame rate, anti-interference ability, compatibility and secondary development, enterprises can choose the most suitable industrial camera for their own semiconductor defect detection scenarios. MindVision’s high-precision industrial camera series (such as MV-PX6500GC/GM, MV-SUA501GC/GM) fully meet the above requirements, and can provide customized solutions according to the specific needs of semiconductor enterprises, helping enterprises improve product yield, reduce economic losses and enhance core competitiveness in the semiconductor industry.
