Industrial Cameras: The “Eyes” of Machine Vision Systems

With the continuous development of downstream sectors in the optoelectronics industry, the application value of optoelectronic technologies has attracted increasing attention. Optoelectronics Magazine focuses on optoelectronic applications across nine major fields, including information and communication technologies, information processing and storage, consumer electronics, advanced manufacturing, semiconductor processing, energy, sensing and measurement, lighting and display, and medical applications. For further technical insights and application-oriented content, please stay tuned.

Machine vision is an interdisciplinary research field integrating artificial intelligence, neurobiology, psychophysics, computer science, image processing, and pattern recognition. Its fundamental objective is to simulate human visual perception using computational systems.

Machine vision systems acquire images of real-world objects, extract relevant information, perform computational analysis, and interpret the results to support automated inspection, measurement, and control tasks in industrial environments.

Definition of Industrial Cameras

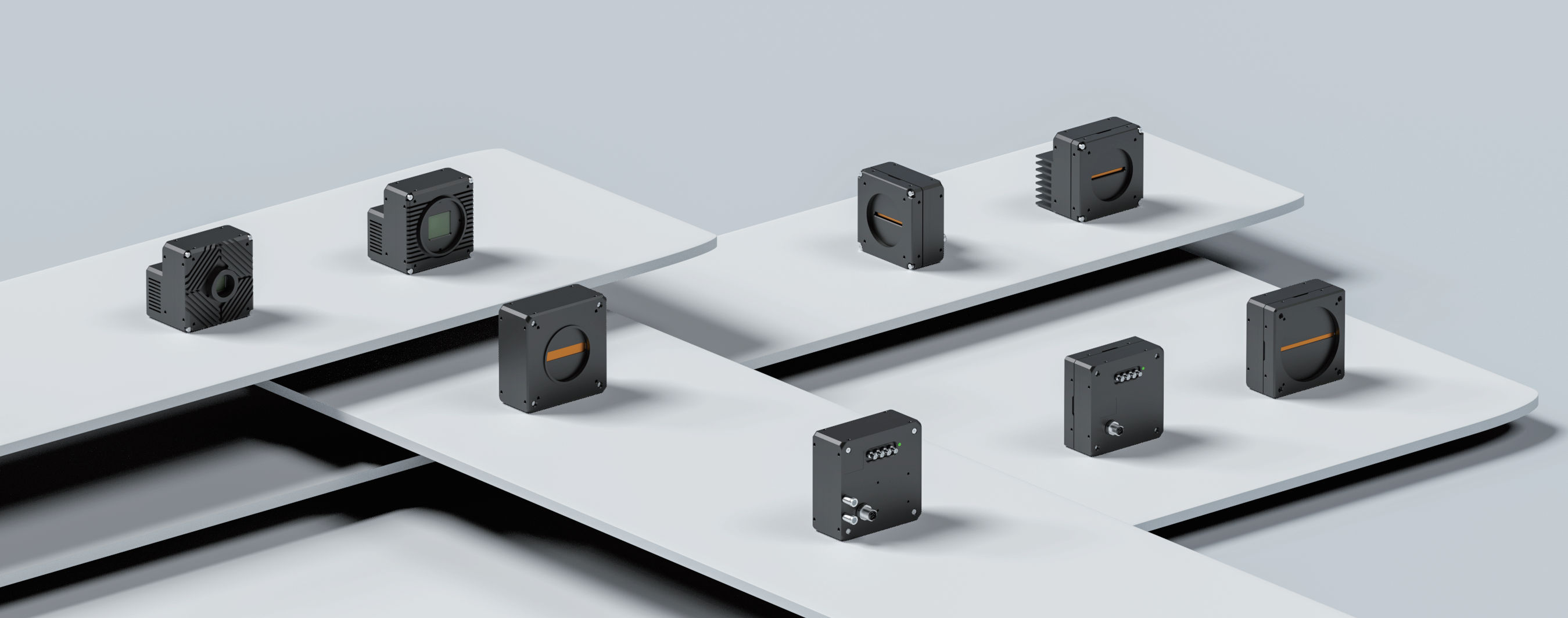

An industrial camera is a core component of a machine vision system. Its primary function is to convert optical signals into ordered electrical signals, effectively serving as the “eyes” of the machine vision system. Compared with consumer-grade cameras, industrial cameras exhibit superior image stability, higher data transmission reliability, and stronger resistance to electromagnetic interference.

Most industrial cameras currently available on the market are based on either CCD (Charge-Coupled Device) or CMOS (Complementary Metal-Oxide Semiconductor) image sensors.

CCD Image Sensors

CCD image sensors are fabricated using high-sensitivity semiconductor materials that convert incident light into electrical charges. These charges are subsequently transferred and converted into digital signals via analog-to-digital converters. The digital data may then be compressed and stored in onboard memory or transmitted directly to a computer system for further image processing, analysis, and enhancement.

CMOS Image Sensors

CMOS image sensors, like CCD sensors, are semiconductor devices capable of recording variations in incident light. CMOS sensors are manufactured using processes similar to those employed in standard integrated circuit fabrication. Each pixel integrates both photodetection and signal processing circuitry, enabling the conversion of optical signals into electrical signals that are subsequently interpreted as image data by processing units.

Functions and Applications of Industrial Cameras

Industrial cameras are typically deployed on automated production lines to replace human visual inspection. They capture digital images of target objects and transmit image data to dedicated image processing systems. These systems extract feature information through computational algorithms and generate decision outputs that control downstream equipment and operational processes.

With the rapid growth of the domestic machine vision industry, industrial cameras have experienced significant technological advancement. Digital industrial cameras are not constrained by object size and, depending on lens configuration, can be applied to both macroscopic inspection and microscopic imaging.

The principal application areas of industrial cameras include:

1.Product development and validation
Industrial cameras are widely used in material research and product development, such as analyzing crack propagation and internal structural changes in metals and polymer materials under mechanical stress, as well as performing online inspection of electronic products.

2.Packaging and labeling industries
During high-speed printing processes, industrial cameras enable real-time detection of subtle defects, including scratches, dust contamination, missing prints, ink streaks, and wrinkles. Early defect detection reduces material waste, improves production yield, and enhances customer satisfaction.

3.Other application domains
Industrial cameras are extensively used in machine vision research, scientific experimentation, defense technology, aerospace, and intelligent transportation systems, including speed enforcement, red-light violation detection, highway monitoring, and electronic toll collection systems.

Classification of Industrial Cameras

Before selecting an industrial camera, it is essential to determine the appropriate camera type based on application requirements. Industrial cameras can be classified according to various technical criteria:

1.Sensor type: CCD cameras and CMOS cameras

2.Sensor architecture: Line-scan cameras and area-scan cameras

3.Scanning method: Interlaced-scan cameras and progressive-scan cameras

4.Resolution: Standard-resolution cameras and high-resolution cameras

5.Signal output format: Analog cameras and digital cameras

6.Color capability: Monochrome (grayscale) cameras and color cameras

7.Frame rate: Standard-speed cameras and high-speed cameras

8.Spectral response: Visible-light cameras, infrared cameras, ultraviolet cameras, and others

Causes of Frame Loss in Industrial Cameras

Selecting an appropriate industrial camera is a critical step in machine vision system design. Camera selection directly influences image resolution, image quality, and overall system performance. Frame loss may occur due to suboptimal driver design or hardware limitations, typically caused by data transmission bottlenecks.

When image data cannot be processed or transmitted in real time, newly acquired frames may overwrite previous frames or be discarded. To mitigate frame loss, system designers must carefully optimize each stage of the data pipeline, including camera hardware, transmission interfaces, drivers, and image processing software.

Smart Cameras versus Industrial Cameras

A smart camera is not merely an imaging device but a highly integrated, compact machine vision system. It incorporates image acquisition, processing, and communication functionalities within a single unit, offering modularity, high reliability, and ease of deployment.

By leveraging advanced DSPs, FPGAs, and large-capacity memory, smart cameras have achieved increasing levels of intelligence and are capable of addressing a wide range of machine vision tasks.

Although smart cameras and industrial cameras share similar application domains, their usage paradigms differ significantly. Industrial cameras typically require external controllers and customized software development, enabling them to handle complex and highly specialized inspection tasks. In contrast, smart cameras feature built-in configuration tools, can operate independently without external controllers, and are generally easier to deploy and maintain.
