Industrial Camera Lens Filters: System Selection Guide and Analysis of Typical Applications

In industrial vision inspection systems, clear and stable imaging is the foundation for accurate measurement, positioning, identification, and defect analysis. As a critical optical control component, industrial lens filters actively manage the light entering the lens, making them a core solution for addressing imaging challenges and improving overall system robustness.

I. Core Functions and Classification of Filters

Based on the physical dimension of light they control, industrial filters can be broadly classified into two categories:

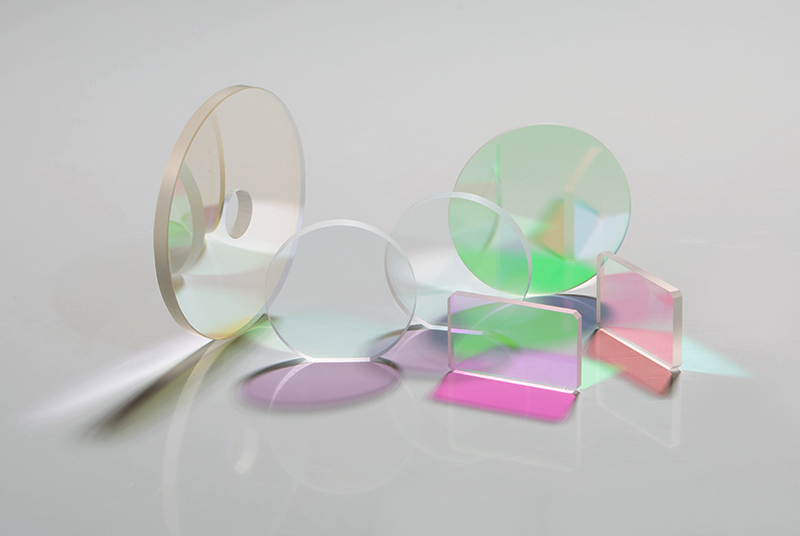

1. Spectral Selection Filters (Wavelength-Based)

Principle:
By depositing precision optical coatings on a substrate, these filters utilize optical interference effects to allow specific wavelength bands to pass efficiently, while reflecting or absorbing other wavelengths.

Main Types:
Bandpass filters, short-pass / long-pass filters, neutral density (ND) filters.

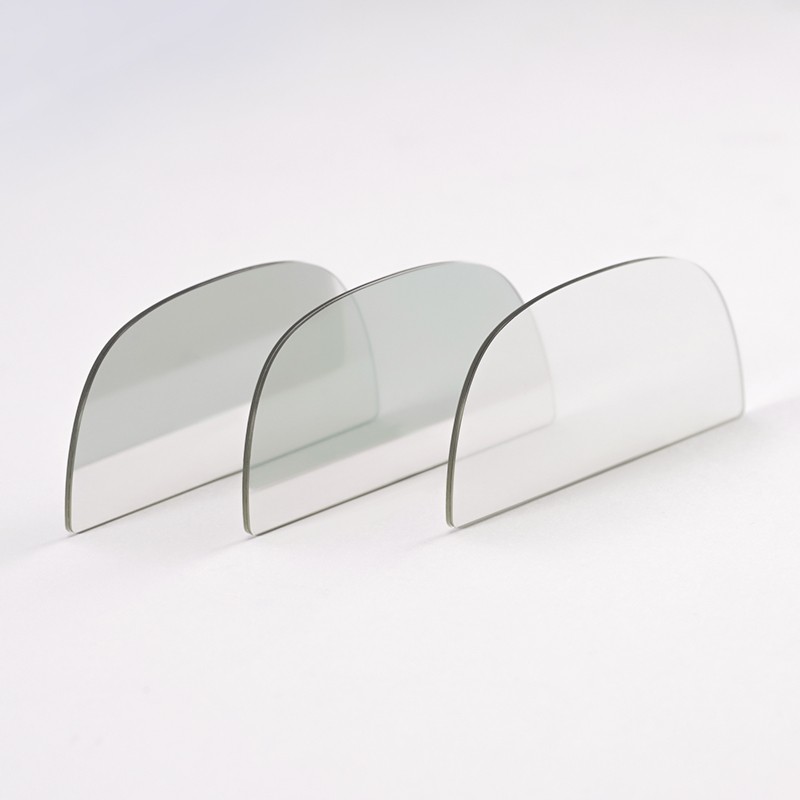

2. Polarization Selection Filters (Polarization-Based)

Principle:
Their internal structure allows only light whose electric field vibration direction aligns with the filter’s polarization axis to pass, thereby eliminating specific polarized light components such as glare.

Main Types:
Linear polarizers, circular polarizers.

II. In-Depth Analysis of Industrial Application Scenarios

The following typical industrial cases illustrate how filters are applied in practice.

Application 1: High-Speed Conveyor Barcode Reading

Core Challenge:
Ambient light interference (especially flicker from mains-powered fluorescent lamps) causes image brightness fluctuations and banding, reducing reading accuracy.

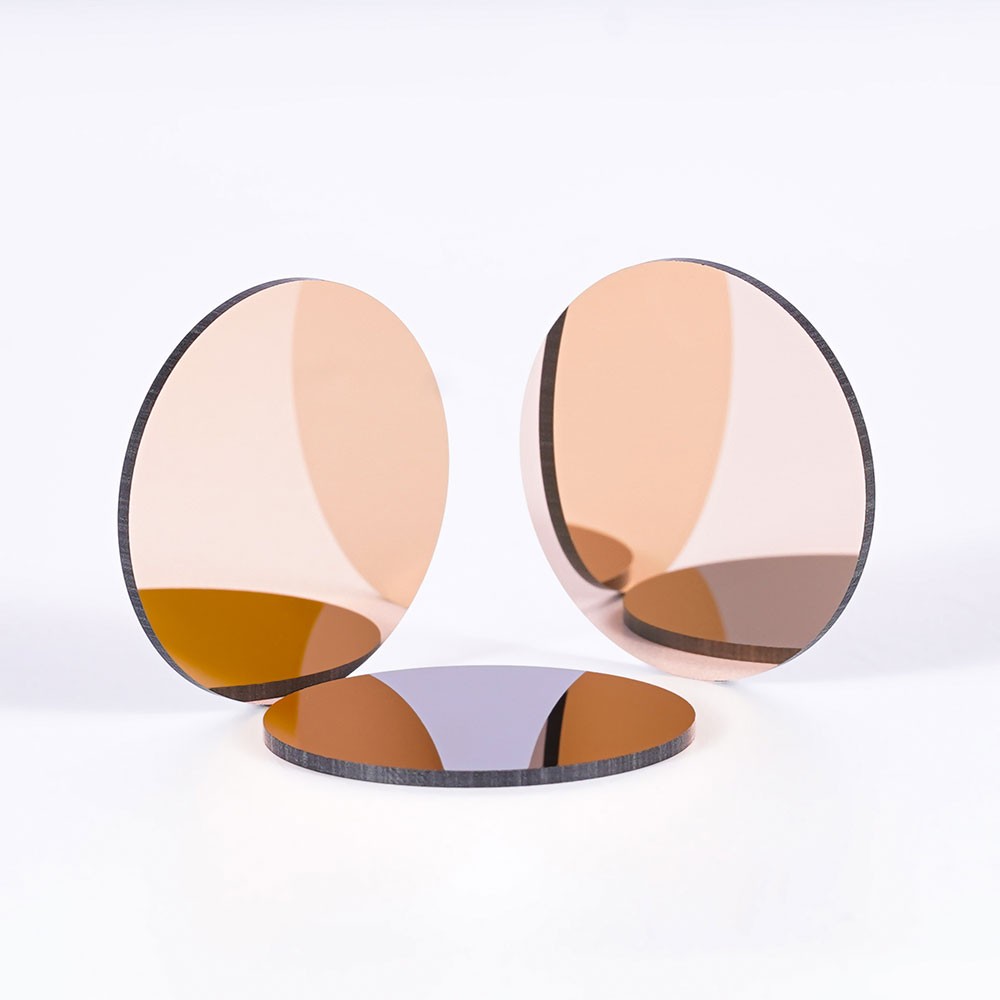

Solution: Narrowband bandpass filter

Technical Details:

Use an 850 nm infrared LED as the active illumination source.

Mount a narrowband bandpass filter with a center wavelength of 850 nm and a bandwidth of 10 nm or 20 nm in front of the lens.

This combination forms an “optical lock” that allows only the LED-emitted infrared light to reach the camera, effectively blocking most ambient visible light. As a result, high-contrast, flicker-free, and stable images are obtained under all lighting conditions.

Application 2: Detection of Micro Scratches and Defects on Metal Surfaces

Core Challenge:Strong specular reflections from smooth metal surfaces create highlights that obscure scratches, pits, and other defects.

Solution: Linear polarizing filter

Technical Details:

Install one linear polarizer in front of the light source and another in front of the lens, forming a cross-polarization setup.

Rotate the lens-side polarizer so that its polarization direction is perpendicular to that of the source-side polarizer.

Specularly reflected light is blocked due to polarization mismatch, while diffusely reflected light from scratches partially passes through, making defects stand out clearly against a dark background.

Key Parameter:
Extinction ratio of the polarizer, typically ≥1000:1, to ensure sufficient suppression of glare.

Application 3: Detection of Liquid Contaminants and Bottle Defects in Transparent Packaging

Core Challenge:
Complex reflections and refractions from glass bottles interfere with observation of internal foreign particles, bubbles, and surface scratches.

Solution: Polarizing filters or infrared long-pass filters

Technical Details:

Scenario A (surface scratches / label inspection): Use polarizing filters to eliminate surface reflections, following the same principle as Application 2.

Scenario B (internal liquid contaminant detection): Use a long-pass filter (e.g., cutoff wavelength 1050 nm) together with an infrared light source and infrared camera.

Many liquids and glass are transparent in visible light but scatter specific infrared wavelengths. Contaminant particles scatter infrared light and appear as bright spots against a dark background, achieving extremely high contrast.

Application 4: Automatic Plastic Material Sorting in the Recycling Industry

Core Challenge:
Different plastics (e.g., PET, PVC) have similar appearance and cannot be reliably distinguished by color or shape alone.

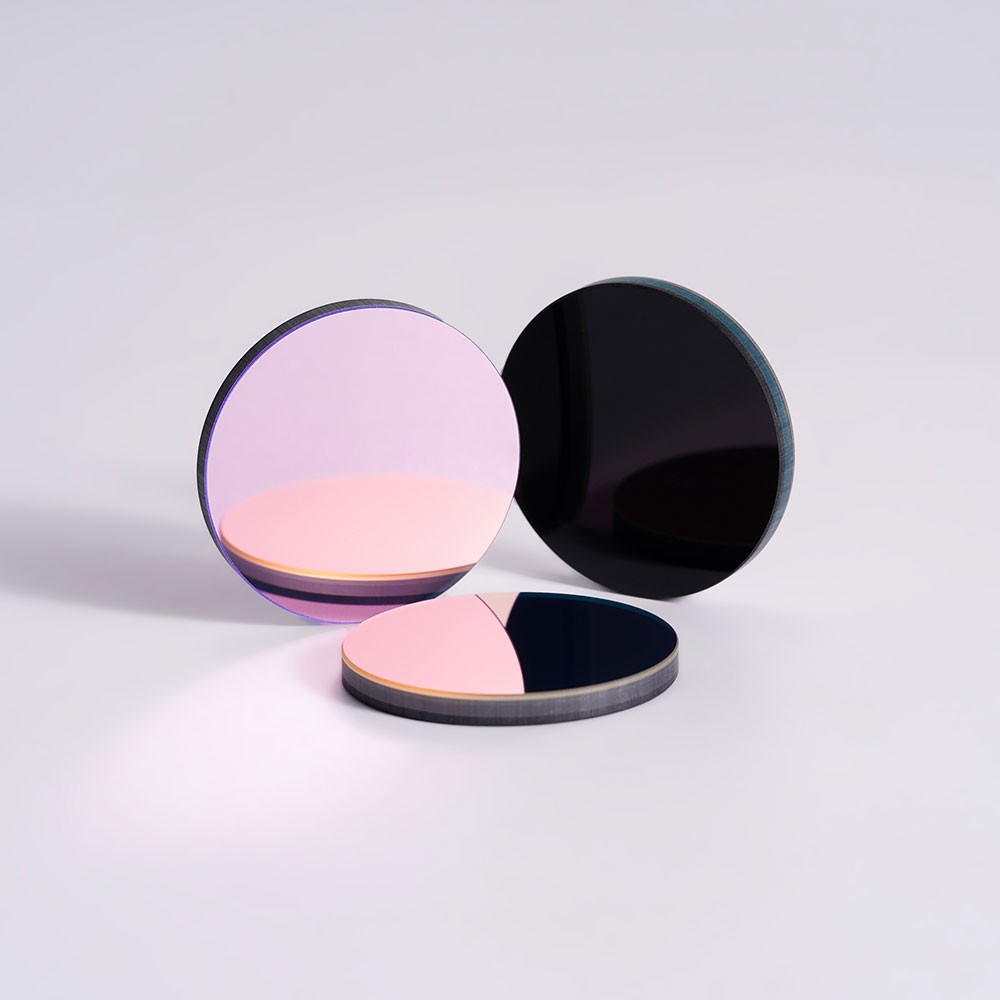

Solution: Infrared bandpass filters

Technical Details:

Use a near-infrared (NIR) camera with infrared illumination.

Sequentially image through different infrared bandpass filters (e.g., 1200 nm, 1300 nm, 1450 nm).

Different plastic materials exhibit unique reflectance characteristics at these spectral bands. By calculating grayscale intensity ratios between images at different wavelengths, accurate material classification models can be established.

Application 5: Mura and Bright Pixel Detection in LCD/OLED Displays

Core Challenge:Strong reflections from the glass cover obscure subtle luminance non-uniformities (Mura) or defective pixels in the underlying emissive layer.

Solution: Circular polarizing filter

Technical Details:
Circular polarizers effectively suppress surface specular reflections. Compared with linear polarizers, they avoid polarization failure caused by rotation of the front element in autofocus lenses, ensuring stable and reliable inspection performance.

Application 6: Online Monitoring of High-Temperature Objects (e.g., Weld Seams, Castings)

Core Challenge:High-temperature objects emit strong infrared radiation, causing image overexposure and loss of surface detail.

Solution: Narrowband bandpass filters or neutral density filters

Technical Details:

Option 1 (active imaging): When using a laser or LED at a specific wavelength, select a matching narrowband bandpass filter to receive only reflected illumination light while filtering out thermal radiation from the object itself.

Option 2 (passive attenuation): If no external illumination is used, apply a neutral density filter (e.g., OD 1.0 or higher) to uniformly reduce light intensity across all wavelengths, preventing sensor saturation and revealing surface texture.

III. Summary of the Filter Selection Process

For a specific industrial vision project, filter selection should follow a systematic approach:

1.Problem Diagnosis: Identify the fundamental imaging challenge—ambient light interference, surface glare, low contrast, or material discrimination.

2.Filter Type Selection:

Ambient light suppression / spectral feature extraction → spectral filters (bandpass / cutoff).

Glare and reflection suppression → polarization filters.

Overexposure prevention → neutral density filters.

3.Parameter Specification:

Bandpass filters: Center wavelength (matching the light source), bandwidth (selectivity), blocking depth (interference suppression).

Polarizers: Extinction ratio and type (linear or circular).

4.Mechanical Compatibility: Ensure filter thread size (e.g., M42×0.75) is fully compatible with the lens front interface.

Through this systematic overview and case-based analysis, it is clear that industrial lens filters are indispensable tools in a machine vision engineer’s toolkit. Precise selection and application fundamentally enhance image quality, enabling vision systems to operate reliably and efficiently in demanding industrial environments.
