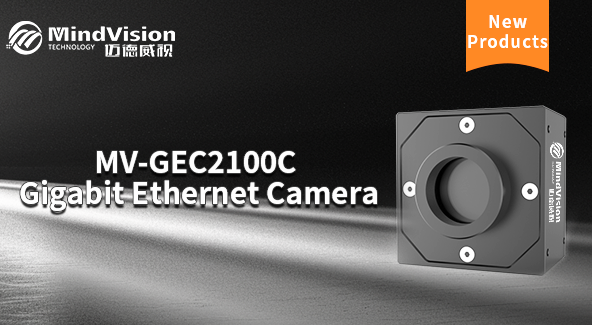

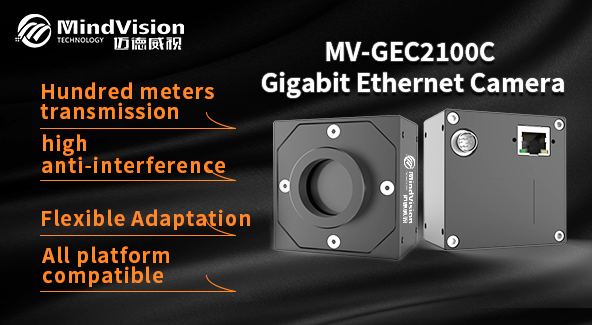

New Products | Bigger Field of View, Finer Sections! MindVision Gigabit Network Face Array Camera MV-GEC2100C Newly Launched!
MindVision has newly launched MV-GEC2100C Gigabit Network Face Array Camera.MV-GEC2100C has new upgrades in image detail reproduction ability, color saturation, low light performance, etc., based on the continuation of the MV-GEC2000C's advantages of long transmission distance, strong anti-jamming, and flexible adapting.
Product Features

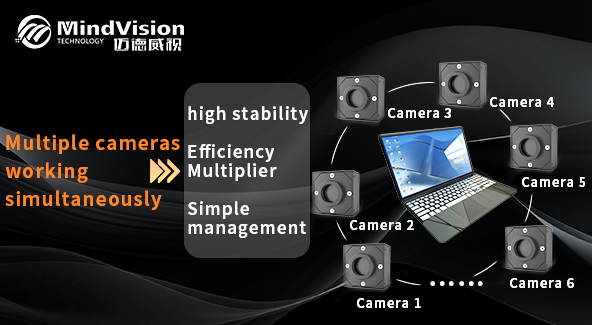

Multiple cameras, working simultaneously
Support a computer multiple cameras work at the same time, the number of unlimited, can be any group network, long time work without losing frames.

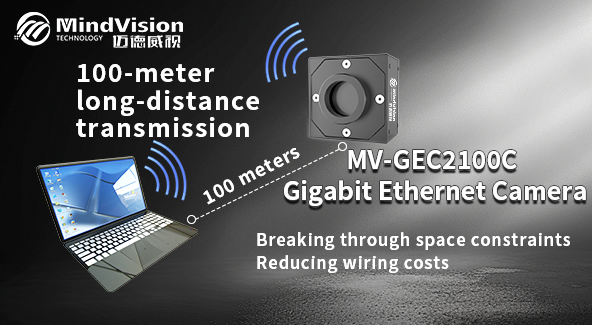

100 meters long distance stable transmission
Extra-long transmission distance of 100 meters breaks through the space limitation, has stronger anti-interference and reduces wiring cost.
Minimal integration and full platform compatibility
Adopting intelligent SDK design, realizing USB camera-like plug-and-play experience without complex configuration. Support Windows/Linux/MacOS three mainstream systems, seamlessly connect to different development environments.
Anti-interference design
Supports external triggering and flash synchronization, up to 7 GPIOs, all opto-isolated, adapted to strong electromagnetic environment.
Upgraded performance
MV-GEC2100C vs MV-GEC2000C

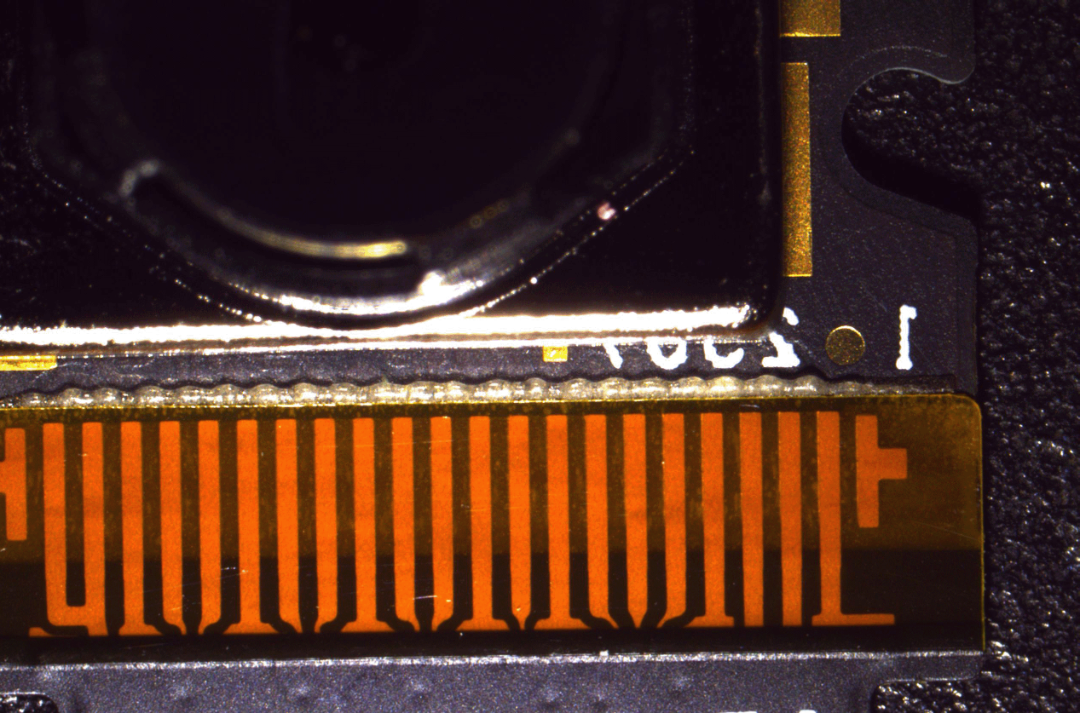

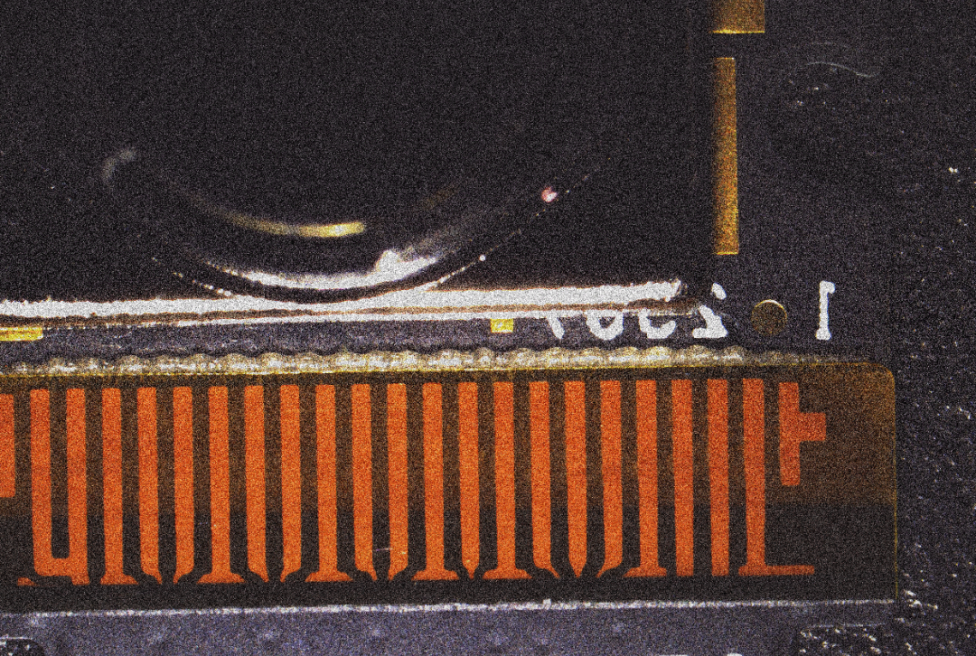

Sharper image details
MV-GEC2100C | MV-GEC2000C | |
optical size | 4/3”CMOS | 1”CMOS |

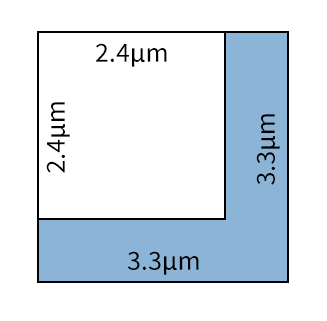

Image size | 3.3μm*3.3μm | 2.4μm*2.4μm |
The MV-GEC2100C has an image element size of 3.3μm*3.3μm. Compared to the MV-GEC2000C, the light intake has been increased by 89%, and the number of photons captured per unit time has been doubled, which is paired with a larger optical size to jointly improve light sensitivity in low light, reduce noise, and retain more details in highlights and shadows, realizing the leap in physical-level light sensitivity.

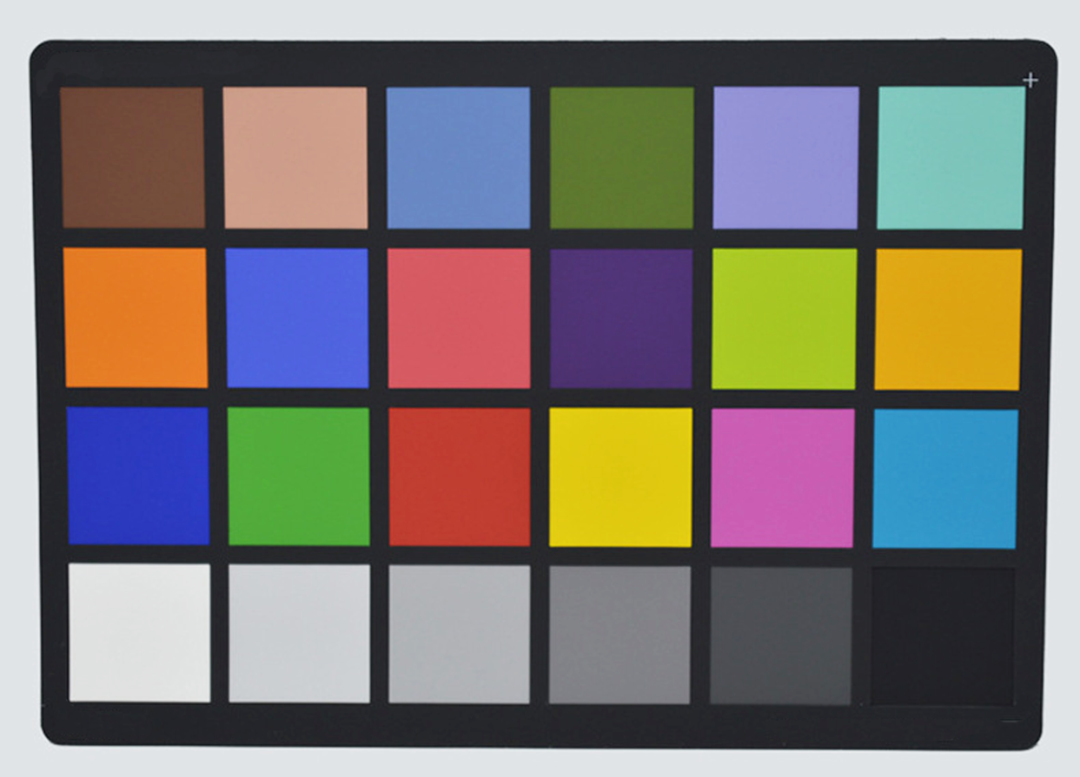

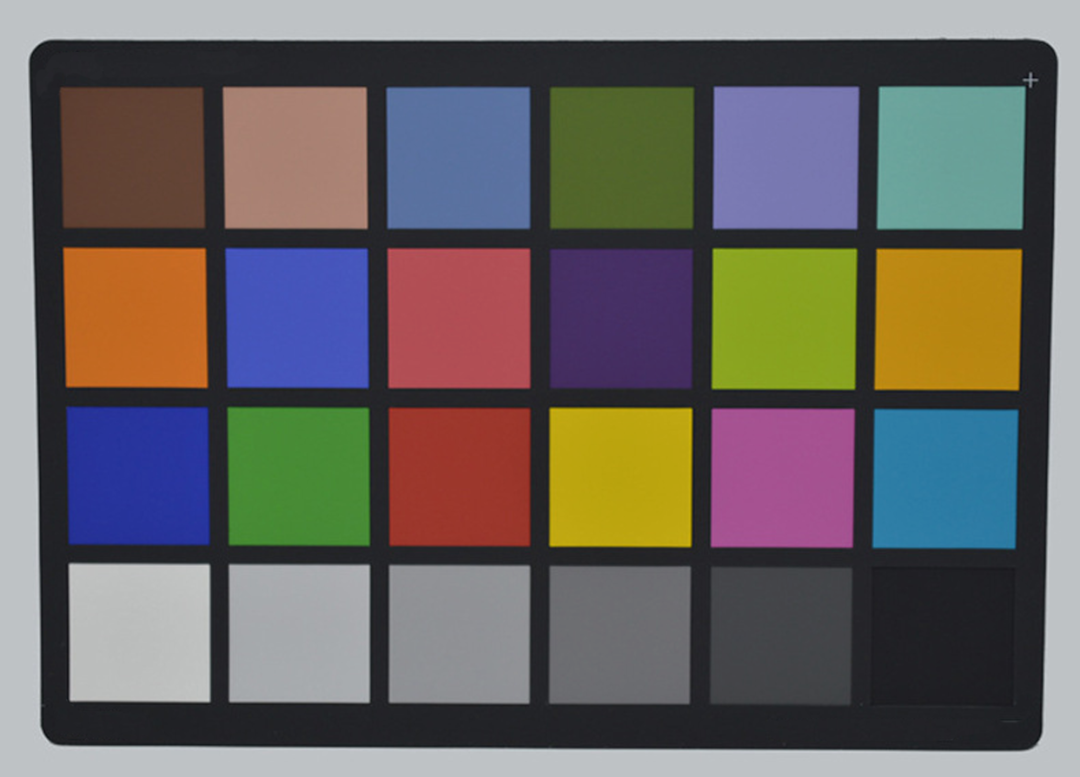

More accurate color reproduction
The MV-GEC2100C's upgrades in sensor area and pixel size bring a high degree of improvement in total light intake, resulting in cleaner color channel signals and more complete single-pixel color sampling.
Increased range of industrial-grade scenario adaptation
MV-GEC2100C | MV-GEC2000C | |
exposure time | 0.044-23278.3ms | 0.054-11796ms |
The expansion of the exposure time range of the MV-GEC2100C camera optimizes the two major performances of high-speed shooting and low-light imaging. Shorter exposure time effectively reduces motion blur; longer exposure time dramatically improves imaging quality in low-light environments, making the camera more adaptable in industrial scenarios such as intelligent manufacturing, automated inspection, and scientific research experiments.

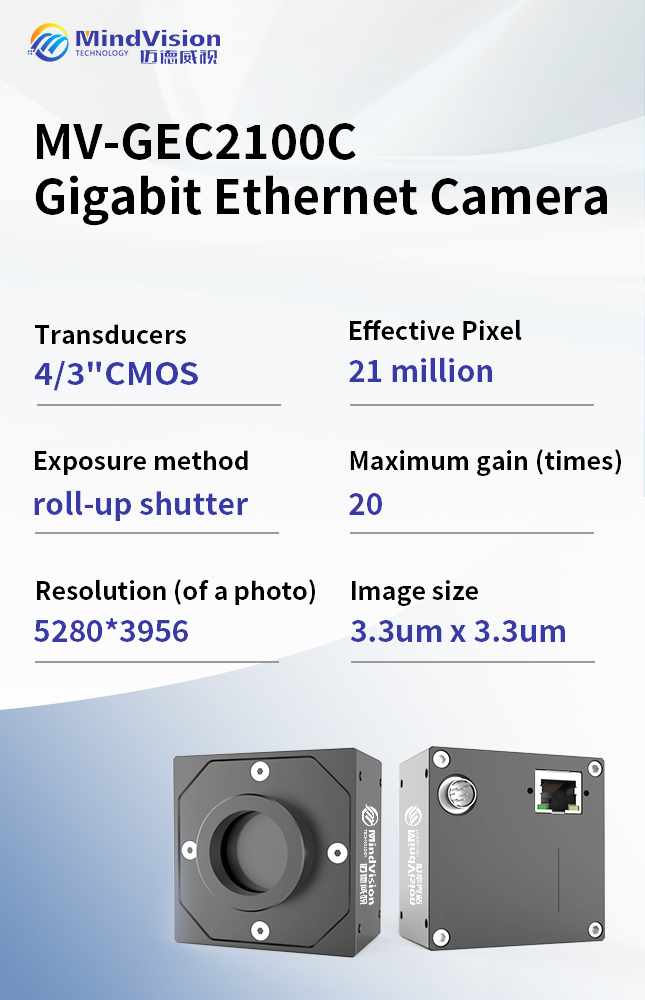

Product Parameters
models | MV-GEC2100C |
optical size | 4/3”CMOS |
Image size | 3.3μm*3.3μm |
Camera Type | colorful |
Resolution @ Frame Rate | 5280*3956 Max@5.75FPS |
effective pixel | 21 million |
Maximum gain (times) | 20 |
data interface | Gigabit Ethernet port |
exposure method | roll-up shutter |
(level of) sensitivity | 1880LSB |
Areas of application
screen detection

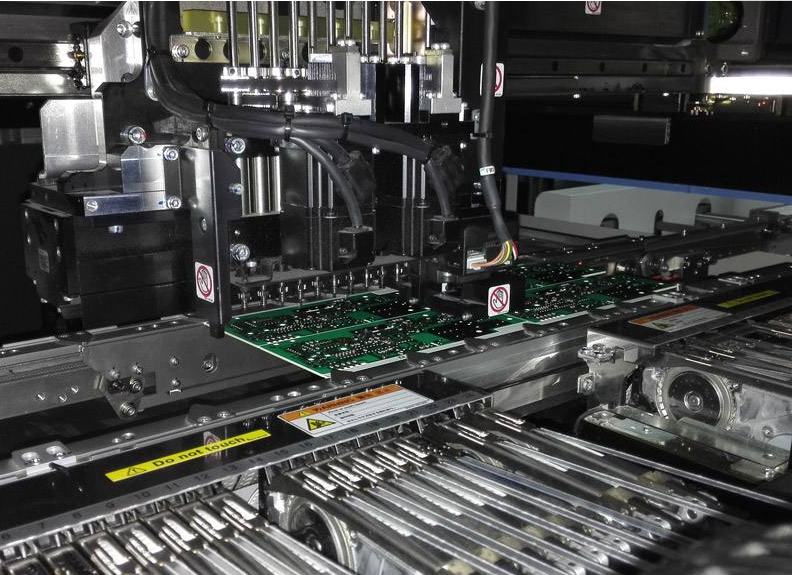

PCB Inspection
intelligent transportation
biomedical
