Factory Automation Needs: Start with the Decision

First, a vision station should begin with the action it must support. The system may need to confirm part presence, find an edge, read a code, detect a scratch, guide a robot, or send a reject signal. Therefore, the camera discussion should start from the production decision, not from a model list.

Meanwhile, every station works inside a time window. The part arrives, the trigger fires, the light turns on, the image is captured, the software checks it, and the controller receives a result. As a result, stable timing can matter as much as image sharpness.

In real production, the image rarely stays perfect all day. Parts vibrate, fixtures wear, conveyors drift, reflective surfaces change angle, and lighting becomes less consistent after long operation. Because of that, an industrial camera for factory automation should match the real line environment.

For example, an assembly cell may need an area scan camera. A battery foil line may need a line scan camera. A compact machine may benefit from a smart camera. In addition, transparent coating, semiconductor surface, and material contrast tasks may need UV or SWIR imaging after sample testing.



View Area Scan Product Page

Camera Type Map for Factory Automation Projects

First, area scan cameras fit tasks where one complete image can cover the inspection area. They work well when parts stop, pause, index, or pass through a known field of view. Therefore, they are common in assembly checks, code reading, part alignment, and surface inspection.

Next, line scan cameras fit moving surfaces and long materials. Instead of capturing a full frame at once, they build the image line by line as the material moves. Because of this, they are useful for foil, paper, fabric, film, printed sheets, and strip material.

At the same time, smart cameras help when compact local decision-making matters. The camera and processing unit stay close together, so simple inspection logic can happen near the sensor. As a result, a small station may need less external hardware.

In addition, UV and SWIR cameras support special contrast problems. Some coatings, transparent materials, semiconductor surfaces, or material differences are difficult to see under normal visible light. However, the correct wavelength can sometimes make the feature stand out.

Finally, board cameras and modules support embedded equipment. When a machine has limited space, a custom housing, or a special lens position, the camera becomes part of the equipment design. Therefore, mechanical fit should be considered early.

Area, Line, Smart, SWIR, and UV Camera Roles

Area scan camera: complete image inspection

First, an area scan camera captures a full frame in one exposure. This makes it practical for discrete parts, indexed stations, robot cells, and packaging checkpoints. For example, it can inspect screws, connectors, printed marks, edges, holes, labels, or surface conditions.

Moreover, the image is easy to understand during setup. The object appears in one frame, and the software can inspect regions of interest. Therefore, debugging and maintenance often feel more direct than with more specialized imaging structures.

However, resolution should not be the first decision. The smallest useful feature, lens quality, working distance, field of view, light angle, and motion blur all affect the final image. In other words, a high-pixel sensor still needs a stable optical setup.

Line scan camera: long and moving surfaces

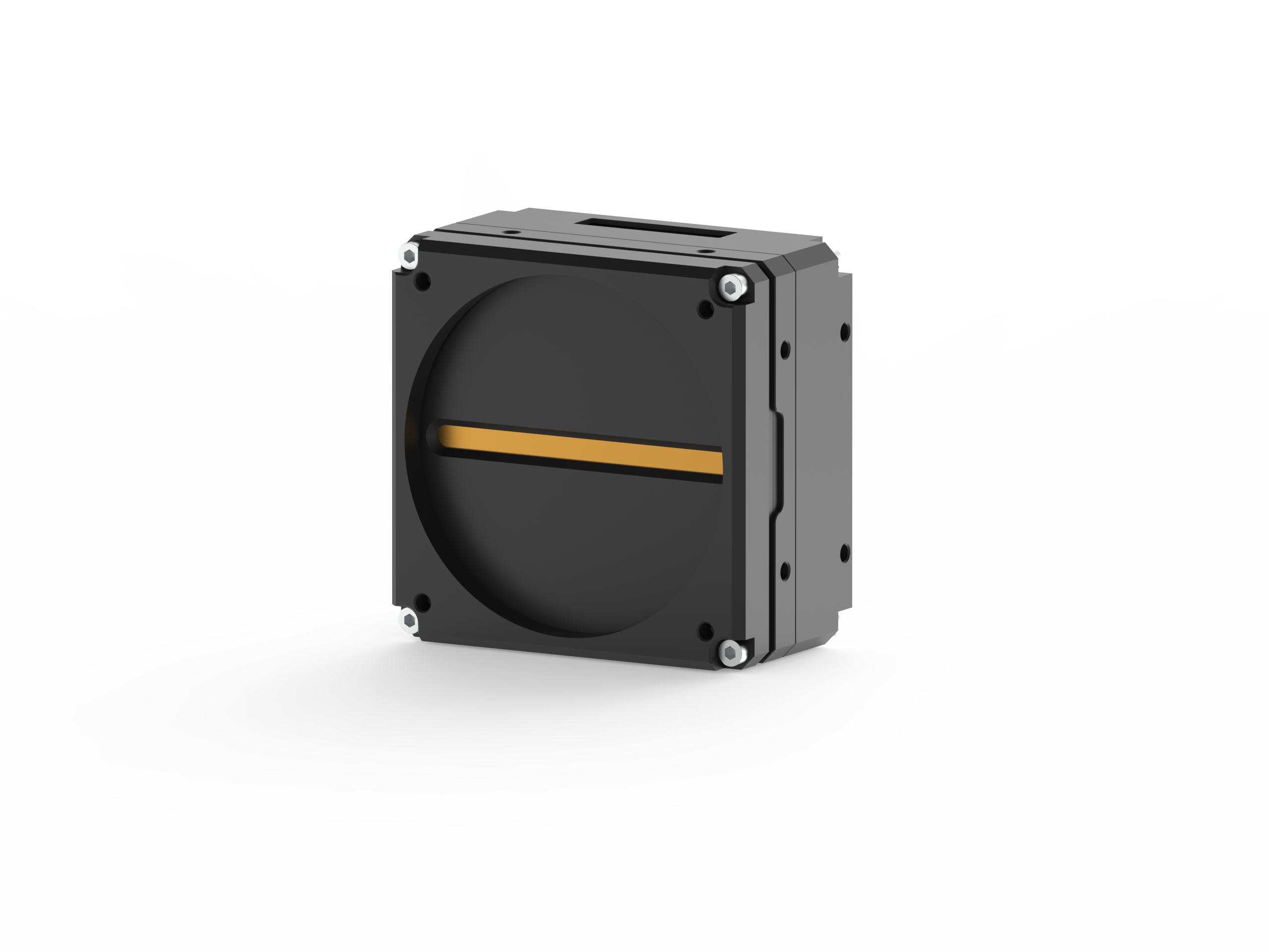

Next, a line scan camera works best when material moves continuously. It captures one narrow line at a time and builds a complete image from motion. Therefore, it can inspect long surfaces without forcing the full object into one large frame.

For example, battery foil, plastic film, textile, paper, metal strip, glass, and printed web material can move under the camera during inspection. Meanwhile, the system may look for scratches, stains, coating gaps, edge damage, holes, wrinkles, or repeated pattern defects.

However, line scan work needs motion discipline. Encoder signal, line rate, material speed, lighting uniformity, exposure, and data transfer must work together. Therefore, a line scan project should include mechanical, optical, and control planning from the beginning.



View Line Scan Product Page

Smart camera: compact local decision-making

Also, a smart camera can make a compact inspection station cleaner. It places image capture and processing close together. Therefore, simple decisions may not require a larger external vision PC.

In many machines, this structure supports presence checks, counting, code reading, orientation checks, and simple measurement. Then the result can move to a PLC or control system. As a result, cabinet layout and wiring may become easier.

However, smart cameras should match realistic task limits. Heavy deep learning, large images, synchronized multi-camera inspection, and complex image pipelines may need stronger external processing. Therefore, processing load should confirm by project requirements.



View Smart Camera Product Page

SWIR and UV camera: special contrast problems

In some inspection tasks, the problem is not sharpness. Instead, the feature does not stand out under visible light. For example, a transparent coating, a wafer surface, or a material difference may look too similar in a normal image.

Therefore, SWIR or UV imaging may become useful when the material responds to those wavelengths. SWIR can help reveal hidden material contrast. UV can help with surface response, coating checks, fluorescence, and fine defect visibility.

Still, special imaging should always begin with sample proof. The project should compare visible light, backlight, dark-field light, coaxial light, polarization, UV, and SWIR where relevant. This keeps the decision practical and avoids unnecessary complexity.



View UV Camera Product Page

Selection Table: Match the Camera to the Task

The table below is designed for early project discussion. However, it should not replace real sample testing. Every parameter should confirm by project requirements before final model approval.

Practical Benefits in Real Production Lines

First, a suitable camera improves inspection consistency. When the image stays stable, the software can make the same decision across shifts and batches. Therefore, the production line becomes easier to control.

Meanwhile, better camera matching can reduce false rejects. Good parts are less likely to fail because of glare, blur, weak contrast, or unstable framing. As a result, the inspection station becomes more trusted.

In addition, camera choice affects line speed. Frame rate alone does not define station speed. The full cycle includes trigger delay, exposure, transfer, processing, communication, and reject action.

Furthermore, a suitable form factor improves machine design. A compact camera may fit inside a small enclosure. A smart camera may reduce cabinet hardware. A board module may fit where a standard housing cannot.

Finally, standard camera families support long-term maintenance. Related products can simplify spare planning, software templates, documentation, and training. Therefore, camera selection has value beyond the first installation.

Matching Camera, Lens, Light, Motion, and Software

First, the camera should not be selected alone. A production image is created by the whole visual chain. Therefore, lens, light, trigger, exposure, mounting, cable path, and algorithm should be reviewed together.

For example, a lens that cannot resolve a small scratch will limit a high-resolution sensor. Likewise, strong camera hardware cannot solve a glare problem if the light angle hides the defect. Because of this, optical testing should happen before final camera approval.

Meanwhile, lighting often decides whether the feature is visible. Backlight can reveal edges and holes. Dark-field lighting can highlight scratches. Dome light can soften reflection. Coaxial light can help flat reflective surfaces.

However, lighting should always be tested with real samples. A surface that looks simple in a drawing may reflect light in a difficult way. Therefore, sample sets should include normal parts, failed parts, borderline parts, and different batches.

Next, motion affects exposure. A stopped part can use a longer exposure. A fast conveyor needs short exposure and stronger light to avoid blur. As a result, timing and illumination should be tested under real or simulated line speed.

In addition, software compatibility should enter the discussion early. SDK behavior, trigger modes, image format, operating system support, PLC communication, and inspection library support can affect delivery. Therefore, software planning belongs in the selection stage.

Factory Automation Scenarios and Camera Fit

Electronics assembly inspection

First, electronics assembly often needs small-feature inspection. Connector pins, PCB marks, solder areas, component direction, screw presence, and label position may all require a clear image. Therefore, area scan cameras are often a practical starting point.

However, electronics parts can reflect light sharply. Solder points, dark boards, plastic housings, and metal terminals may need different lighting styles. As a result, lighting tests should happen before the model choice feels final.

In real use, fixture stability also matters. If the board shifts or lifts slightly, focus and position can change. Therefore, working distance, field-of-view margin, and fixture repeatability should be reviewed together.

Battery foil and web material inspection

Next, battery foil and web material inspection often need line scan imaging. The material keeps moving, and the surface may be too long for one frame. Therefore, line-by-line image acquisition fits the production shape.

Meanwhile, defects can be subtle. Scratches, coating gaps, edge damage, wrinkles, stains, holes, and texture changes may appear only under the right light angle. Because of that, illumination uniformity across the full material width becomes critical.

Also, data volume can become large. A wide material and high line speed can create heavy transfer and processing demand. Therefore, bandwidth, processor load, reject timing, and storage logic should be reviewed early.

Packaging, label, and code reading

In packaging lines, cameras often check labels, barcodes, QR codes, carton position, cap presence, print quality, and sorting status. Therefore, area scan and smart camera structures can both work, depending on speed and complexity.

For example, a compact code reading station may fit a smart camera. Meanwhile, a multi-camera packaging line may need centralized processing. As a result, architecture should follow station count, image load, and control logic.

However, packages vary in size, color, reflectivity, and label placement. Therefore, field of view, depth of field, trigger position, focus margin, and lighting coverage should leave enough room for real variation.

Robot guidance and positioning

Robot guidance depends on stable coordinates. First, the camera captures the part. Then the software locates a feature, calculates position, and sends coordinates to the robot or controller. Therefore, calibration and mechanical repeatability matter.

At the same time, part arrival is rarely perfect. A part may shift, rotate, tilt, or stop slightly away from the expected point. Therefore, the field of view should include real placement variation without losing too much detail.

Moreover, robot cells often have tight space. Guarding, grippers, conveyors, fixtures, and lighting brackets can all compete for room. Because of this, compact housings, right-angle layouts, or board modules may help the design stay clean.

Semiconductor, coating, and transparent material inspection

Some precision inspection tasks need more than visible imaging. Transparent coating, wafer surface, film defect, material difference, and subtle contamination may look too similar under white light. Therefore, UV or SWIR testing can become valuable.

However, special-spectrum imaging should start with sample proof. The material must create useful contrast under the selected wavelength. Otherwise, the project may add complexity without improving the inspection result.

In addition, safety and optics should be planned early. UV lighting may require shielding, filters, and safe installation methods. SWIR may require compatible lenses and lights. Therefore, the complete optical system should confirm by project requirements.

Practical Selection Path Before Model Confirmation

First, define the inspection result in one sentence. The sentence should include the object, feature or defect, movement, decision output, and timing target. This keeps the discussion practical.

Next, collect real samples. Good parts, failed parts, borderline parts, different batches, reflective surfaces, damaged labels, and process variations should all be included. Without these samples, a test may look successful but fail after installation.

Then, choose the first camera family by application shape. Area scan fits complete views. Line scan fits continuous surfaces. Smart cameras fit compact local decisions. UV and SWIR fit special contrast. Board modules fit embedded layouts.

After that, test lighting before fixing camera parameters. Many unstable vision stations fail because the feature has weak contrast, not because the camera is weak. Therefore, lighting comparison can prevent unnecessary hardware changes.

Finally, validate the full timing cycle. Trigger, exposure, transfer, processing, communication, and reject actuation all count. Therefore, cycle-time testing should use real or simulated production speed.
