USB2.0 cameras for machine vision

The USB2.0 industrial camera, with its reliable and stable performance, serves as the ultimate tool for assembly line inspection!Equipped with global shutter technology, it freezes fast-moving workpieces in an instant, eliminating motion blur to ensure flawless detection of PCB solder joints, part dimensions, surface defects, and more.With USB2.0 connectivity, it works instantly upon connection. Paired with trigger mode and GPIO control, it synchronizes perfectly with robotic arms and sensors, boosting automation efficiency.

—— USB2.0 Industrial Cameras ——

In today's digital age, cameras have become an essential part of our daily lives. Whether for professional photography, video conferencing, or simple snapshots, the type of camera you choose can significantly impact your experience. One popular choice for many users is the USB2.0 camera. In this article, we'll explore what USB2.0 cameras are, how they work, and why they might be the perfect choice for your needs.

—— Understanding USB2.0 Technology ——

Before diving into USB2.0 cameras, it's essential to understand the underlying technology. USB, or Universal Serial Bus, is a standard that defines cables, connectors, and communication protocols for connection, communication, and power supply between computers and devices.

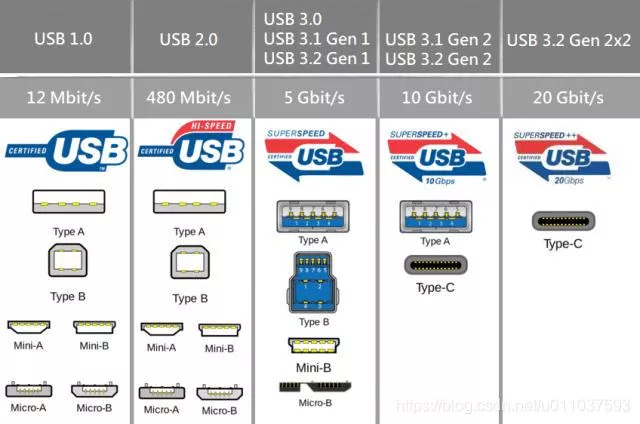

This diagram presents key information about different USB standards. It covers versions ranging from USB 1.0 to USB 3.2 Gen 2×2, clearly showing the development and iteration process of USB standards. Corresponding to each version, transmission speeds are marked, such as 12 Mbit/s for USB 1.0 and 480 Mbit/s for USB 2.0, reflecting the enhancement of data - transmission capabilities. Also, under each standard, various interface styles are listed, including Type A, Type B, Mini (like Mini - A, Mini - B), Micro (such as Micro - A, Micro - B), and Type - C, demonstrating how different physical interfaces adapt. For instance, USB 3.2 Gen 2×2 mainly utilizes the Type - C interface. In short, through intuitive comparison, it explains the speed and interface differences across USB generations, enabling quick distinction between various USB specifications.

What is USB2.0?

USB2.0, released in April 2000, is the second major version of the USB standard. It brought significant improvements over its predecessor, USB1.1, offering faster data transfer rates and enhanced power delivery. With a maximum data transfer rate of 480 Mbps, USB2.0 became the goto choice for many peripheral devices, including cameras, printers, and external storage.

Benefits of USB2.0

●Compatibility: USB2.0 is widely supported by most computers and devices, ensuring seamless connectivity.

●Speed: With data transfer speeds of up to 480 Mbps, USB2.0 is suitable for most applications, including video streaming and file transfers.

●Power Delivery: USB2.0 can deliver up to 2.5 watts of power, which is sufficient for many devices, including cameras.

Why Choose USB2.0 Cameras?

USB2.0 cameras have carved out a niche for themselves in the market, offering a range of benefits that make them an attractive option for various users. Let's take a closer look at some of the reasons you might choose a USB2.0 camera.

Affordability

One of the most significant advantages of USB2.0 cameras is their affordability. Compared to newer USB standards like USB3.0 or USB2.0 cameras are generally more budgetfriendly, making them an excellent choice for those looking for reliable performance without breaking the bank.

Wide Compatibility

Thanks to their widespread adoption, USB2.0 cameras are compatible with a vast range of devices, including Windows, macOS, and Linux systems. This compatibility ensures that you can easily connect your camera to almost any computer without needing additional drivers or software.

Sufficient for Everyday Use

For most everyday applications, such as video conferencing or casual photography, USB2.0 cameras provide more than enough performance. While they may not offer the same highspeed data transfer rates as newer standards, their capabilities are sufficient for most users' needs.

—— Types of USB2.0 Cameras ——

USB2.0 cameras come in various forms, each designed to meet specific requirements. Let's explore some common types of USB2.0 cameras and their typical use cases.

Webcams

Webcams are perhaps the most wellknown type of USB2.0 camera. These small, affordable devices are perfect for video conferencing, online classes, or chatting with friends and family. Webcams are easy to set up and use, making them an excellent choice for both personal and professional use.

Document Cameras

Document cameras, also known as visual presenters, are used to display documents, books, or objects to a larger audience. These cameras are commonly found in classrooms or business settings, where they facilitate presentations and lectures.

Industrial Cameras

Industrial USB2.0 cameras are designed for use in various industries, such as manufacturing, quality control, and automation. These cameras are typically more robust and durable than consumer-grade models, making them suitable for demanding environments.

Security Cameras

USB2.0 security cameras are used for monitoring and surveillance purposes. These cameras can be easily connected to a computer or network for real-time viewing and recording, providing an affordable and straightforward security solution.

—— Setting Up Your USB2.0 Camera ——

Setting up a USB2.0 camera is a straightforward process that typically involves connecting the camera to your computer and installing any necessary software or drivers. Here's a step-by-step guide to help you get started:

Step 1: Connect the Camera

Begin by plugging the USB2.0 camera into an available USB port on your computer. Ensure the connection is secure, and the camera is powered on.

Step 2: Install Drivers (if needed)

Most USB2.0 cameras are plugandplay, meaning they don't require additional drivers. However, if your camera does need drivers, you can usually find them on the manufacturer's website or included with the camera on a CD.

Step 3: Configure Settings

Once your camera is connected and the drivers are installed, you may need to configure some settings to optimize performance. This may include adjusting the resolution, frame rate, or focus, depending on your specific requirements.

Step 4: Test the Camera

After configuring your settings, test the camera to ensure it's working correctly. Open your preferred video conferencing software or camera app to check the video quality and make any necessary adjustments.

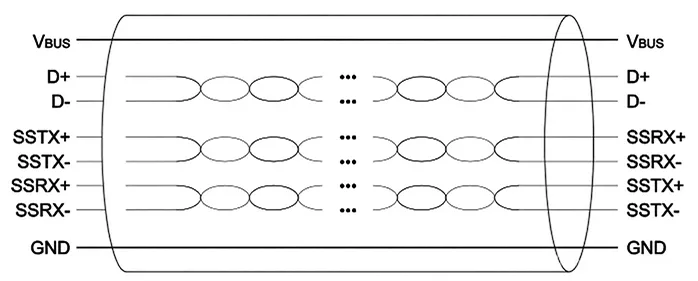

This is a schematic diagram of the internal structure of a USB 3.0 cable, illustrating its wire layout. VBUS serves as the positive power wire, tasked with supplying power to the device and transmitting electricity. D+ and D- are differential data wires compatible with USB 2.0, utilized for data transmission under the traditional USB 2.0 standard to ensure compatibility with older devices. SSTX+, SSTX-, SSRX+, and SSRX- are super - high - speed differential data wires for USB 3.0; SSTX is for sending data, while SSRX is for receiving data. Differential transmission can resist interference, enhance the stability of high - speed transmission, and enable the super - high - speed data transmission of USB 3.0, which is much faster than that of USB 2.0. GND, the ground wire, functions to ground, stabilize voltage, and resist interference, guaranteeing the normal operation of the circuit. In brief, the diagram shows the circuit configuration of the power supply, data compatible with the old standard, super - high - speed new data transmission, and the ground wire in the USB 3.0 cable, supporting power supply and data transmission at different rates.

—— USB2.0 Cameras: Pros and Cons ——

Like any technology, USB2.0 cameras have their strengths and weaknesses. Understanding these can help you make an informed decision when choosing a camera.

Pros

Affordability: USB2.0 cameras are generally less expensive than their USB3.0 or USB-C counterparts.

Compatibility: They are widely compatible with various devices and operating systems.

Sufficient Performance: For most everyday tasks, USB2.0 cameras offer adequate performance.

Cons

Limited Speed: USB2.0's maximum data transfer rate of 480 Mbps may be insufficient for highresolution video or fast data transfers.Potential Compatibility Issues: While USB2.0 is widely supported, some newer devices may only offer USB3.0 or USBC ports.

—— Conclusion ——

USB2.0 cameras offer a reliable, affordable, and widely compatible option for users seeking a straightforward solution for their video and photography needs. Whether you're looking for a webcam for video conferencing, a document camera for presentations, or a security camera for monitoring, USB2.0 cameras provide a versatile and costeffective choice. By understanding the benefits and limitations of USB2.0 technology, you can make an informed decision that best meets your needs.
