Infrared Industrial Cameras, the Optimal Choice for Industrial Vision Systems
The distinctive black, gray, and white tones of infrared imaging interweave to outline the bustling production scene of the industrial pipeline. Heat sources, a blend of dark red and bright white, dance across the frame. Mechanical arms precisely grasp high-temperature metal components. The bright white high-temperature areas at their joints starkly contrast with the surrounding dark gray cool tones, as if narrating the continuous operation under high-intensity workloads. The conveyor belt, like a winding dark river, carries semi-finished products that glow with a grayish-white sheen, moving forward at a steady pace. In the distance, the control console emits a soft orange light, and the figures of the workers appear as blurred gray shadows, attentively monitoring every production process in this technologically charged infrared world. The entire scene is imbued with both the powerful sense of industry and the ordered beauty of precise operation.
—— Industrial Camera SWIR camera infrared wavelength ——
In the world of industrial imaging, technology is constantly evolving. One area that has seen significant advances is the use of Short Wave Infrared (SWIR) cameras. These cameras have become indispensable in many industrial applications due to their ability to capture images in wavelengths beyond what the human eye can see. In this article, we'll delve into what SWIR cameras are, their advantages, and how they are revolutionizing machine vision in industrial settings.
—— What Are SWIR Cameras? ——
SWIR cameras are specialized infrared cameras that operate in the short wave infrared spectrum, typically from 0.9 to 1.7 micrometers. Unlike visible light, which ranges from 0.4 to 0.7 micrometers, SWIR wavelengths can penetrate through certain materials that are opaque in the visible spectrum. This unique capability allows SWIR cameras to "see" things that regular cameras cannot, making them incredibly useful in various industrial applications.
How Do SWIR Cameras Work?
SWIR cameras work by detecting the reflected light from objects in the SWIR spectrum. This is different from thermal cameras, which detect emitted infrared radiation. SWIR cameras need some form of illumination, such as sunlight or artificial lighting, to function effectively. The images captured by SWIR cameras can reveal details that are invisible in standard visible light images, providing a new dimension of information.

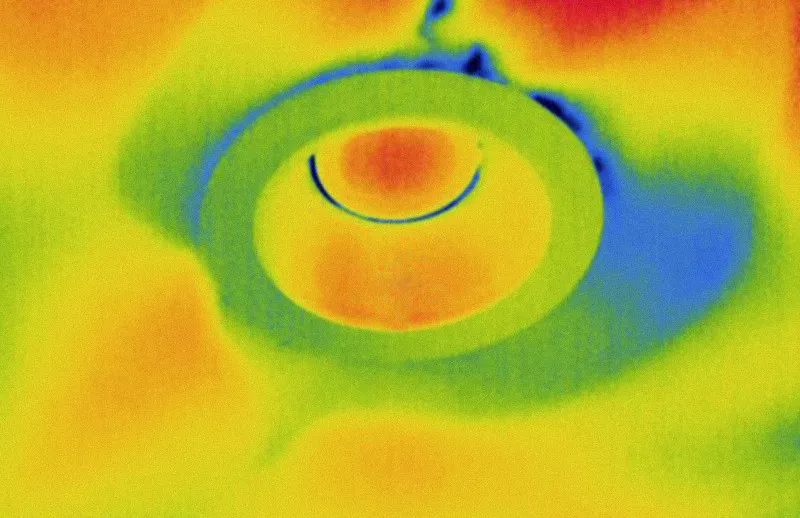

This is a short - wave infrared (SWIR) imaging or thermal imaging graph, which uses colors to represent the distribution of temperature or infrared light intensity. In the image, the red and orange areas represent regions with high temperature or high infrared radiation, while the blue and green areas correspond to regions with low temperature or low infrared radiation, and yellow serves as a transition color. A circular and arc - shaped structure is visible at the center, with a significant color gradient. It may be used to detect the heat distribution, material defects of electronic components, industrial parts, etc., or to identify the internal structure of an object by means of infrared. In scenarios such as industrial defect detection and scientific research analysis of thermal behavior, through the visualization of invisible light and heat, it helps to judge the equipment status and material properties.
Advantages of SWIR Cameras in Industry
The benefits of using SWIR cameras in industrial settings are numerous. Here are some of the key advantages:
Enhanced Material Inspection
One of the primary uses of SWIR cameras is in material inspection. Since SWIR wavelengths can penetrate materials like plastics, silicon, and even some fabrics, these cameras can be used to inspect the internal structures of products. This capability is vital in quality control processes, where detecting defects that are not visible to the naked eye can prevent costly production errors.
Improved Imaging in Challenging Conditions
SWIR cameras are highly effective in environments where visibility is low, such as fog, smoke, or dust. This makes them ideal for industries like mining, where visibility challenges are common. By providing clear images in these conditions, SWIR cameras enhance safety and operational efficiency.
Non-Destructive Testing
SWIR cameras are used in nondestructive testing (NDT) methods. They allow inspectors to view beneath the surface of materials without causing any damage. This is particularly useful in aerospace and automotive industries, where structural integrity is critical.
—— SWIR Cameras in Machine Vision ——
Machine vision systems are increasingly incorporating SWIR cameras to improve accuracy and reliability. Let's explore how these cameras are being used in different industrial applications:
Agricultural Sorting
In agriculture, SWIR cameras are used in sorting systems to differentiate between crops based on their moisture content or ripeness. The cameras can identify subtle differences that are not visible in the visible spectrum, ensuring that only the best produce reaches the market.
Semiconductor Inspection
The semiconductor industry relies on SWIR cameras for inspecting wafers and detecting defects. The cameras can see through silicon, allowing for detailed inspection without interfering with the production process.
Surveillance and Security
In the security sector, SWIR cameras enhance surveillance capabilities, particularly in lowlight conditions. They can capture clear images without the need for additional lighting, reducing the risk of detection and providing a stealthy monitoring solution.
—— Choosing the Right SWIR Camera ——
When selecting a SWIR camera for industrial use, several factors should be considered:

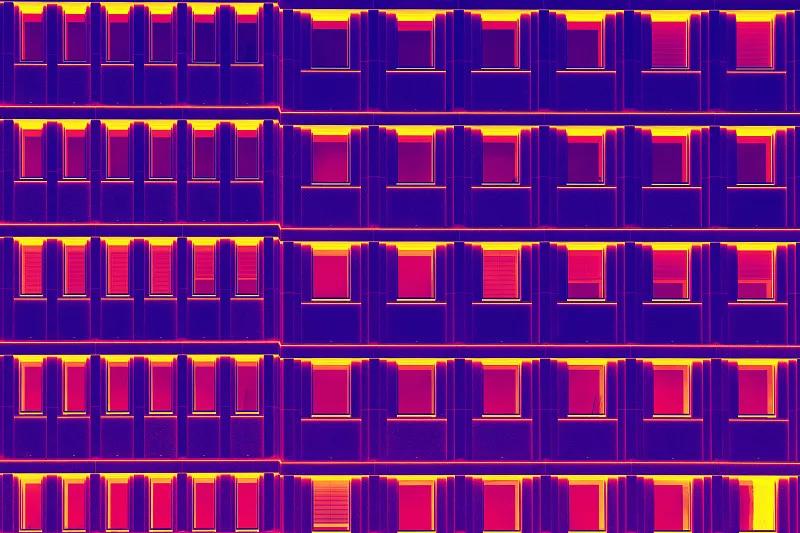

If the goal is to detect a building’s energy efficiency (such as the thermal insulation of doors, windows, and heat leakage), when choosing a camera, attention should be paid to wavelength adaptability—it needs to cover the long - wave infrared (8–14μm) commonly used in building heat detection to accurately capture heat radiation. The spatial resolution must be sufficient. Just like in the image, where the thermal differences between doors, windows, and walls are clearly distinguished, a low resolution can easily blur details and make it difficult to locate heat leakage points. The temperature measurement range should match the building scenario (generally around - 20℃ to 50℃) to ensure accurate data. Also, consider the environmental adaptability to handle different weather and lighting conditions and stably output thermal images. Meanwhile, for long - term monitoring, the camera’s data storage and transmission functions and its integration compatibility with the building energy efficiency management system should also be factored into the selection, enabling the infrared camera to effectively support building energy - saving detection and analysis.
Wavelength Range
The wavelength range of the SWIR camera is a critical factor. Depending on the application, different ranges may be more suitable. For example, a broader range may be necessary for applications requiring detailed spectral analysis.
Integration with Existing Systems
It's important to consider how the SWIR camera will integrate with existing machine vision systems. Compatibility with current software and hardware will ensure a smooth transition and efficient operation.
Resolution and Sensitivity
The resolution and sensitivity of the camera will affect the quality of the images captured. Higher resolution cameras provide more detailed images, while greater sensitivity ensures better performance in low-light conditions.
Detector Types
Cooled detectors provide higher sensitivity and superior image quality, making them ideal for research and high-end semiconductor applications. However, they tend to be more expensive and bulkier. In contrast, uncooled detectors are more cost-effective and compact, suitable for industrial sorting and security applications where extreme performance isn't required.
—— Future of SWIR Cameras in Industry ——
The future of SWIR cameras in industrial applications looks promising. As technology advances, these cameras are becoming more affordable and accessible, making them viable for a broader range of industries. Innovations in sensor technology and image processing are expected to enhance the capabilities of SWIR cameras further, opening up new possibilities for their use.
Potential Developments
Potential developments in SWIR technology include improvements in miniaturization, making portable SWIR cameras a reality. This would expand their use in field applications and mobile inspections. Additionally, advancements in artificial intelligence and machine learning could lead to smarter SWIR systems capable of real-time analysis and decision-making.
Expanding Applications
As industries continue to recognize the value of SWIR cameras, their applications are likely to expand. From medical imaging to environmental monitoring, the versatility of SWIR technology ensures its relevance across multiple sectors.
—— Conclusion ——

SWIR cameras are transforming the landscape of industrial imaging. With their ability to capture images beyond the visible spectrum, they provide invaluable insights into processes and materials. From improving quality control to enhancing safety, SWIR cameras are an essential tool for modern industry. As technology continues to evolve, we can expect SWIR cameras to play an even more significant role in the future of industrial imaging.

By understanding the capabilities and applications of SWIR cameras, businesses can leverage this technology to gain a competitive edge and drive innovation in their operations.
